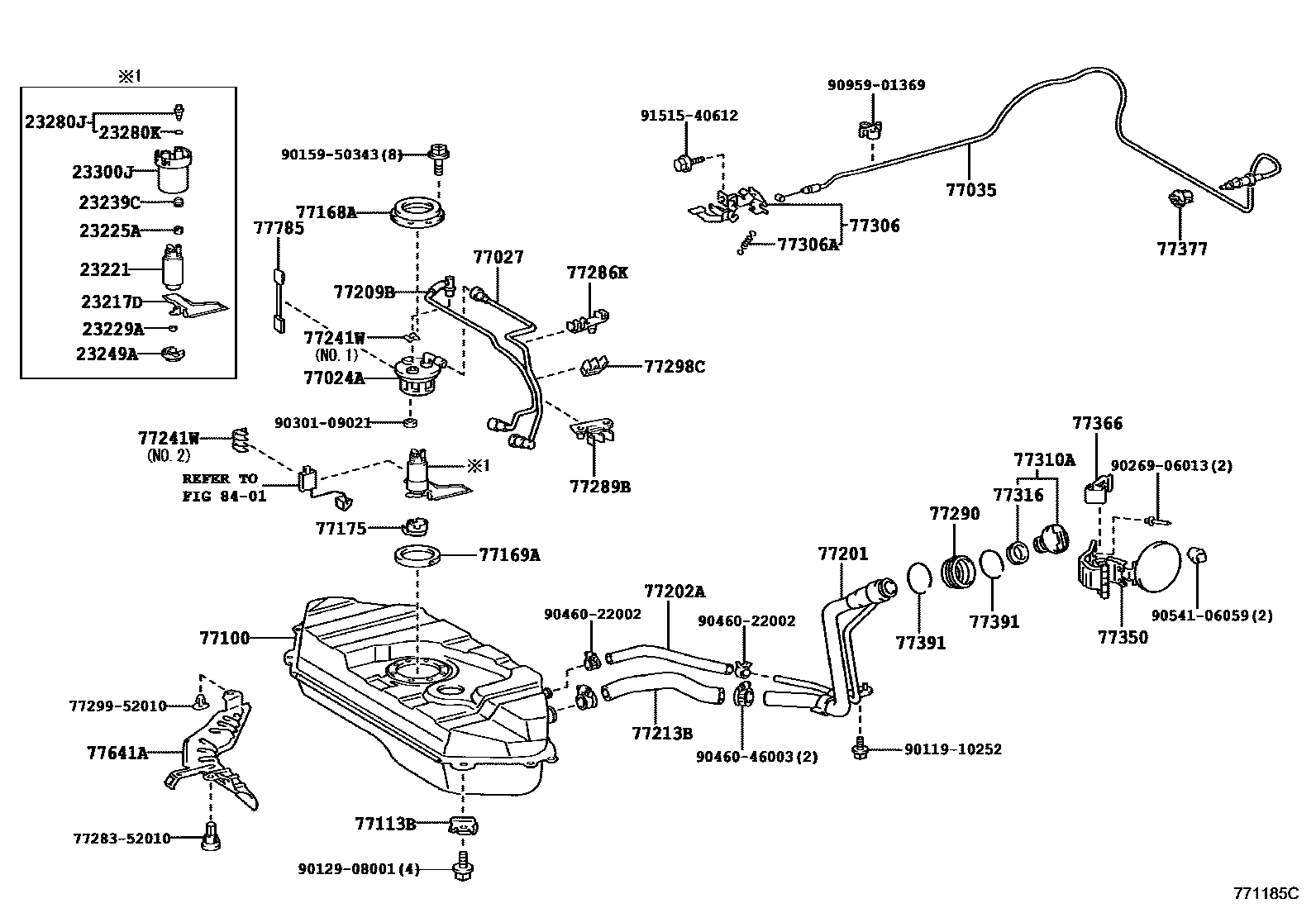

FUEL TANK & TUBE

0001 1��-�� ��� 0002 1��-�� ��� 0003 1��-�� ��-��

23217DFILTER, FUEL PUMP

main23217-0D090i2NZFE..NCP70200412-200507

main23217-23010i2NZFE..NCP70200209-200412

main23217-76040i1NZFE..NCP75200209-200507

sub23217-46090

23221PUMP, FUEL

main23221-21020i1NZFE..NCP75200209

main23221-22030i2NZFE..NCP70200209

sub23221-22140

23225ASPACER, FUEL PUMP

main23225-21010i2NZFE..NCP70200209-200507

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i1NZFE..NCP75200209

main23229-16020i2NZFE..NCP70200209

sub23229-16010

23239CSEAL, FUEL PUMP FILTER

main23239-21010i2NZFE..NCP70200209-200507

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-46180i1NZFE..NCP75200209-200507

main23249-74610i2NZFE..NCP70200209-200507

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-22010i2NZFE..NCP70200209-200507

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i2NZFE..NCP70200209

23300JFILTER ASSY, FUEL

main23300-21010i1NZFE..NCP75200209-200507

main23300-23040i2NZFE..NCP70200209-200507

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-52010iNCP75200209

main77024-52020iNCP70200209

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-52020iNCP70200209

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-52130iNCP7#200209

77100TANK ASSY, FUEL

main77001-52010iNCP75200209

sub77001-52220

main77001-52030iNCP70200209

sub77001-52090

77113BPLATE, FUEL TANK SIDE

main77113-52010iNCP70200209

main77113-52020iNCP75200209

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iNCP75200209

main77168-52010iNCP70200209

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iNCP7#200209

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30050iNCP75200209

main77175-52020iNCP70200209

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-52120iNCP70200209

sub77201-52121

main77201-52130iNCP75200209

sub77201-52131

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77269-52010iNCP75200209

main77269-52020iNCP70200209

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-52010iNCP75200209

main77209-52020iNCP70200209

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-52010iNCP70200209

main77213-52030iNCP75200209

77241WCLIP, TUBE JOINT

main77241-32060iNCP70200209

main77241-33011iNCP75200209

main77241-52010iNCP70200209

77286KCLAMP, FUEL TUBE, NO.2

main77286-52020iNCP70200209

77289BCLAMP, FUEL TUBE, NO.3

main77289-52010iNCP7#200209

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12190iNCP7#200209

77298CCLAMP, FUEL TUBE, NO.4

main77298-52020iNCP70200209

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-13020iNCP7#200209

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iNCP7#200209

77310ACAP ASSY, FUEL TANK

main77310-48010iNCP7#200209

77316GASKET, FUEL TANK CAP

main77316-16010iNCP7#200209

77350LID ASSY, FUEL FILLER OPENING

main77350-52100iNCP7#200209-200507

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iNCP7#200209

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-52010iNCP7#200209

77391RING, FUEL INLET BOX

main77391-12020iNCP7#200209

77641APROTECTOR, FUEL TANK, NO.1

main77631-52010iNCP70200209

main77641-52010iNCP75200209

77785HARNESS, FUEL PUMP

main77785-32010iNCP70200209

main77785-52020iNCP75200209

8401

7728352010BRACKET, FUEL TUBE

main77283-52010

7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5

main77299-52010

9011910252

main90119-10252

9012908001

main90129-08001

9015950343

main90159-50343

9026906013

main90269-06013

9030109021

main90301-09021

9046022002

main90460-22002

9046046003

main90460-46003

9054106059

main90541-06059

9095901369

main90959-01369

9151540612

main91515-40612

49 parts on this diagram · 3 diagrams in section
