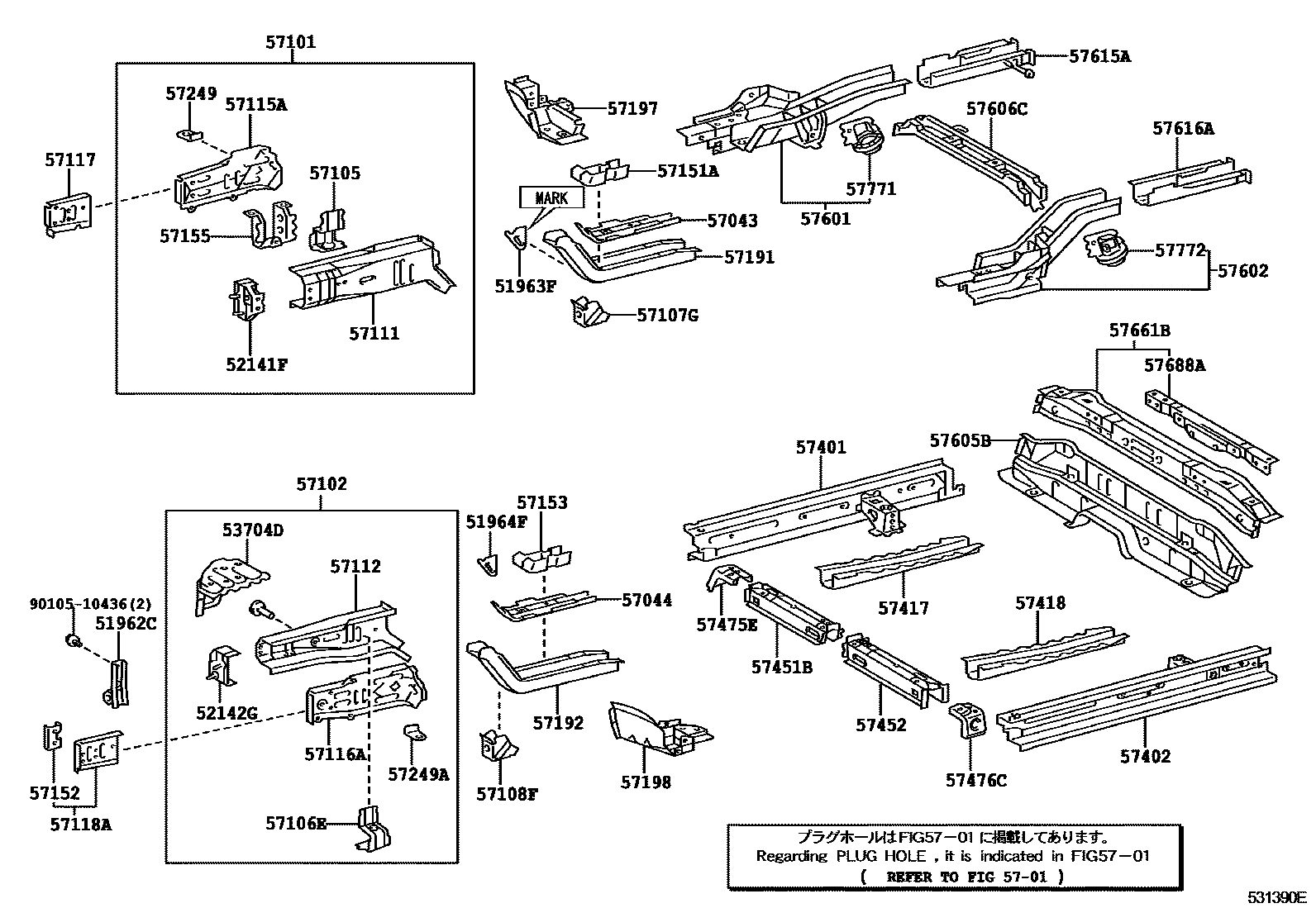

FLOOR SIDE MEMBER

0001 1 0002 1

51962CRETAINER, FRONT HOOK

main51962-52010iNCP7#200209-200507

51963FHOOK, TRANSPORT

main51963-52020iNCP7#200305

main51963-52030iNCP7#200209

51964FHOOK, TRANSPORT, LH

main51963-52030iNCP7#200209

52141FARM, FRONT BUMPER, RH

main52141-52020iNCP7#200209

52142GARM, FRONT BUMPER, LH

main52142-52010iNCP7#200209

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-52010iNCP7#200209

5701HOLE PLUG

→ Go to FIG 57-01

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52010iNCP7#200209

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52020iNCP7#200209

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-52906iNCP7#200209-200507

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-52912iNCP7#200209-200507

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-52010iNCP7#200209

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57105-52010iNCP7#200209

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-52020iNCP7#200209

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-52020iNCP7#200209

57111MEMBER, FRONT SIDE, RH

main57111-52010iNCP7#200209

57112MEMBER, FRONT SIDE, LH

main57112-52010iNCP7#200209

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-52010iNCP7#200209

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-52040iNCP7#200209

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-52020iNCP7#200209

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57202-52010iNCP7#200209

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-52010iNCP7#200209

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-52010iNCP7#200209

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-52010iNCP7#200209

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-52011iNCP7#200209-200412

main57155-52012iNCP7#200412

57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH

main57191-52900iNCP7#200209-200309

57192PLATE, FRONT SIDE MEMBER, OUTER REAR LH

main57192-52011iNCP7#200209

57197BOX, TORQUE, FRONT RH

main57077-52030iNCP7#200209

57198BOX, TORQUE, FRONT LH

main57078-52030iNCP7#200209

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iNCP7#200209

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iNCP7#200209

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-52080iNCP7#200209-200507

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-52090iNCP7#200209-200507

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-52011iNCP70200209

main57417-52021×2iNCP75200209

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-52011iNCP70200209

main57417-52021×2iNCP75200209

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-52060iNCP70200209

main57451-52901iNCP75200209

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-52100iNCP70200209

main57452-52901iNCP75200209

57475EPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-52010iNCP7#200209

57476CPLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-52010iNCP7#200209

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52911iNCP75200209-200506

main57601-52914iNCP70200209-200507

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52912iNCP75200209-200506

main57602-52915iNCP70200209-200507

main57602-52928iNCP75200506-200507

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52010iNCP70200209

main57605-52040iNCP75200209

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52020iNCP75200209

main57606-52070iNCP70200209

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-52901iNCP75200209-200506

main57801-52010iNCP70200209-200507

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-52906iNCP75200209-200507

main57802-52010iNCP70200209-200507

57661BMEMBER, REAR FLOOR CROSS, FRONT

main58202-52030iNCP70200209

57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57688-52010iNCP70200209

main57688-52020iNCP75200209

57771PLATE, REAR SPRING, RH

main51301-52020iNCP70200209

57772PLATE, REAR SPRING, LH

main51302-52020iNCP70200209

9010510436

main90105-10436

50 parts on this diagram · 2 diagrams in section
