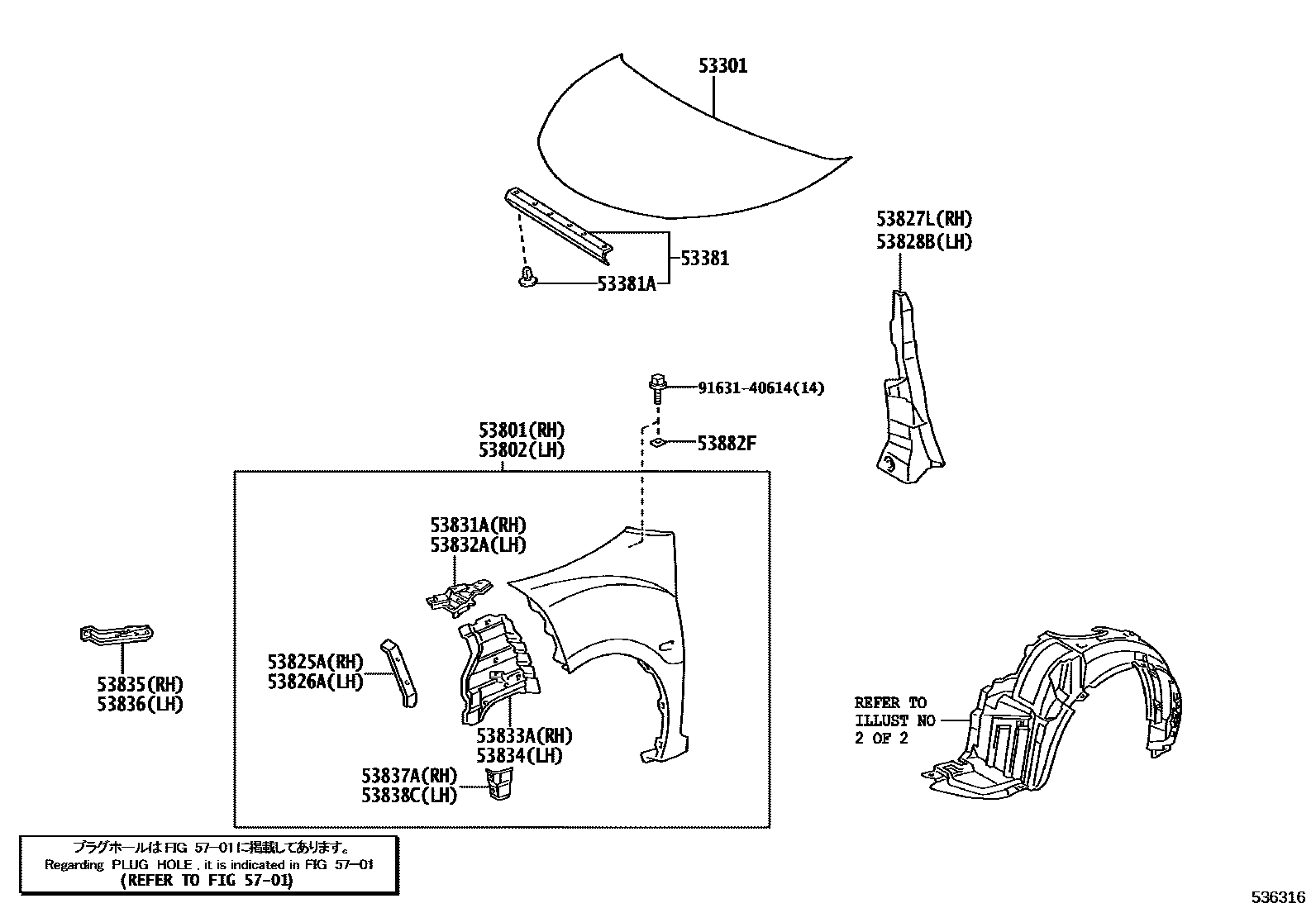

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-52120iNCP7#200209-200507

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP7#200209

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6iNCP7#200209

53801FENDER SUB-ASSY, FRONT RH

main53801-52020iNCP7#200209-200507

53802FENDER SUB-ASSY, FRONT LH

main53802-52020iNCP7#200209-200507

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-52010iNCP7#200209

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-52010iNCP7#200209

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52080iNCP7#200209

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52080iNCP7#200209

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-52030iNCP7#200209

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-52030iNCP7#200209

53833APANEL, FRONT FENDER SIDE, LOWER RH

main53833-52010iNCP7#200209

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53834-52030iNCP7#200209

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-52010iNCP7#200209

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53836-52010iNCP7#200209

53837ABRACKET, FRONT SIDE PANEL, NO.2

main53837-52010iNCP7#200209

53838CBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-52010iNCP7#200209

53882FSEAL, FRONT FENDER

main53882-16030×4iNCP7#200209

5701HOLE PLUG

→ Go to FIG 57-01

9163140614

main91631-40614

20 parts on this diagram · 2 diagrams in section
