RADIATOR GRILLE

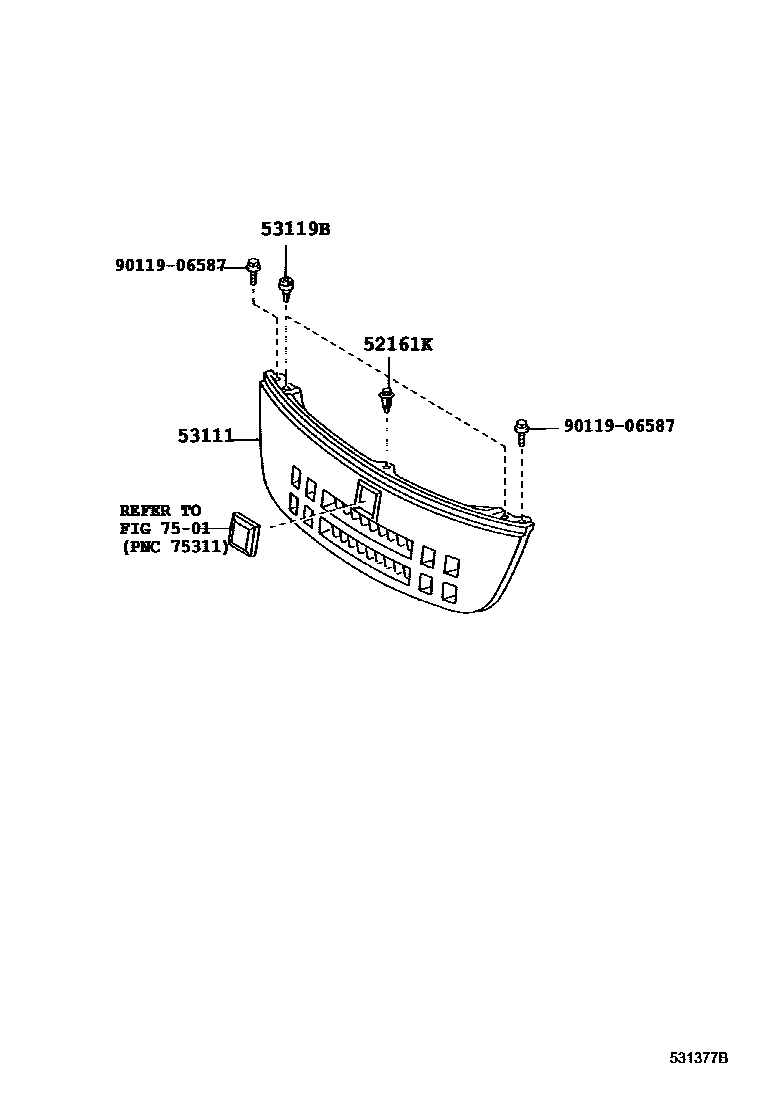

Parts diagram

52161KPIECE, FRONT BUMPER

main52161-16010i200209-200507

53111GRILLE, RADIATOR

main53111-52220i200209-200507

53119BPROTECTOR, RADIATOR GRILLE

main53119-12150×2i200209-200507

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9011906587

main90119-06587

5 parts on this diagram · 1 diagram in section
