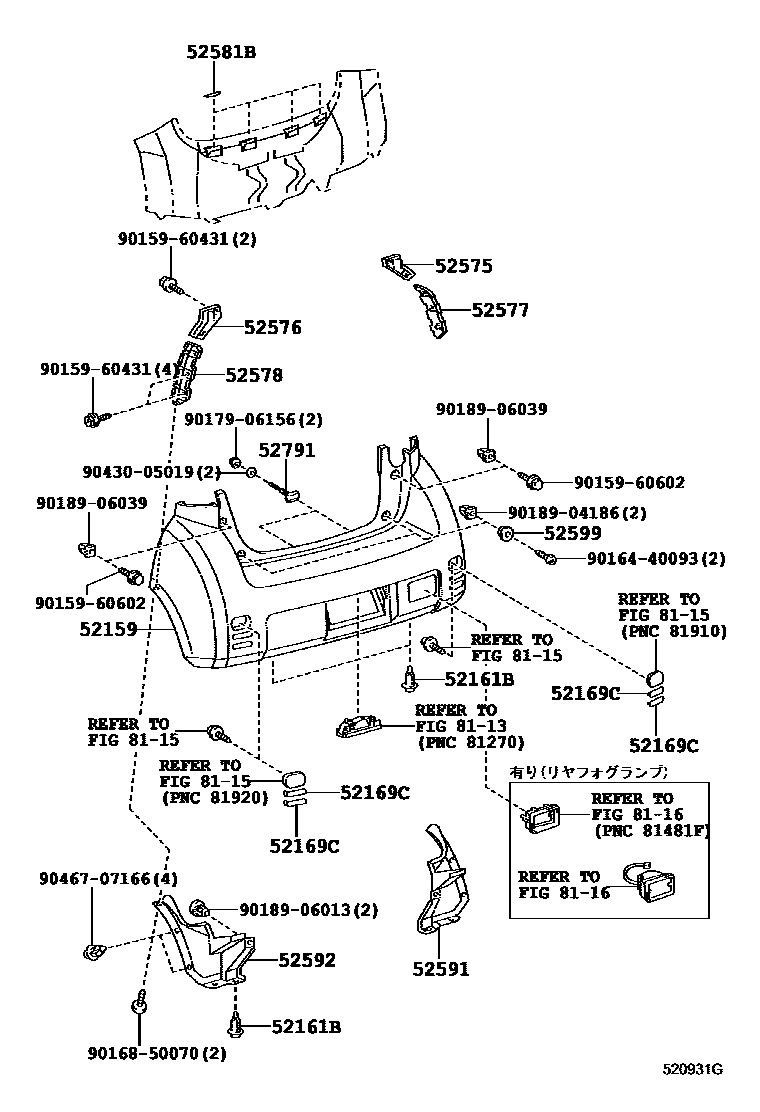

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-52410-A0supersedes 52159-52400-A0iNCP7#200209-200507

main52159-52410-D0supersedes 52159-52400-D0iNCP7#200209-200507

main52159-52410-E0supersedes 52159-52400-E0iNCP7#200308-200507

main52159-52410-F0supersedes 52159-52400-F0iNCP7#200209-200507

main52159-52410-G0supersedes 52159-52400-G0iNCP7#200209-200308

main52159-52410-H0supersedes 52159-52400-H0iNCP7#200209-200507

main52159-52410-J0supersedes 52159-52400-J0iNCP7#200209-200507

main52159-52410-J1supersedes 52159-52400-J1iNCP7#200209-200507

52161BPIECE, REAR BUMPER

main52161-16010×4iNCP7#200209-200507

52169CCOVER, REAR BUMPER, LOWER

main52169-52060×4iNCP7#200209

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52080iNCP7#200209

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52060iNCP7#200209

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-52020iNCP7#200209

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-52020iNCP7#200209

52581BPROTECTOR, REAR BUMPER

main52581-12120×4iNCP7#200209

52591SEAL, REAR BUMPER SIDE, RH

main52591-52110iNCP7#200209

52592SEAL, REAR BUMPER SIDE, LH

main52592-52100iNCP7#200209

52599STOPPER, REAR BUMPER, UPPER

main52599-48010×2iNCP7#200209

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040×2iNCP7#200209

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

9015960431

main90159-60431

9015960602

main90159-60602

9016440093

main90164-40093

9016850070

main90168-50070

9017906156

main90179-06156

9018904186

main90189-04186

9018906013

main90189-06013

9018906039

main90189-06039

9043005019

main90430-05019

9046707166

main90467-07166

25 parts on this diagram · 1 diagram in section
