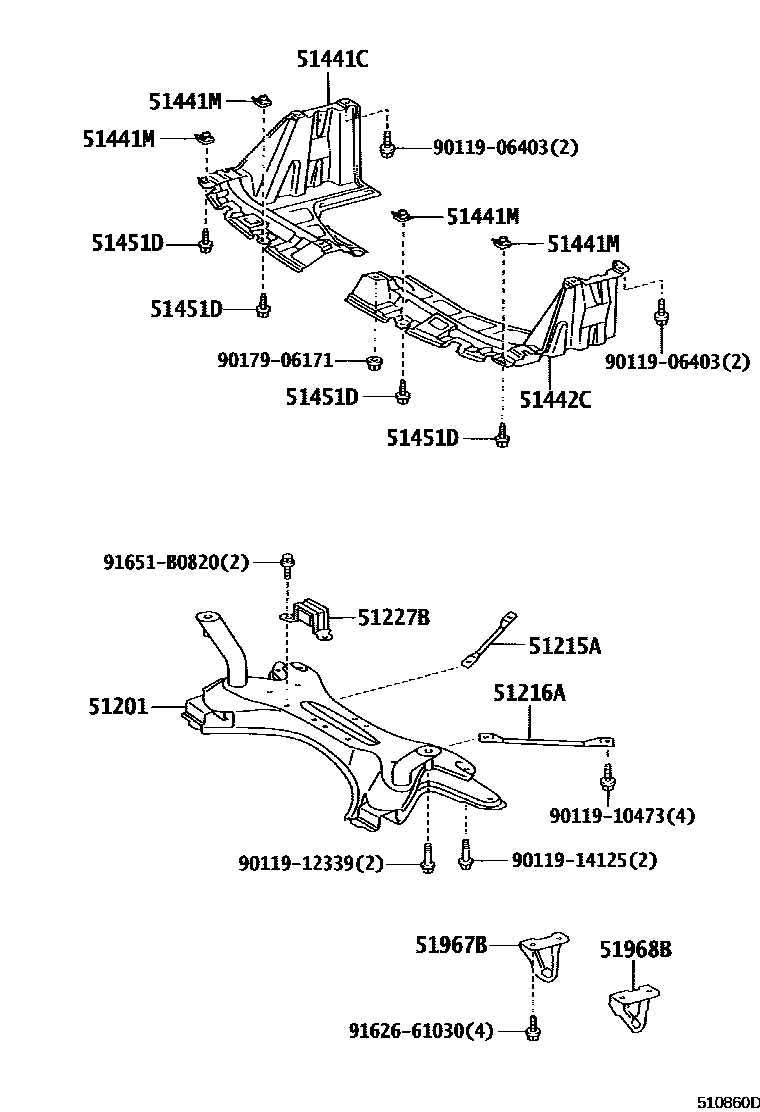

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52013iNCP70200209-200305

main51201-52014iNCP70200305

main51201-52022iNCP75200209-200305

main51201-52023iNCP75200305

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-52030iNCP70200209

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-52030iNCP70200209

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-52030iNCP70200209

51441CCOVER, ENGINE UNDER, RH

main51441-52010iNCP7#200209

51441MNUT

main90179-05060×4iNCP7#200209-200507

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNCP7#200209

51451DSCREW, NO.1

main90159-50346×4iNCP7#200209-200507

51967BHOOK, TRANSPORT, REAR RH

main51967-10100iNCP70200209

main51967-52010iNCP75200209

51968BHOOK, TRANSPORT, REAR LH

main51967-10090iNCP70200209

main51968-52020iNCP75200209

9011906403

main90119-06403

9011910473

main90119-10473

9011912339

main90119-12339

9011914125

main90119-14125

9017906171

main90179-06171

9162661030

main91626-61030

91651B0820

main91651-B0820

17 parts on this diagram · 2 diagrams in section
