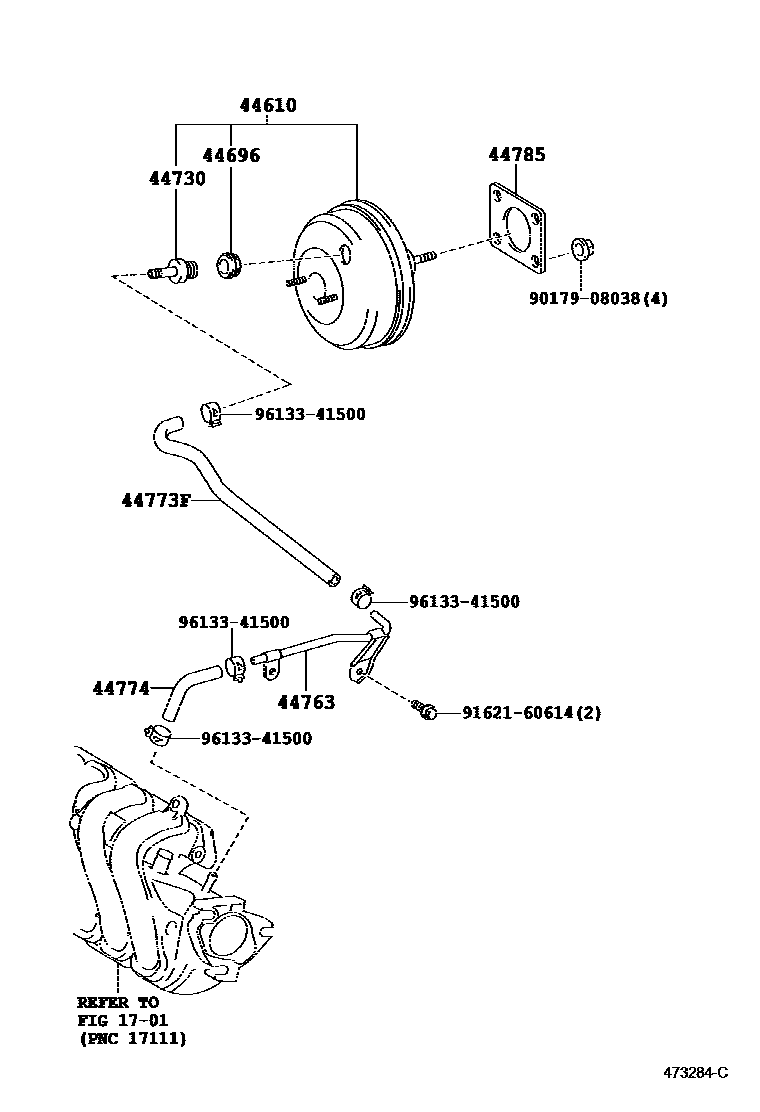

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-52190iNCP7#200209-200410

main44610-52191iNCP7#200411-200507

44696GROMMET, CHECK VALVE

main90480-24439iNCP7#200209

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP7#200209-200507

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP7#200209

44773FHOSE, UNION TO CHECK VALVE

main44773-52080iNCP7#200209

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP7#200209

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP7#200209

9017908038

main90179-08038

9162160614

main91621-60614

9613341500

main96133-41500

11 parts on this diagram · 1 diagram in section
