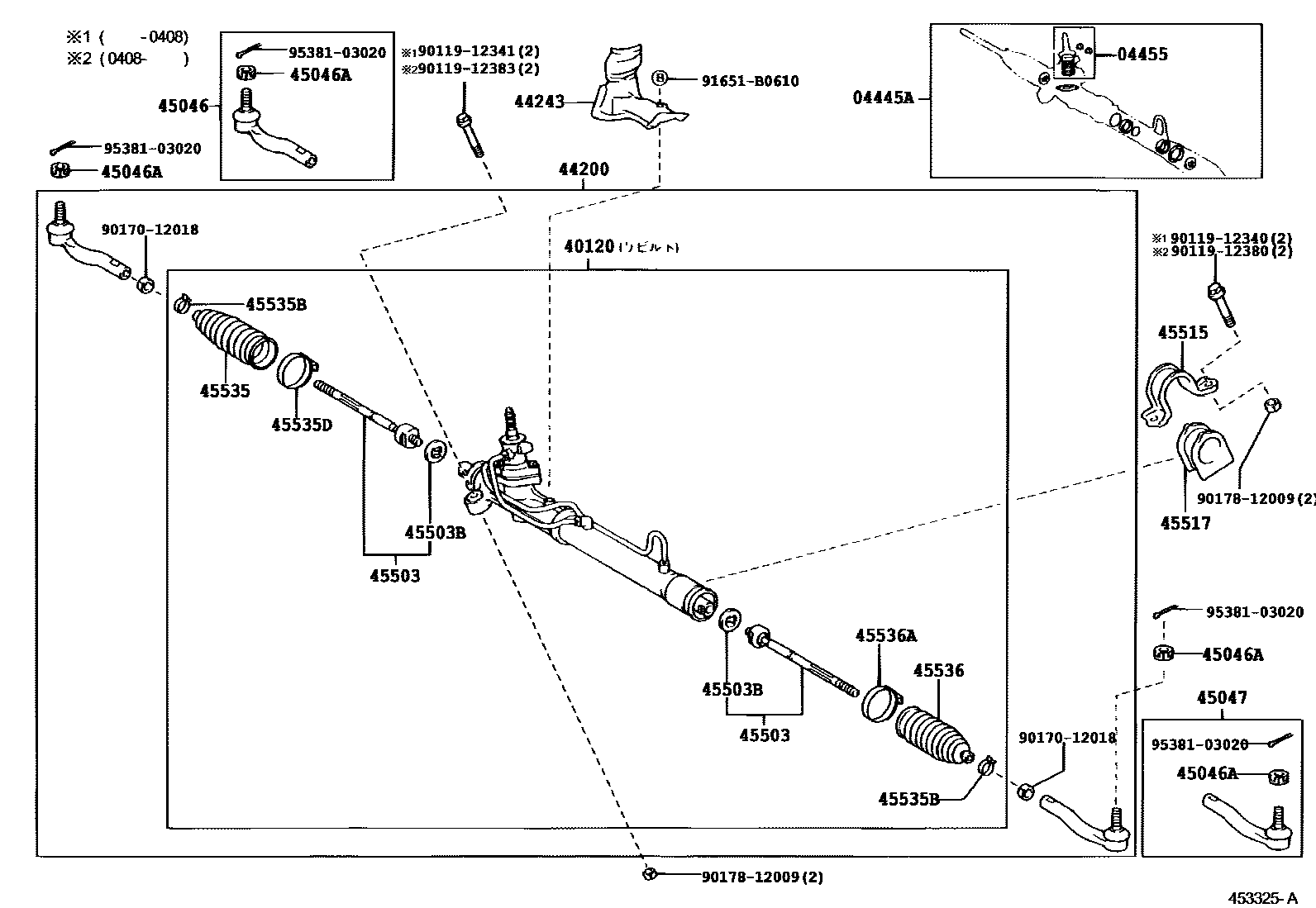

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-52010iNCP75200209

main04445-52020iNCP70200209

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-52010iNCP70200209

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-52030iNCP75200209-200311

main40120-52052iNCP70200209-200311

main40120-52100iNCP70200311-200507

44200LINK ASSY, POWER STEERING

main44200-52030iNCP75200209-200507

main44200-52130iNCP70200209-200507

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-52032iNCP70200209

45046END SUB-ASSY, TIE ROD, RH

main45046-59026iNCP70200209-200507

main45047-59026iNCP75200209-200507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNCP7#200209

45047END SUB-ASSY, TIE ROD, LH

main45046-59026iNCP75200209-200507

main45047-59026iNCP70200209-200507

45503END SUB-ASSY, STEERING RACK

main45503-52010×2iNCP75200209-200507

main45503-59045×2iNCP70200209-200507

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14010×2iNCP70200209

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-52010iNCP70200209

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-52010iNCP70200209

45535BOOT, STEERING RACK, NO.1

main45535-52010iNCP75200209

main45535-52040iNCP70200209

45535BCLIP(FOR STEERING RACK BOOT)

main90466-17002×2iNCP70200209

main90467-17021×2iNCP75200209

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iNCP70200209

main90460-58008iNCP75200209

45536BOOT, STEERING RACK, NO.2

main45535-52010iNCP75200209

main45535-52040iNCP70200209

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iNCP70200209

main90460-58008iNCP75200209

9011912340

main90119-12340

9011912341

main90119-12341

9011912380

main90119-12380

9011912383

main90119-12383

9017012018

main90170-12018

9017812009

main90178-12009

91651B0610

main91651-B0610

9538103020

main95381-03020

25 parts on this diagram · 2 diagrams in section
