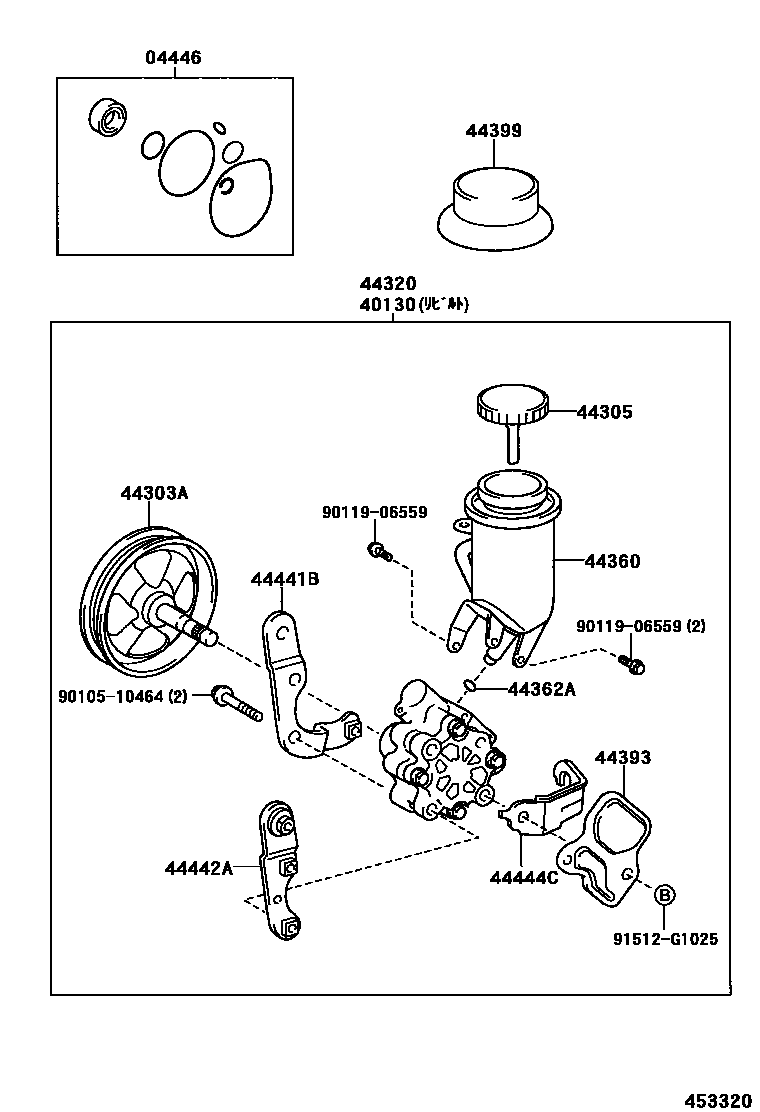

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iNCP7#200209-200507

40130PUMP ASSY,VANE REBUILT

main40130-52020iNCP70200209-200311

main40130-52030iNCP75200209-200507

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-52020iNCP7#200209

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-50010iNCP7#200209

44320PUMP ASSY, VANE

main44310-52020iNCP70200209-200507

main44310-52030iNCP75200209-200507

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-52020iNCP7#200209

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90301-11020iNCP7#200209

44393INSULATOR, POWER STEERING PUMP HEAT

main44393-52010iNCP7#200209

44399COVER, VANE PUMP OIL RESERVOIR

main44399-52010iNCP7#200209

44441BBRACKET, PUMP, FRONT

main44441-52010iNCP7#200209

44442ABRACKET, VANE PUMP, REAR

main44442-52020iNCP7#200209

44444CSTAY, VANE PUMP, REAR

main44444-52010iNCP70200209

main44444-52020iNCP75200209

9010510464

main90105-10464

9011906559

main90119-06559

91512G1025

main91512-G1025

15 parts on this diagram · 1 diagram in section
