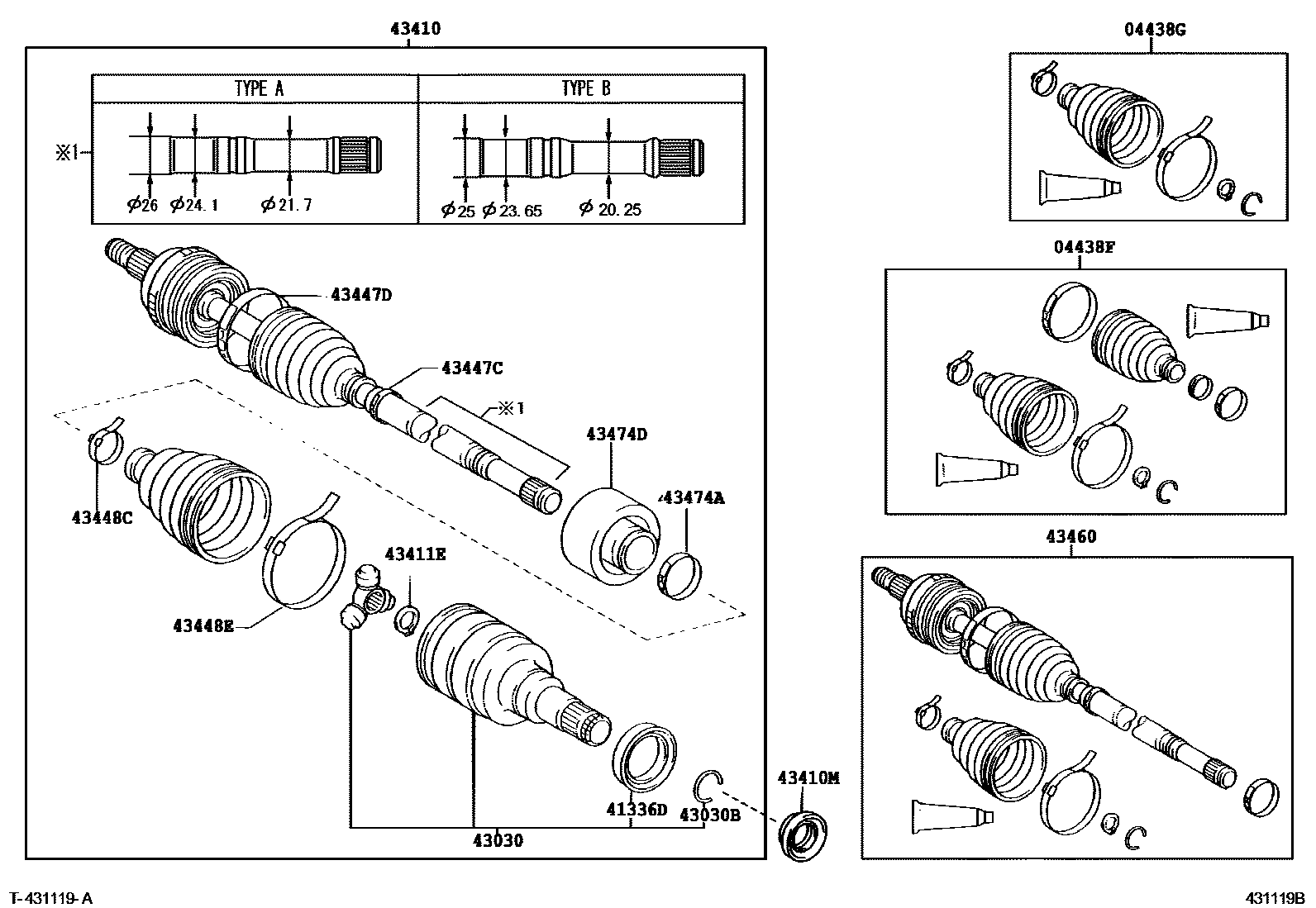

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52170i200209-200507

main04427-52260i200209-200507

main04427-52310i200505-200507

main04427-52540i200209-200505

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52140i200505-200507

main04438-16101i200209-200505

main04438-52030i200209-200505

main04438-52230i200209-200507

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010×2i200209

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-52010i200209

main43403-10011i200209

main43403-16020i200209

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004×2i200209

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52030i200209-200312

main43410-52031i200312

main43410-52070i200209

main43410-52130i200209

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023i200209-200507

main90316-28003i200209-200507

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-16020i200209

main90520-22001i200209

main90520-22005i200209

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16170i200209

main42345-52110i200209

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52100i200209

main42345-52180i200209

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16140i200209

main90949-01078i200209

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160i200209

main42345-16150i200209

main90949-01146i200209

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59045i200209-200312

main43460-59076i200209-200312

main43460-59125i200209-200312

main43460-59195i200312-200505

main43460-59215i200312-200505

main43460-59345i200505-200507

main43460-59365i200505-200507

main43460-59485i200505-200507

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010i200209

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030i200209

main43474-52040i200209

main43474-52050i200312

15 parts on this diagram · 4 diagrams in section
