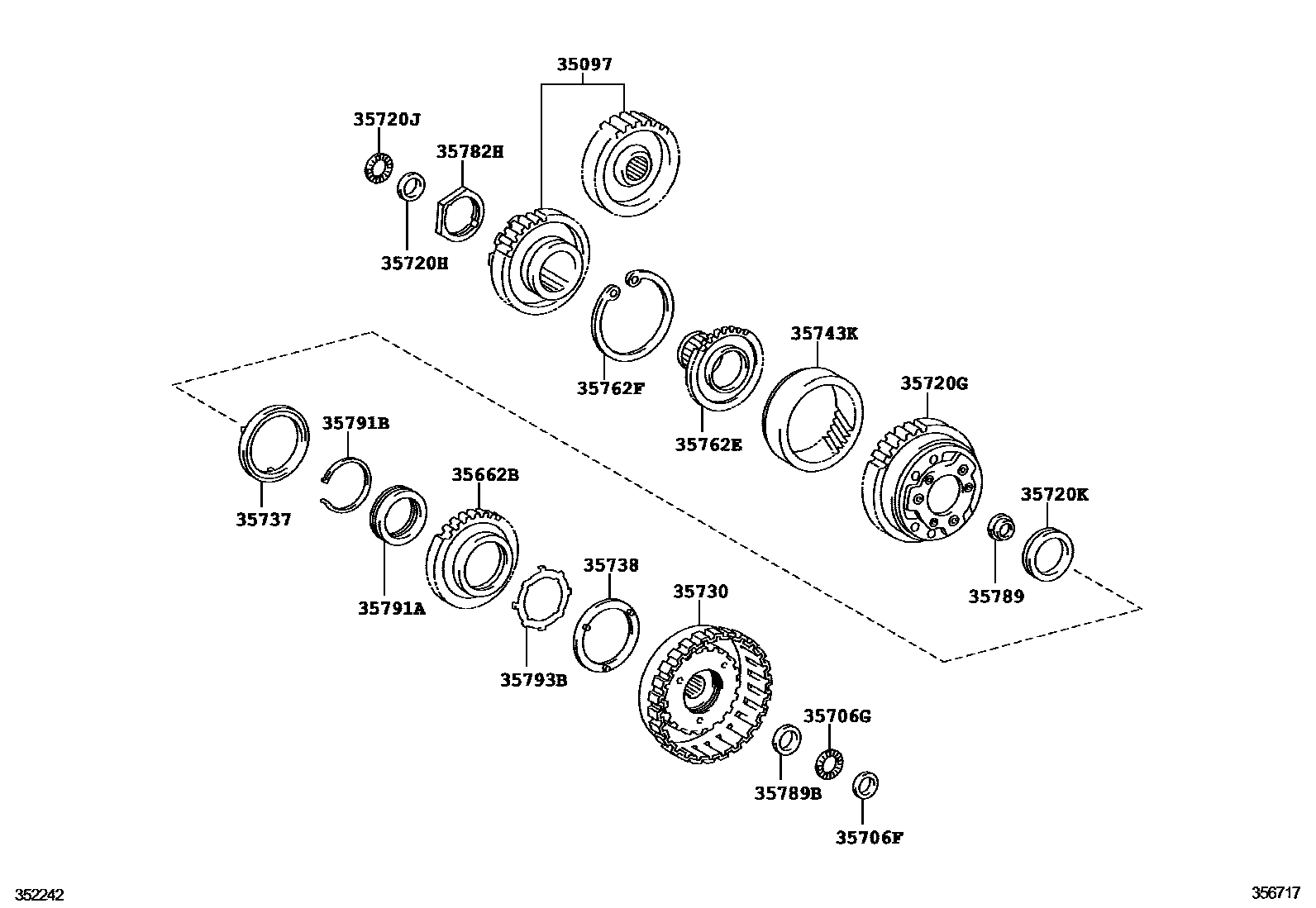

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U441E 0002 1U340F

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-52011iNCP70200209-200507

35662BHUB, 2ND BRAKE

main35662-52010iNCP70200209

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-52050iNCP70200209

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-18004iNCP70200209

35720GGEAR ASSY, PLANETARY

main35720-52010iNCP70200209-200507

main35720-52020iNCP75200209-200507

35720HRACE, THRUST BEARING(FOR PLANETARY GEAR)

main35789-52010iNCP70200209

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-17001iNCP70200209

main90374-33006iNCP75200209

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-33007iNCP75200209

main90374-42006iNCP70200209

35730GEAR ASSY, REAR PLANETARY SUN

main35730-52010iNCP70200209

main35730-52020iNCP75200209

35737WASHER, PLANETARY CARRIER THRUST

main35737-52010iNCP70200209

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-52020iNCP70200209

35743KGEAR, PLANETARY RING

main35743-52010iNCP70200209

35762EFLANGE, PLANETARY RING GEAR

main35762-52010iNCP70200209

35762FRING, HOLE SNAP(FOR PLANETARY RING GEAR)

main90520-89003iNCP70200209

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-40009iNCP75200209

main90179-44001iNCP70200209

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-52020iNCP70200209

35789BRACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE REAR)

main35789-52040iNCP70200209

35791ACLUTCH, 1 WAY, NO.1

main35791-52010iNCP70200209

35791BRING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90520-69003iNCP70200209

35793BRETAINER, 1 WAY CLUTCH

main35793-52010iNCP70200209

20 parts on this diagram · 2 diagrams in section
