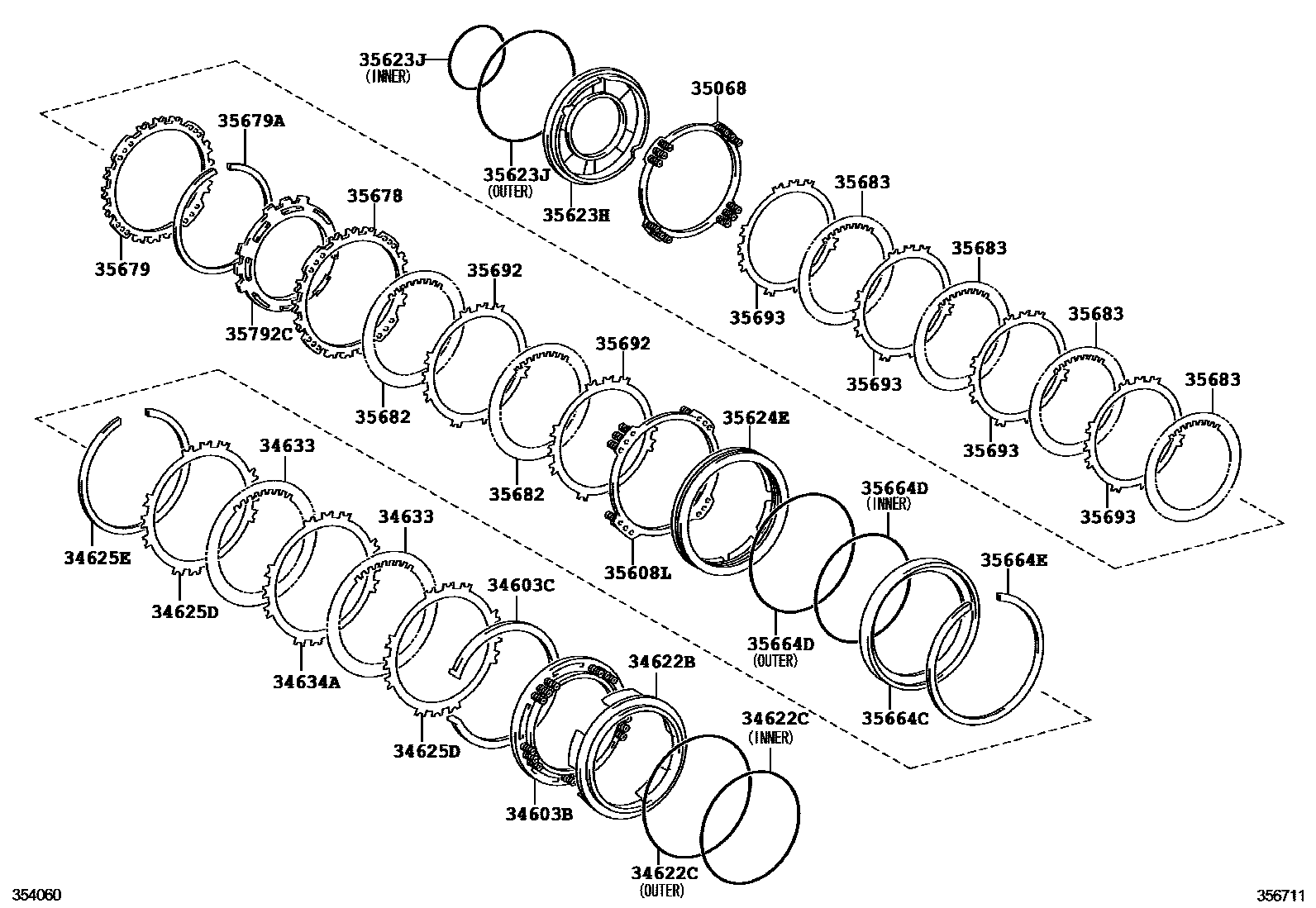

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U441E 0002 1U340F

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-52010200209

main34603-52020200209

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99047200209

main90520-99055200209

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-52010200209

main34622-52021200209

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-99113200209-200507

main90301-99115200209-200507

main90301-99121200209-200507

main90301-99122200209-200507

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52010200209-200507

main34625-52020200209-200507

main34625-52030200209-200507

main34625-52040200209-200507

main34625-52050200209-200507

main34625-52071200209-200507

main34625-52081200209-200507

main34625-52091200209-200507

main34625-52100200209-200507

main34625-52110200209-200507

34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)

main90520-99046200209-200507

main90520-99050200209-200507

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-52020200209

main34633-52030200209

34634APLATE, 2ND COAST & OVERDRIVE BRAKE

main34634-52010200209

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-52020200209

main35068-52030200209

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-52010200209

main35608-52020200209

35623HPISTON, 1ST & REVERSE BRAKE

main35623-52020200209

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-97001200209-200507

main90301-99113200209-200507

35624EPISTON, 2ND BRAKE

main35624-52010200209

main35624-52020200209

35664CCYLINDER, 2ND BRAKE

main35664-52010200209

main35664-52020200209

35664DRING, O(FOR 2ND BRAKE CYLINDER)

main90301-99114200209-200507

main90301-99116200209-200507

main90301-99118200209-200507

main90301-99119200209-200507

35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)

main90520-99046200209-200507

main90520-99050200209-200507

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-52010200209

main35678-52020200209

main35678-52030200209

main35678-52040200209

main35678-52050200209

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52010200209

main35679-52020200209

main35679-52030200209

main35679-52040200209

main35679-52050200209

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-99042200209

main90520-99054200209

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-52010200209

main35682-52020200209

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-52020200209

main35683-52040200209-200508

main35683-52050200508

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-52010200209

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-52020200209

main35693-52040200209

35792CCLUTCH, 1 WAY, NO.2

main35792-52010200209

main35792-52021200209

24 parts on this diagram · 2 diagrams in section
