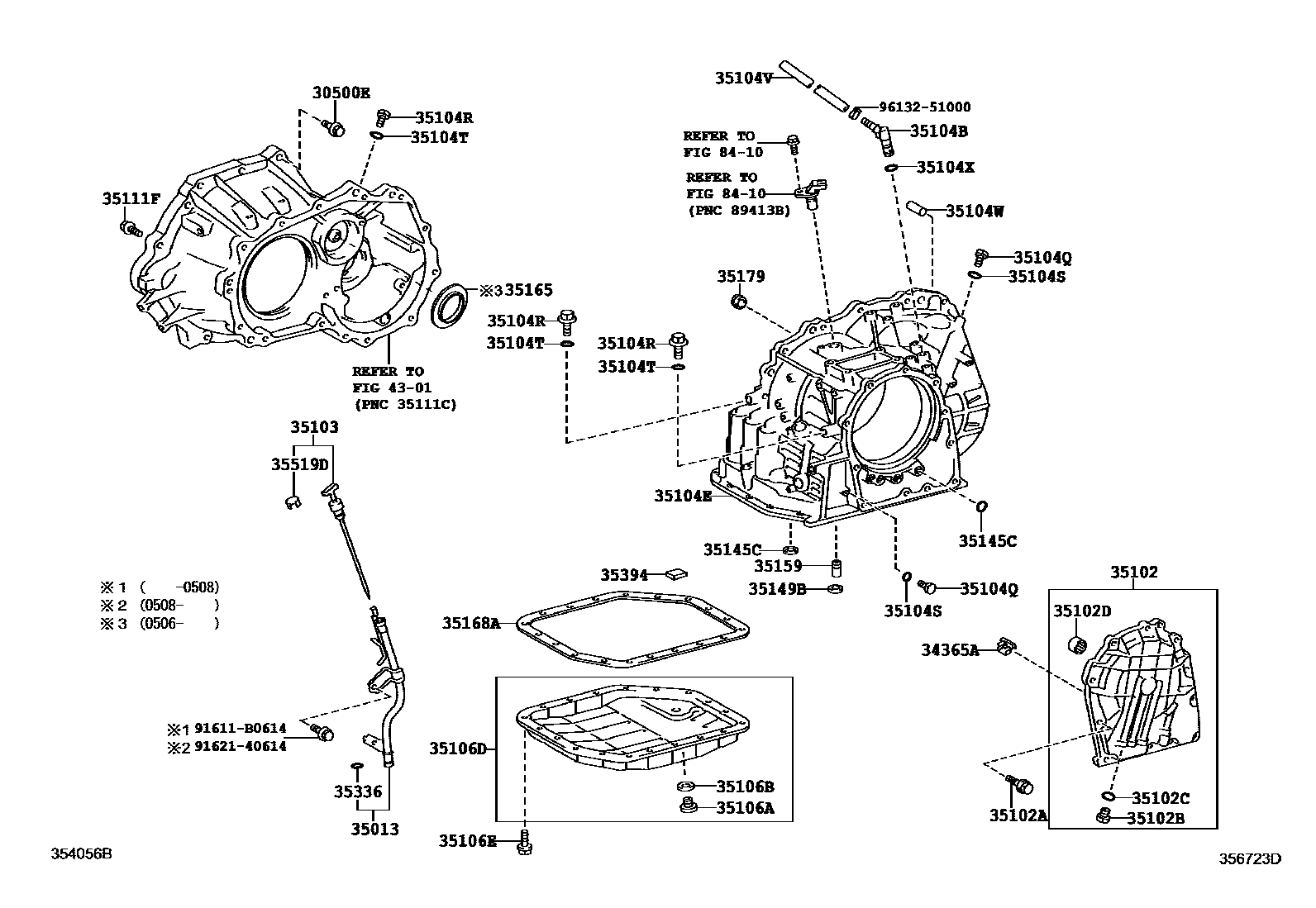

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U340F 0002 1U441E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91612-61050×7iNCP7#200209-200507

34365ARETAINER, OUTER RACE

main34365-52012iNCP75200209

main34365-52020iNCP70200209

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-52020iNCP70200209-200508

main35013-52021iNCP70200508

main35013-52040iNCP75200209-200508

main35013-52041iNCP75200508

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020iNCP75200209

main35102-52030iNCP70200209

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365×11iNCP75200209-200507

main90105-08375×9iNCP70200209-200507

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iNCP7#200209

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iNCP7#200209

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007iNCP75200209

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-52020iNCP70200209

main35103-52050iNCP75200209

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03156iNCP70200209

main90930-03166iNCP75200209

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52020iNCP70200209-200507

main35104-52030iNCP75200209-200506

main35104-52031iNCP75200506-200507

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×2iNCP7#200209

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001iNCP70; NCP75200209-200507

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×2iNCP7#200209-200507

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196iNCP70; NCP75200209-200507

35104VHOSE (FOR BREATHER PLUG)

main90447-11043iNCP75200209

main90447-11044iNCP70200209

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2iNCP75200209

main90250-10034×4iNCP70200209

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iNCP75200209-200507

main90301-08015iNCP70200209-200507

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iNCP70200209

main90341-18016iNCP75200209

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iNCP70200209

main90430-18008iNCP75200209

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52010iNCP70200209

main35106-52020iNCP75200209

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iNCP70; NCP75200209

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×14iNCP70; NCP75200209-200507

35145CGASKET, TRANSAXLE CASE

main35145-21010×5iNCP75200209

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020×4iNCP70200209

main35149-21010iNCP75200209

35159GASKET, BRAKE DRUM

main35159-21010iNCP75200209

main35159-52010iNCP70200209

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52010iNCP70200209-200507

main35165-52030iNCP75200506-200507

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52010iNCP70200209

main35168-52020iNCP75200209

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iNCP75200209

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iNCP7#200209-200507

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iNCP7#200209-200407

main35394-48010×2iNCP70200407

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iNCP70200209

main35519-52010iNCP75200209

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

91611B0614

main91611-B0614

9162140614

main91621-40614

9613251000

main96132-51000

37 parts on this diagram · 2 diagrams in section
