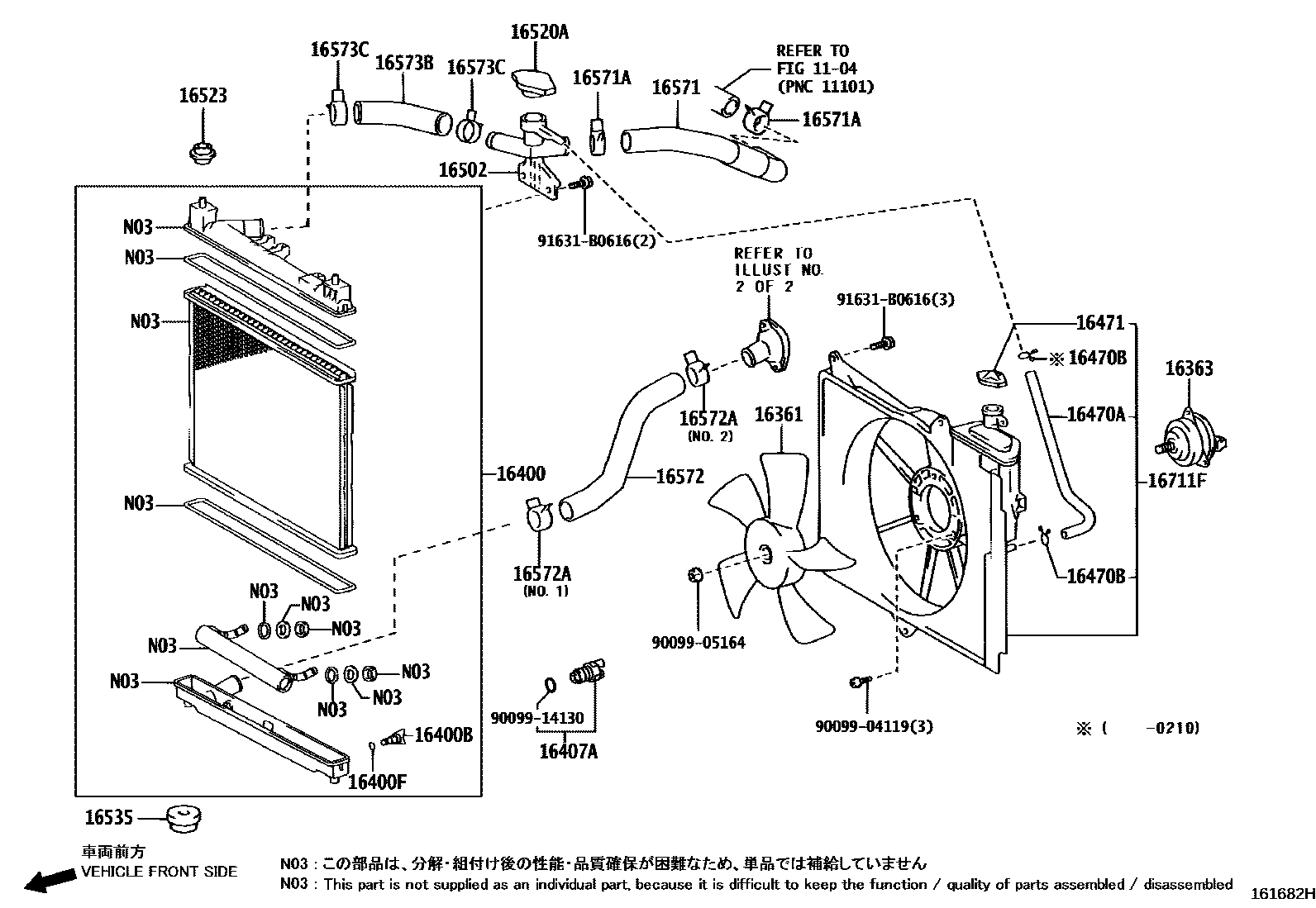

RADIATOR & WATER OUTLET

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16361FAN

main16361-21050i1NZFE,2NZFE..NCP7#200311

main16361-23050i1NZFE,2NZFE..NCP7#200209-200311

16363MOTOR, COOLING FAN

main16363-21050i1NZFE,2NZFE..NCP7#200307

main16363-23030i1NZFE,2NZFE..NCP7#200209-200307

16400RADIATOR ASSY

main16400-21070i1NZFE..NCP75200209-200507

main16400-21090i2NZFE..NCP70200209-200507

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1NZFE,2NZFE..NCP7#200209

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE,2NZFE..NCP7#200209

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i1NZFE,2NZFE..NCP7#200209

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1NZFE,2NZFE..NCP7#200209-200507

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE,2NZFE..NCP7#200209-200507

16471CAP SUB-ASSY, RESERVE TANK

main16471-23010i1NZFE,2NZFE..NCP7#200209-200507

16502FILLER SUB-ASSY, WATER

main16502-21010i1NZFE,2NZFE..NCP7#200209

16520ACAP SUB-ASSY, WATER FILLER

main16401-62100i1NZFE,2NZFE..NCP7#200209

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-23010×2i1NZFE,2NZFE..NCP7#200209

16535SUPPORT, RADIATOR, LOWER

main90480-40016×2i1NZFE,2NZFE..NCP7#200209

16571HOSE, RADIATOR, INLET

main16571-21020i1NZFE,2NZFE..NCP7#200209

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33006×2i1NZFE,2NZFE..NCP7#200209

16572HOSE, RADIATOR, OUTLET

main16572-21020i1NZFE,2NZFE..NCP7#200209

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33006i1NZFE,2NZFE..NCP7#200209

main90467-34004i1NZFE,2NZFE..NCP7#200209

16573BHOSE, RADIATOR, NO.3

main16573-21010i1NZFE,2NZFE..NCP7#200209

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006×2i1NZFE,2NZFE..NCP7#200209

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-21030i1NZFE,2NZFE..NCP7#200209-200507

9009904119

main90099-04119

9009905164

main90099-05164

9009914130

main90099-14130

91631B0616

main91631-B0616

25 parts on this diagram · 2 diagrams in section
