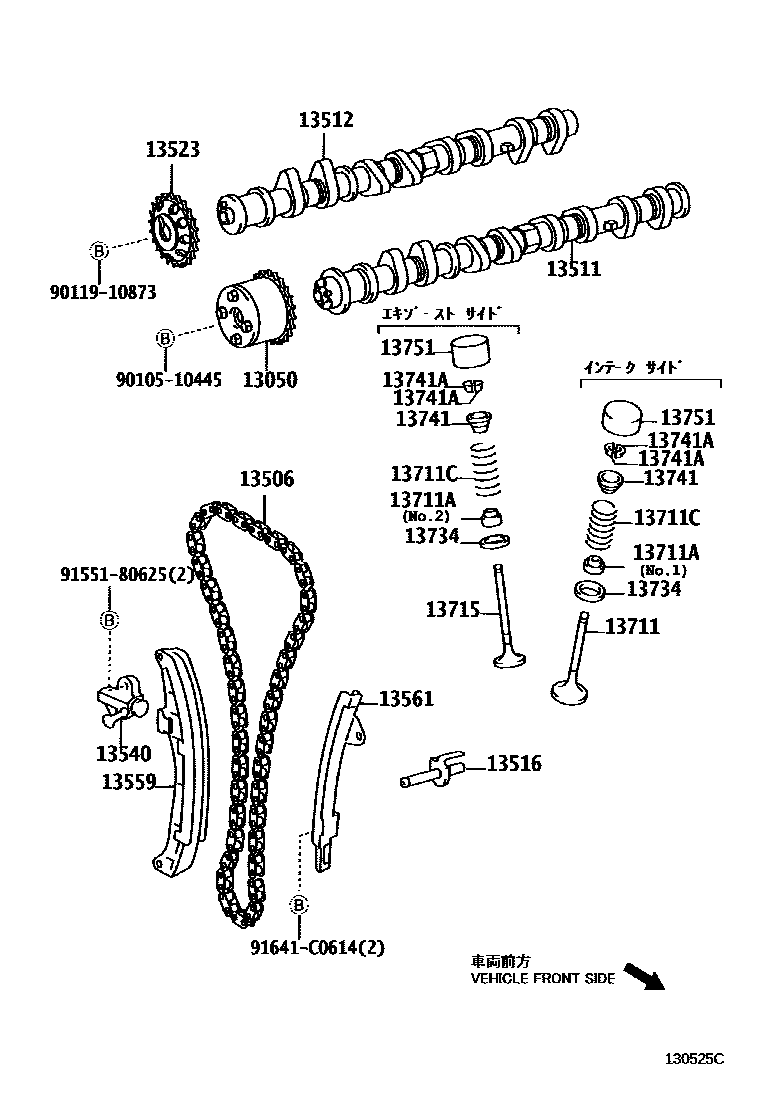

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13511CAMSHAFT
13512CAMSHAFT, NO.2
13516JET, OIL
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711CSPRING, COMPRESSION(FOR OUTER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
9010510445
main90105-10445
9011910873
main90119-10873
9155180625
main91551-80625
91641C0614
main91641-C0614
21 parts on this diagram · 1 diagram in section
