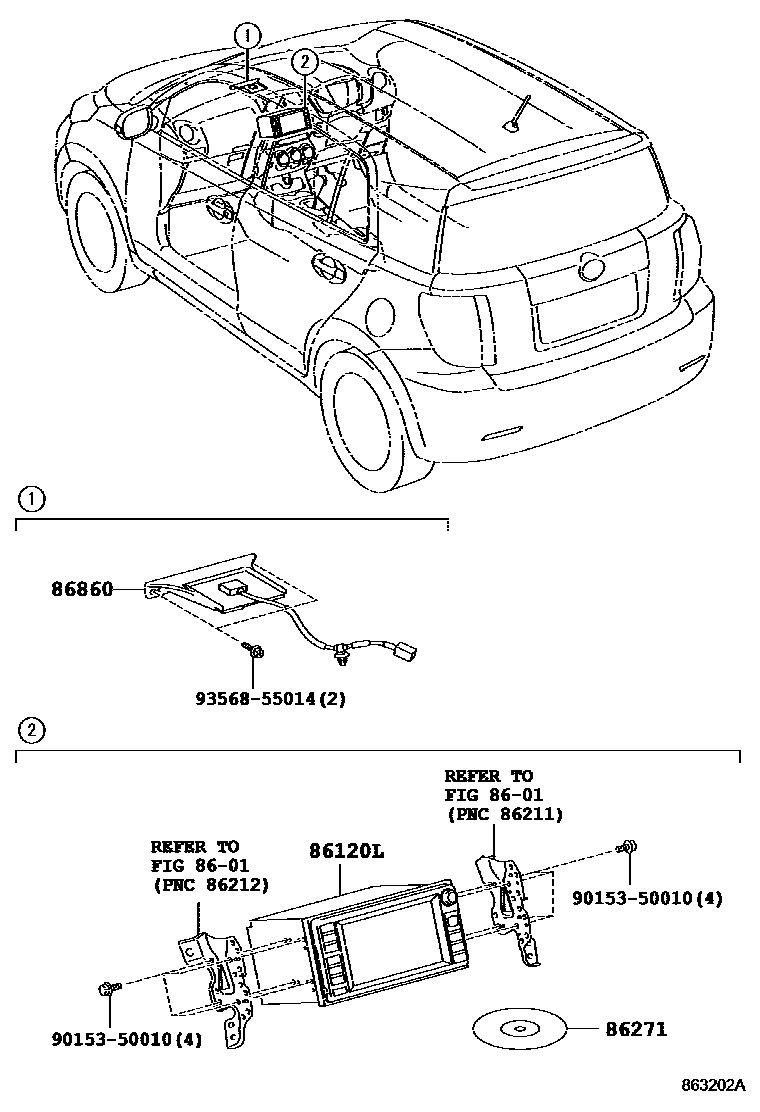

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86120-52890iNCP11#,ZSP110..CBU200707

86271DISC, DISC PLAYER

main86271-13067iNCP11#,ZSP110..CBU200707-200708

main86271-13068iNCP11#,ZSP110..CBU200709-200803

main86271-13069iNCP11#,ZSP110..CBU200804-200809

main86271-40100iNCP11#..CBU201309-201403

main86271-40101iNCP11#..CBU201404-201408

main86271-40102iNCP11#..CBU201409-201503

main86271-40103iNCP11#..CBU201504-201508

main86271-40104iNCP11#..CBU201509-201603

main86271-52070iNCP11#,ZSP110..CBU200810-200904

main86271-52071iNCP11#,ZSP110..CBU200905-200908

main86271-52072iNCP11#,ZSP110..CBU200909-201003

main86271-52073iNCP11#,ZSP110..CBU201004-201008

main86271-52074iNCP11#..CBU201009-201103

main86271-52075iNCP11#..CBU201104-201108

main86271-52076iNCP11#..CBU201109-201206

main86271-52077iNCP11#..CBU201206-201208

main86271-52078iNCP11#..CBU201209-201303

main86271-52079iNCP11#..CBU201304-201308

86860ANTENNA ASSY, NAVIGATION

main86860-52170iNCP11#,ZSP110..CBU200707

main86870-52040iNCP11#,ZSP110..CBU200707

9015350010

main90153-50010

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
