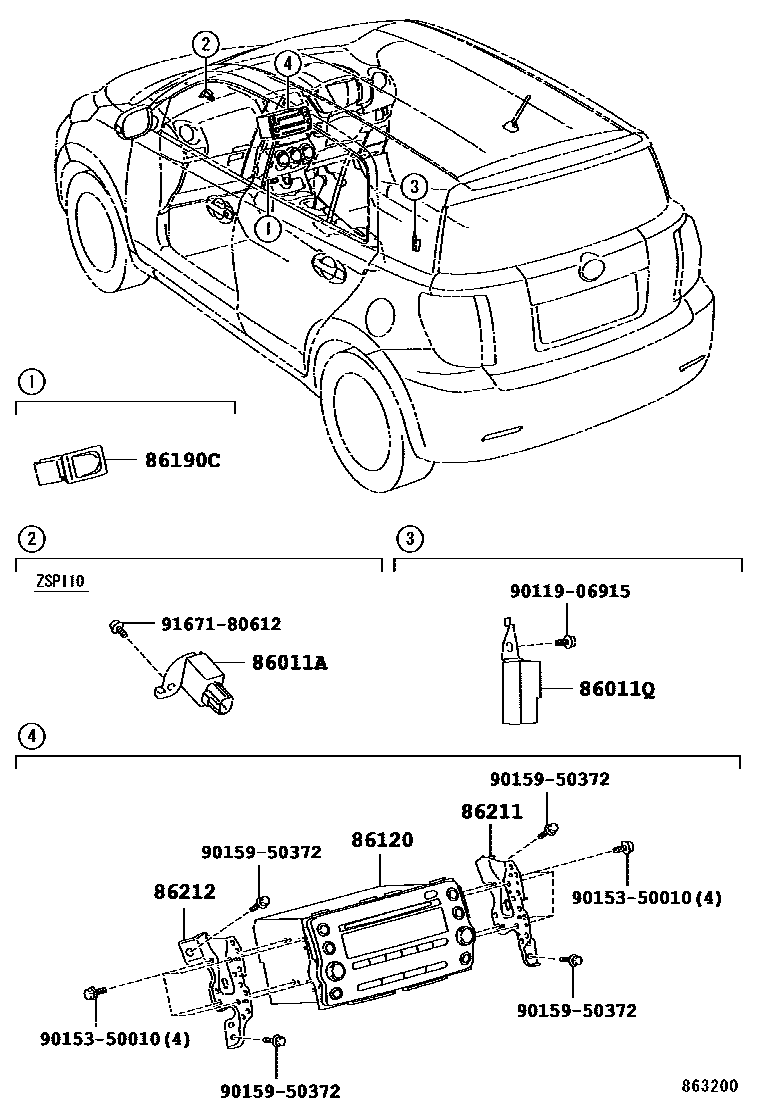

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04194iZSP110200707-201008

86011QCONDENSER, RADIO SETTING

main90980-04148iNCP11#,ZSP110..CBU200707

86120RECEIVER ASSY, RADIO

main86120-52820iNCP11#,ZSP110..G..CBU; NCP11#..G..CBU; NCP11#..X..CBU200707-201008

main86120-52C60iNCP11#..G..CBU; NCP11#..X..CBU201008

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-48010iNCP11#,ZSP110..G..CBU; NCP11#..X..CBU200707

86211BRACKET, RADIO, NO.1

main86211-52240iNCP11#,ZSP110..CBU200707

86212BRACKET, RADIO, NO.2

main86212-52250iNCP11#,ZSP110..CBU200707

9011906915

main90119-06915

9015350010

main90153-50010

9015950372

main90159-50372

9167180612

main91671-80612

10 parts on this diagram · 1 diagram in section
