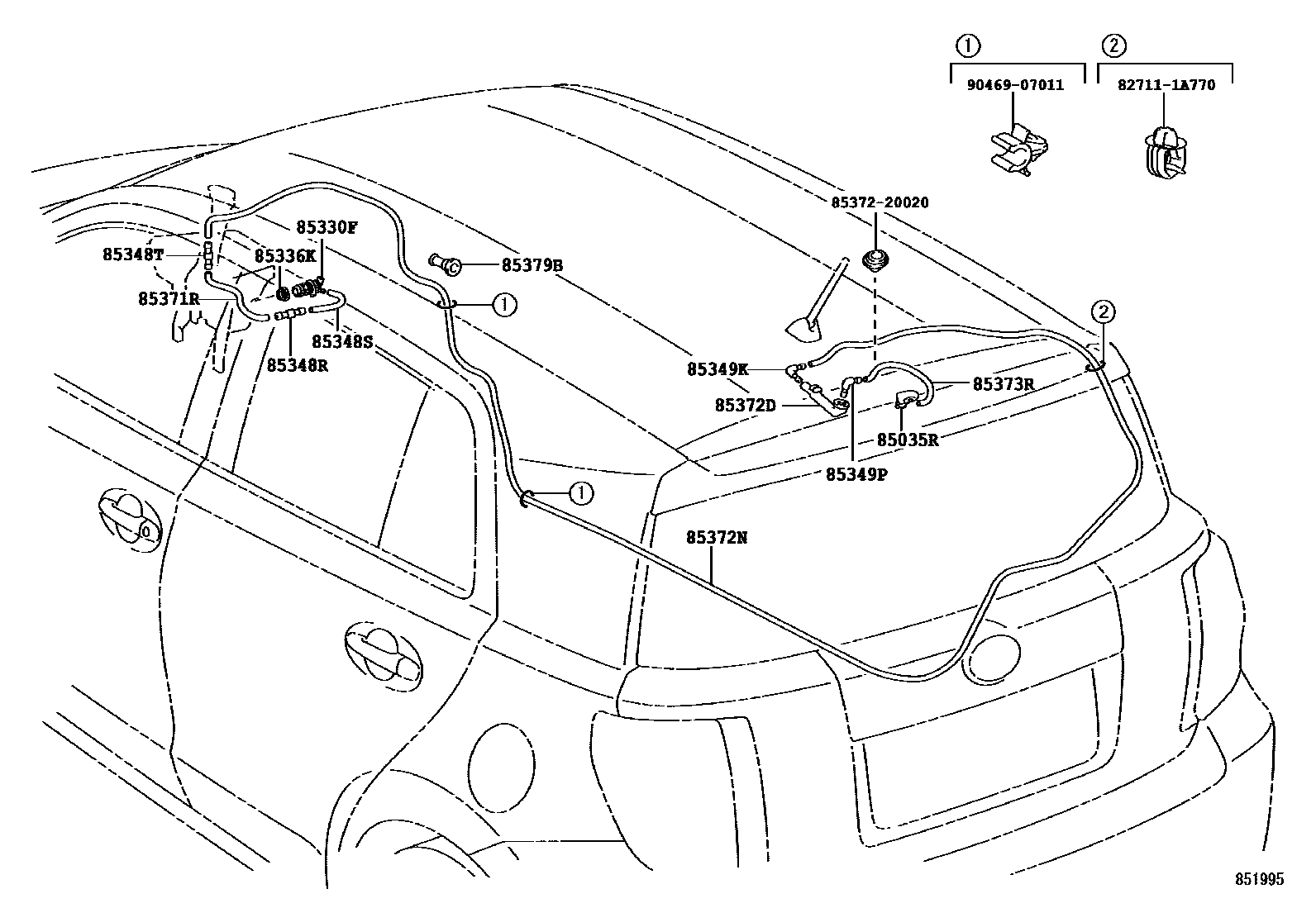

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160i200707-201604

85336KPROTECTOR, WASHER JAR

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85349KJOINT, REAR WASHER ELBOW, NO.2

85349PJOINT, REAR WASHER ELBOW, NO.3

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372DGROMMET, REAR WASHER HOSE

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

85379BGROMMET, WASHER, A

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

9046907011

16 parts on this diagram · 1 diagram in section
