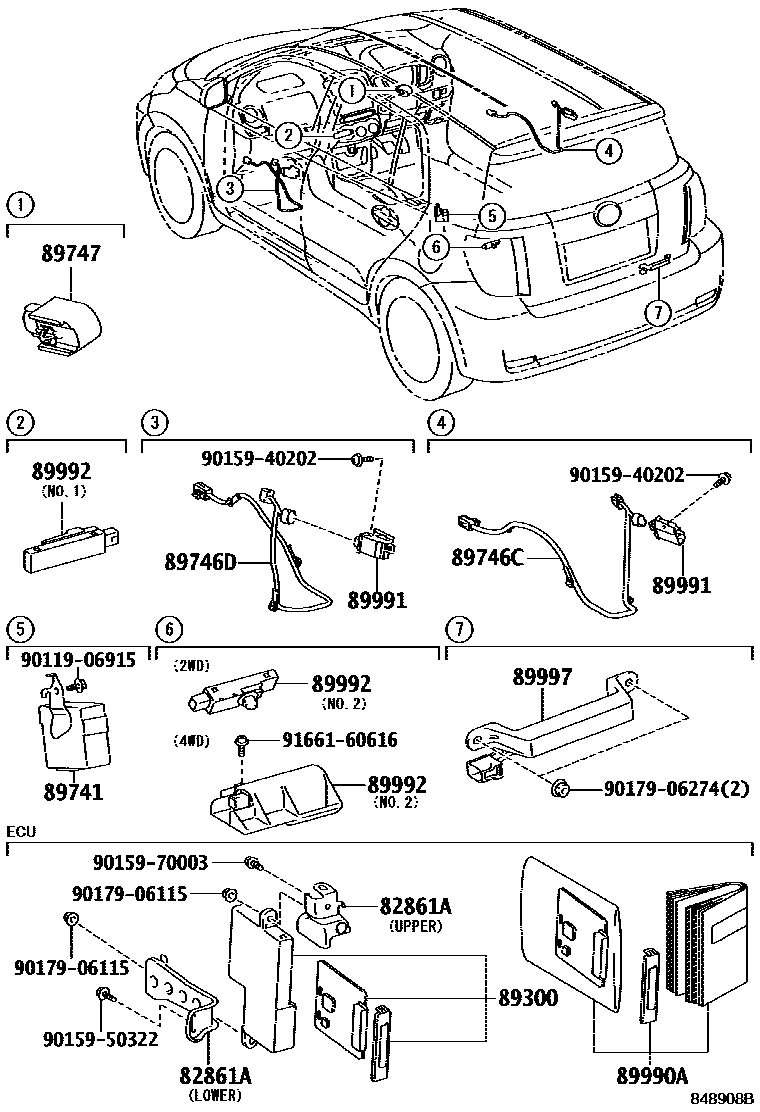

WIRELESS DOOR LOCK

82861ABRACKET, COMPUTER INTEGRATION, NO.1

main82861-52010iZSP110200707-201008

main82861-52020iZSP110200707-201008

89300BOX ASSY, ECU AGGREGATION

main89300-52052iNCP11#..CBU; ZSP110200707-200810

main89300-52120iNCP11#..CBU; ZSP110200811-201008

main89300-52080iNCP11#..CBU201206

main89300-52150iNCP11#..CBU201008-201206

89741RECEIVER, DOOR CONTROL

main89740-52150supersedes 89741-52430iZSP110200707-201008

main89741-52240supersedes 89741-52430iNCP11#..CBU200707-200810

main89741-52241supersedes 89741-52430iNCP11#..CBU200811-201206

main89741-52430iNCP11#..CBU201206

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-52140iZSP110200707-201008

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-52150iZSP110200707-201008

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iZSP110200707-201008

89990ACOMPUTER ASSY, SMART KEY

main89990-52112iNCP11#..CBU; ZSP110200707-200901

main89990-52230iNCP11#..CBU; ZSP110200901-201008

main89990-52280iNCP11#..CBU201008

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iZSP110200707-201008

main89991-30050iZSP110200707-201008

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-52010iZSP110200707-201008

main89992-52020iZSP110200707-201008

main89992-52030iNCP115..CBU200707

89997ANTENNA, ELECTRICAL KEY

main89997-52010iZSP110200707-201008

9011906915

main90119-06915

9015940202

main90159-40202

9015950322

main90159-50322

9015970003

main90159-70003

9017906115

main90179-06115

9017906274

main90179-06274

9166160616

main91661-60616

17 parts on this diagram · 1 diagram in section
