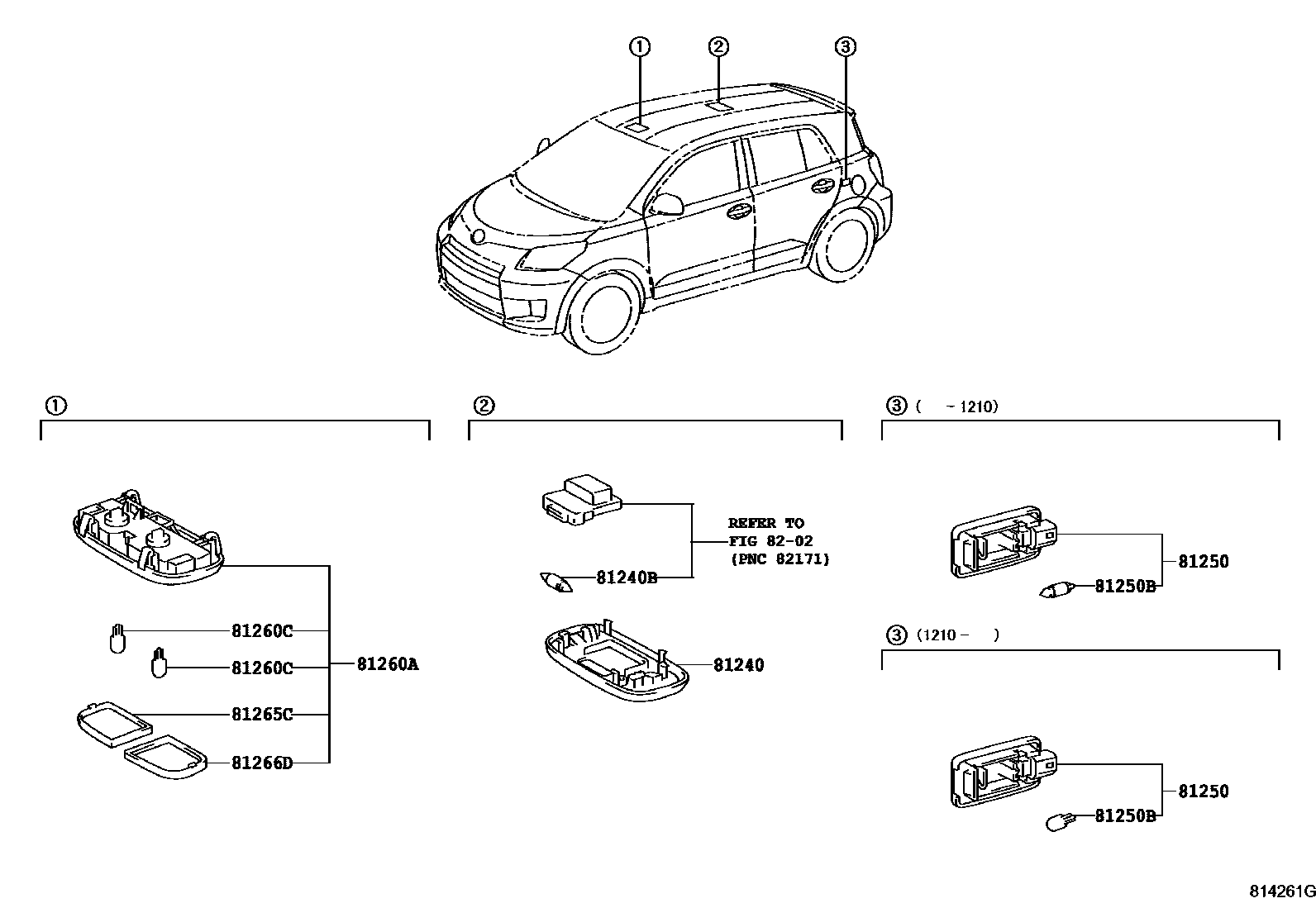

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-68010-B0iNCP11#,ZSP110..CBU200707-201604

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP11#,ZSP110..CBU200707

81250LAMP ASSY, ROOM, NO.2

main81250-05040iNCP11#..CBU201010-201209

main81330-05021iNCP11#,ZSP110..CBU200707-201010

main81330-30100iNCP11#..CBU201210

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iNCP11#,ZSP110..CBU200707-201210

main99132-12050iNCP11#..CBU201210

81260ALAMP ASSY, MAP

main81260-52030-B1iNCP11#,ZSP110..CBU200707-201604

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iNCP11#,ZSP110..CBU200707

81265CLENS, MAP LAMP, NO.1

main81265-52020iNCP11#,ZSP110..CBU200707

81266DLENS, MAP LAMP, NO.2

main81266-52020iNCP11#,ZSP110..CBU200707

8202WIRING & CLAMP

→ Go to FIG 82-02

9 parts on this diagram · 1 diagram in section
