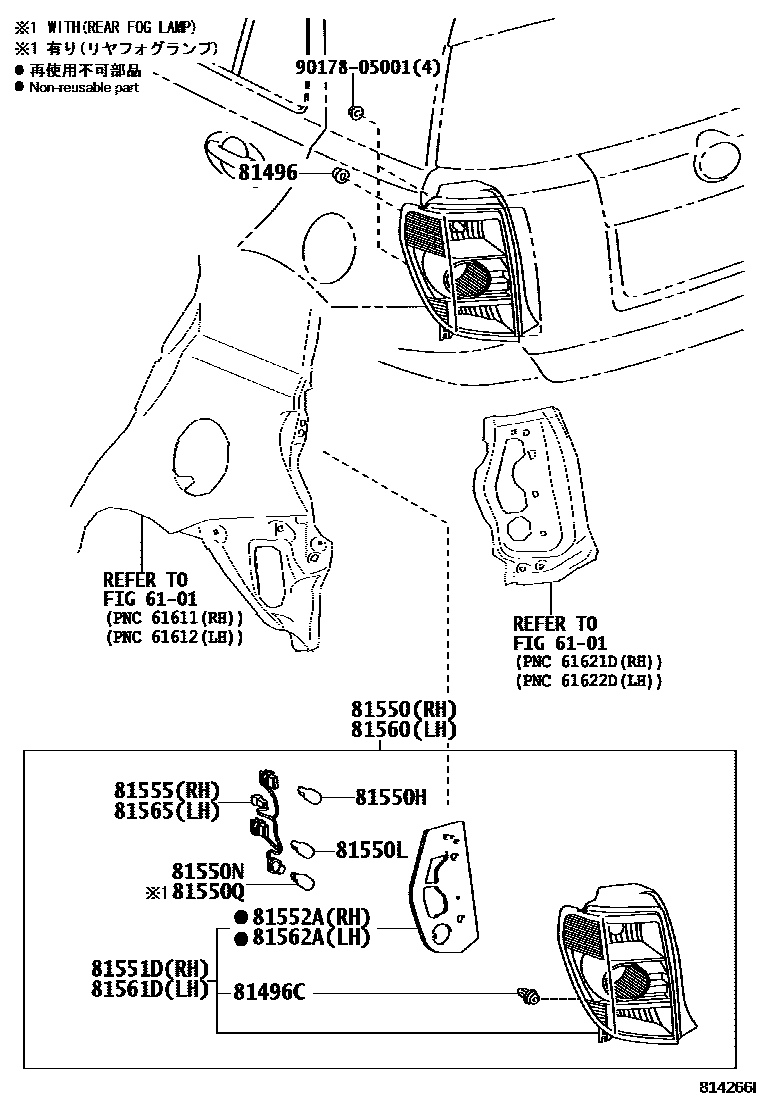

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iNCP11#,ZSP110..CBU200707

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-12050×2iNCP11#,ZSP110..CBU200707

81550LAMP ASSY, REAR COMBINATION, RH

main81550-52680supersedes 81550-52670iNCP11#,ZSP110..CBU200707

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iNCP11#,ZSP110..CBU200707

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iNCP11#,ZSP110..CBU200707

81550NBULB, BACK UP LAMP

main90981-11059iNCP11#,ZSP110..CBU200707

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iNCP11#,ZSP110..CBU200707

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52680supersedes 81551-52670iNCP11#,ZSP110..CBU200707

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-52670iNCP11#,ZSP110..CBU200707

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52680supersedes 81555-52670iNCP11#,ZSP110..CBU200707

81560LAMP ASSY, REAR COMBINATION, LH

main81560-52600iNCP11#,ZSP110..CBU200707

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52600iNCP11#,ZSP110..CBU200707

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-52600iNCP11#,ZSP110..CBU200707

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52670iNCP11#,ZSP110..CBU200707

9017805001

main90178-05001

16 parts on this diagram · 1 diagram in section
