FRONT SEAT & SEAT TRACK

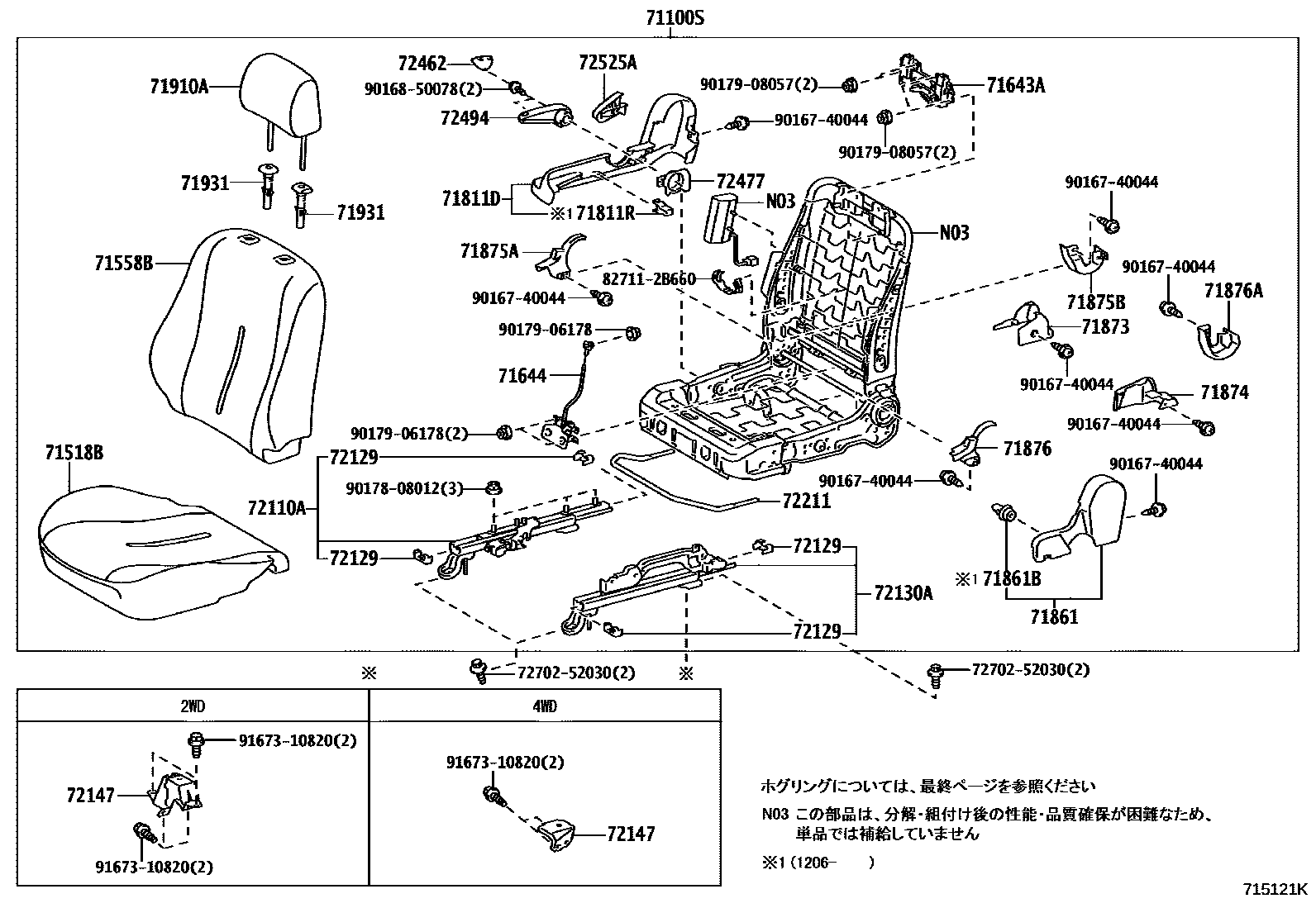

Parts diagram

71100SSEAT ASSY, FRONT RH

main71010-52G10-B0i201004-201008

DK.GRAY,TRIM10

main71010-52G10-B1i201004-201008

LT.GRAY,TRIM11

main71010-52Y70-B1i201108-201206

DK.GRAY,TRIM1#

main71010-52Y71-B0i201206-201309

DK.GRAY,TRIM1#

main71010-52Y72-B0i201310-201604

DK.GRAY,TRIM1#

main71100-5CB80-B6i200707-201004

DK.GRAY,TRIM10

main71100-5CB80-B7i200707-201004

LT.GRAY,TRIM11

main71100-5CB82-B0i201008-201108

DK.GRAY,TRIM1#

main71010-52D11-B0i201008-201108

main71010-52Y80-B1i201108-201206

main71010-52Y81-B0i201206-201309

main71010-52Y82-B0i201310-201604

main71100-5CT50-B0i200901-201007

71518BPAD, FRONT SEAT CUSHION W/COVER, RH

main71518-52G30-B6i200707-201008

DK.GRAY,TRIM10

main71518-52G30-B7i200707-201008

GRAY,TRIM11

main71518-52G31-B8i201008-201108

GRAY,TRIM1#

main71518-52T30-B1i201108-201604

GRAY,TRIM1#

main71518-52P30-B1i200901-201007

71558BPAD, FRONT SEATBACK W/COVER, RH

main71558-52K50-B2i200707-201008

DK.GRAY,TRIM10

main71558-52K50-B3i200707-201008

GRAY,TRIM11

main71558-52K51-B4i201008-201108

GRAY,TRIM1#

main71558-52X20-B1i201108-201604

GRAY,TRIM1#

main71558-52T30-B0i200901-201007

main71558-52W20-B0i201008-201108

main71558-52X30-B1i201108-201604

71643AUNIT, ACTIVE HEADREST, UPR

main71643-12011×2i200707-201004

71644UNIT, ACTIVE HEADREST, LWR

main71644-12030×2i200707-201004

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52210-B0i200707-201604

DK.GRAY,TRIM1#

71811RCLIP, FRONT SEAT CUSHION SHIELD, RH

main90467-10203i201206

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52200-B0i200707-201604

DK.GRAY,TRIM1#

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main71769-33020i201206

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-52220-B0i200707-201604

DK.GRAY,TRIM1#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-52210-B0i200707-201604

DK.GRAY,TRIM1#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52090-B0i200707-201604

DK.GRAY,TRIM1#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52170-B0i200707-201604

DK.GRAY,TRIM1#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-52090-B0i200707-201604

DK.GRAY,TRIM1#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52160-B0i200707-201604

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-52650-B4×2i200707-201008

main71910-52651-B4×2i201008-201206

DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0×2supersedes 71931-47010-B2i200707-201008

main71930-44020-B2×2i200707-201008

main71931-47010-B2×2i200707-201008

main71931-47010-P4×2i200707-201008

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-52070i200707-201003

main72110-52071i201008

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-52030×8i200707-201004

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-52230i200707-201003

main72130-52231i201008-201604

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-52020i200707-201006

main72147-52030i200707-201006

main72147-52060i201007-201008

main72147-52070i201007

72211HANDLE, SEAT TRACK ADJUSTING

main72211-52030i200707-200906

main72211-52110i200906

72462COVER, VERTICAL ADJUSTER RH

main72462-58010-B0i200707-201604

DK.GRAY,TRIM1#

72477SPACER, VERTICAL ADJUSTER

main72477-58010i200707-201008

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-52020-B0i200707-201604

DK.GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-58030-B0i200707-201604

DK.GRAY,TRIM1#

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

9016740044

main90167-40044

9016850078

main90168-50078

9017808012

main90178-08012

9017906178

main90179-06178

9017908057

main90179-08057

9167310820

main91673-10820

34 parts on this diagram · 3 diagrams in section
