INSTRUMENT PANEL & GLOVE COMPARTMENT

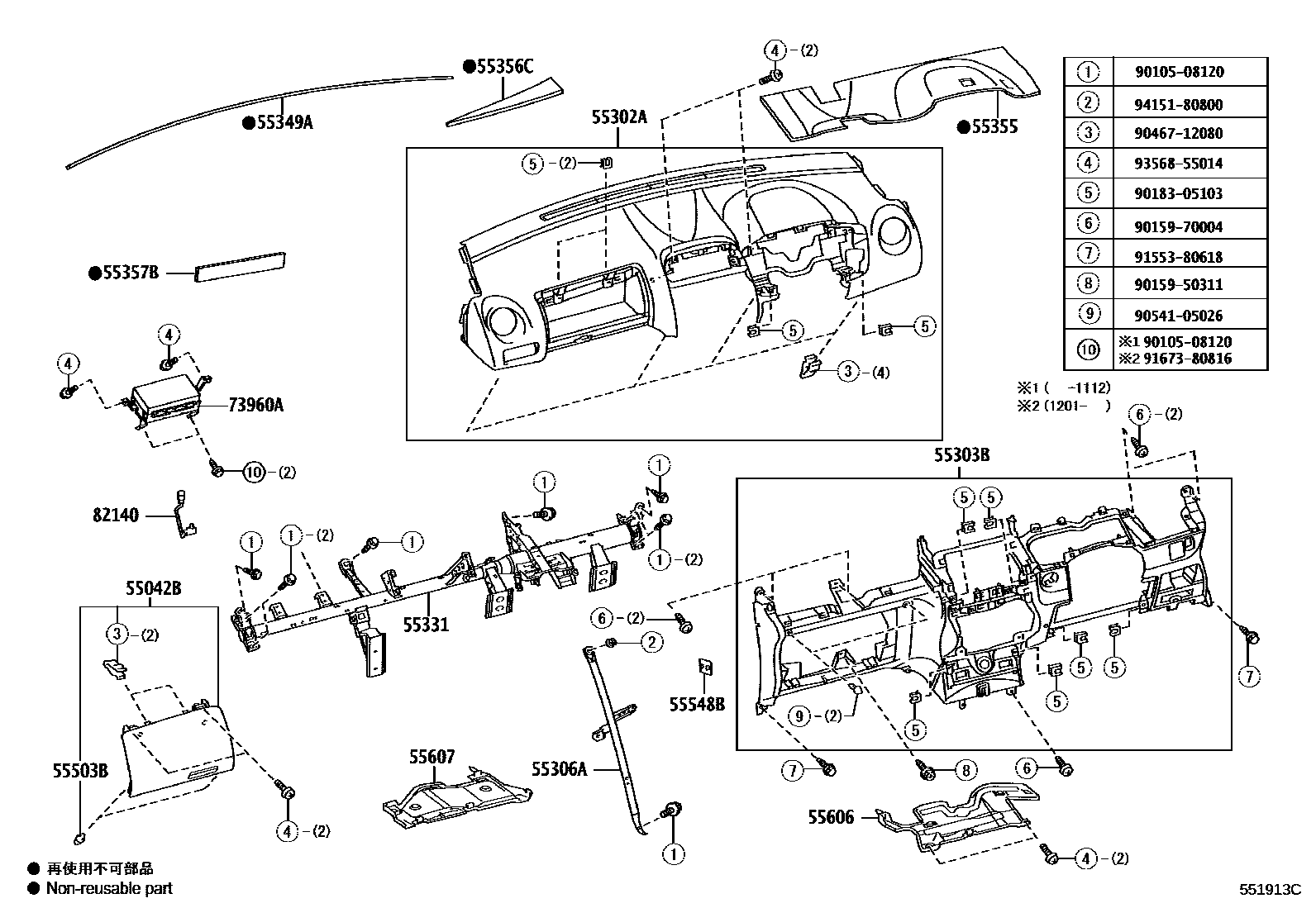

Parts diagram

55042BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

main55042-52050-B0i200707-201604

DK.GRAY,TRIM1#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52090-B0i200707-201110

DK.GRAY,TRIM1#

main55302-52091-B0i201111-201604

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52190-B0i200707-201110

DK.GRAY,TRIM1#

main55303-52191-B0i201111-201604

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52180i200707

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52510i200707-200905

main55330-52511i200905

55349ACUSHION, INSTRUMENT PANEL

main55349-52100i200707-201505

main55349-52310i201505

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52160i200707

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52150i200707

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52130i200707

55503BCUSHION(FOR GLOVE COMPARTMENT)

main58959-60060×2i200707

55548BCOVER, INSTRUMENT PANEL HOLE

main55548-12090-B0i200707-201604

DK.GRAY,TRIM1#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-52030i200707

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-52030i200707

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52120i200707-201112

main73960-52121i201201-201311

main73960-52122i201311

82140WIRE ASSY, INSTRUMENT PANEL

main82140-52030i200707

9010508120

main90105-08120

9015950311

main90159-50311

9015970004

main90159-70004

9018305103

main90183-05103

9046712080

main90467-12080

9054105026

main90541-05026

9155380618

main91553-80618

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

25 parts on this diagram · 4 diagrams in section
