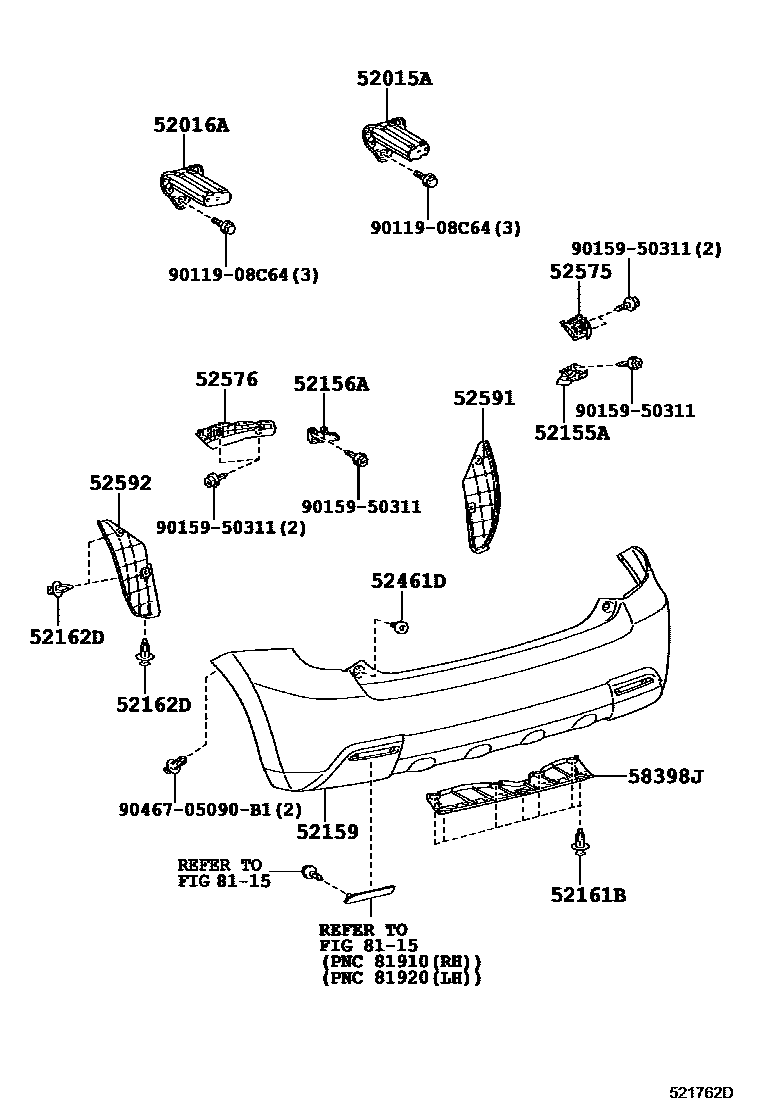

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
COPPER M.M.,4T9
DK.BLUE MC.,8S6
DEEP AMETHYST M.M.,9AH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
BRONZE M.M.,4T3
GREEN M.M.,6V2
DK.BLUE MC.,8S6
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
52161BPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
52461DCUSHION, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
58398JCOVER, FLOOR UNDER, NO.1
8115REFLEX REFLECTOR
9011908C64
main90119-08C64
9015950311
main90159-50311
9046705090B1
main90467-05090B1
17 parts on this diagram · 1 diagram in section
