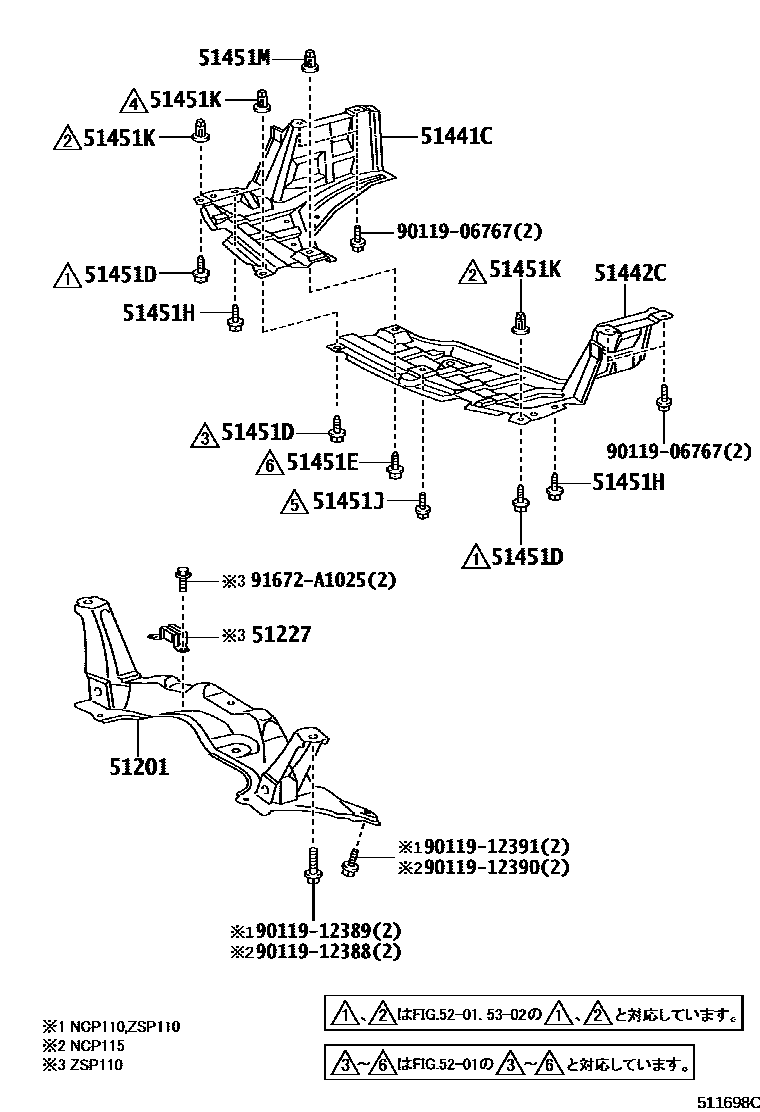

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52090iNCP110,ZSP110..CBU200707-201101

main51201-52093iNCP110..CBU201102-201105

main51201-52094iNCP110..CBU201106-201204

main51201-52095iNCP110..CBU201205-201207

main51201-52096iNCP110..CBU201208-201210

main51201-52097iNCP110..CBU201211

main51201-52100iNCP115..CBU200707-201101

main51201-52103iNCP115..CBU201102-201105

main51201-52104iNCP115..CBU201106-201204

main51201-52105iNCP115..CBU201205-201206

main51201-52106iNCP115..CBU201208-201210

main51201-52107iNCP115..CBU201211

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-52070iZSP110200707-201008

51441CCOVER, ENGINE UNDER, RH

main51441-52141iNCP11#,ZSP110..CBU200707-200807

main51441-52180iNCP11#..CBU201205

main51441-52250iNCP11#,ZSP110..CBU200808-201204

51442CCOVER, ENGINE UNDER, LH

main51442-52082iNCP11#,ZSP110..CBU200707-200807

main51442-52090iNCP11#..CBU201205

main51442-52110iNCP11#,ZSP110..CBU200808-201204

51451DSCREW, NO.1

main90159-60383×3iNCP11#,ZSP110..CBU200707-201604

51451ESCREW, NO.2

main90159-60383iNCP11#,ZSP110..CBU200707-201604

51451HSCREW, NO.3

main90159-60383×2iNCP11#,ZSP110..CBU200707-201604

51451JBOLT, NO.1

main90119-06767iNCP11#,ZSP110..CBU200707-201604

51451KGROMMET, SCREW, NO.1

main90189-06076×3iNCP11#,ZSP110..CBU200707-201604

51451MGROMMET, SCREW, NO.2

main90189-06076iNCP11#,ZSP110..CBU200707-201604

9011906767

main90119-06767

9011912388

main90119-12388

9011912389

main90119-12389

9011912390

main90119-12390

9011912391

main90119-12391

91672A1025

main91672-A1025

16 parts on this diagram · 2 diagrams in section
