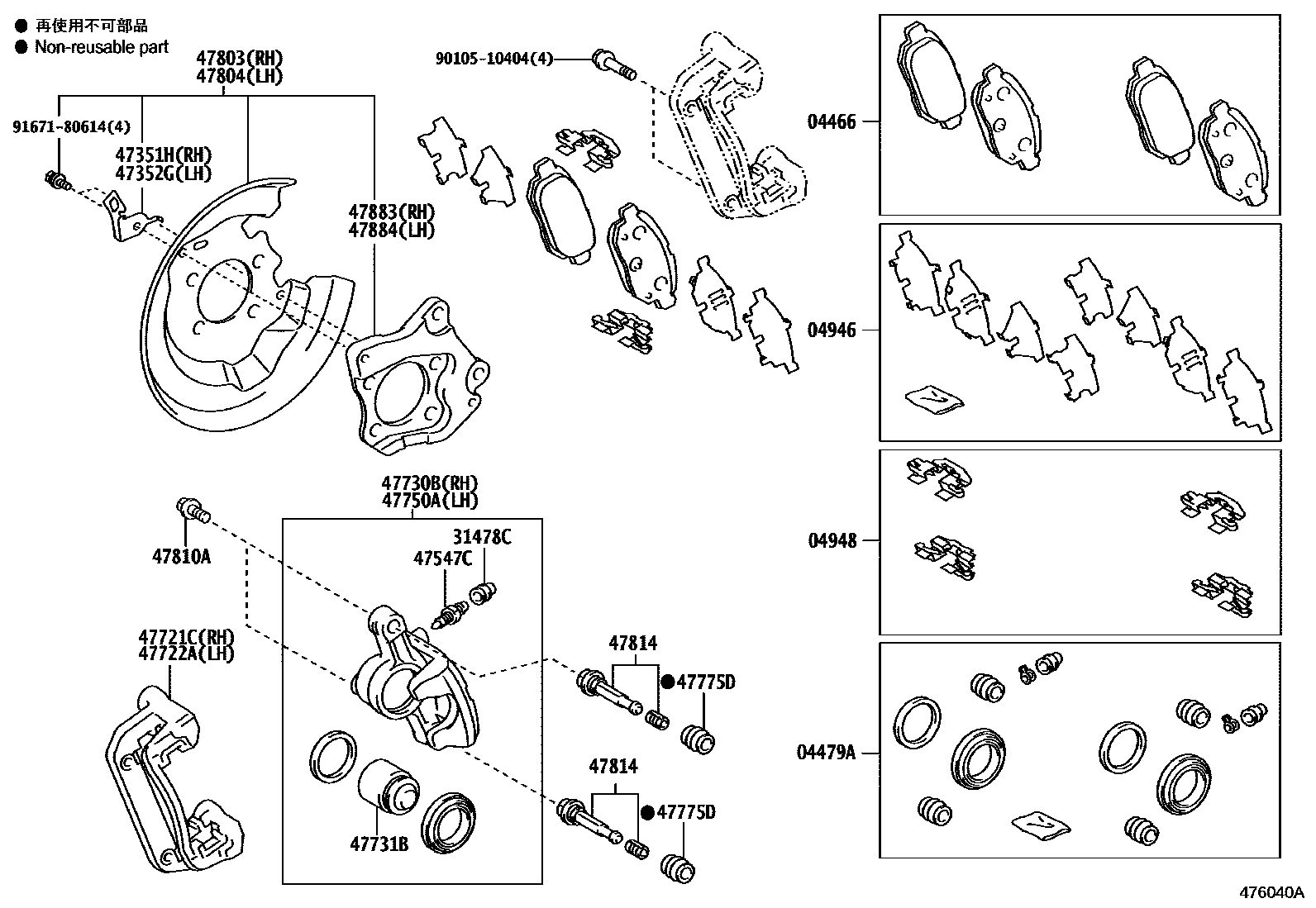

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52120iNCP115..CBU200707-201205

main04466-52121iNCP115..CBU201205

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iNCP115..CBU200707

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iNCP115..CBU200707

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iNCP115..CBU201303

main04948-52040iNCP115..CBU200707-201302

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iNCP115..CBU200707

47351HBRACKET, FLEXIBLE HOSE, RH

main47351-52120iNCP115..CBU200707

47352GBRACKET, FLEXIBLE HOSE, LH

main47352-52110iNCP115..CBU200707

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iNCP115..CBU200707

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iNCP115..CBU200707

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150×2iNCP115..CBU200707-201202

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52100iNCP115..CBU200707

47731BPISTON, REAR DISC BRAKE

main47831-52050×2iNCP115..CBU200707

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52100×2iNCP115..CBU200707-201202

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iNCP115..CBU200707-201202

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-52020iNCP115..CBU200707

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-52020iNCP115..CBU200707

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iNCP115..CBU200707-201202

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150×4iNCP115..CBU200707-201202

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-52020iNCP115..CBU200707

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-52020iNCP115..CBU200707

9010510404

main90105-10404

9167180614

main91671-80614

22 parts on this diagram · 1 diagram in section
