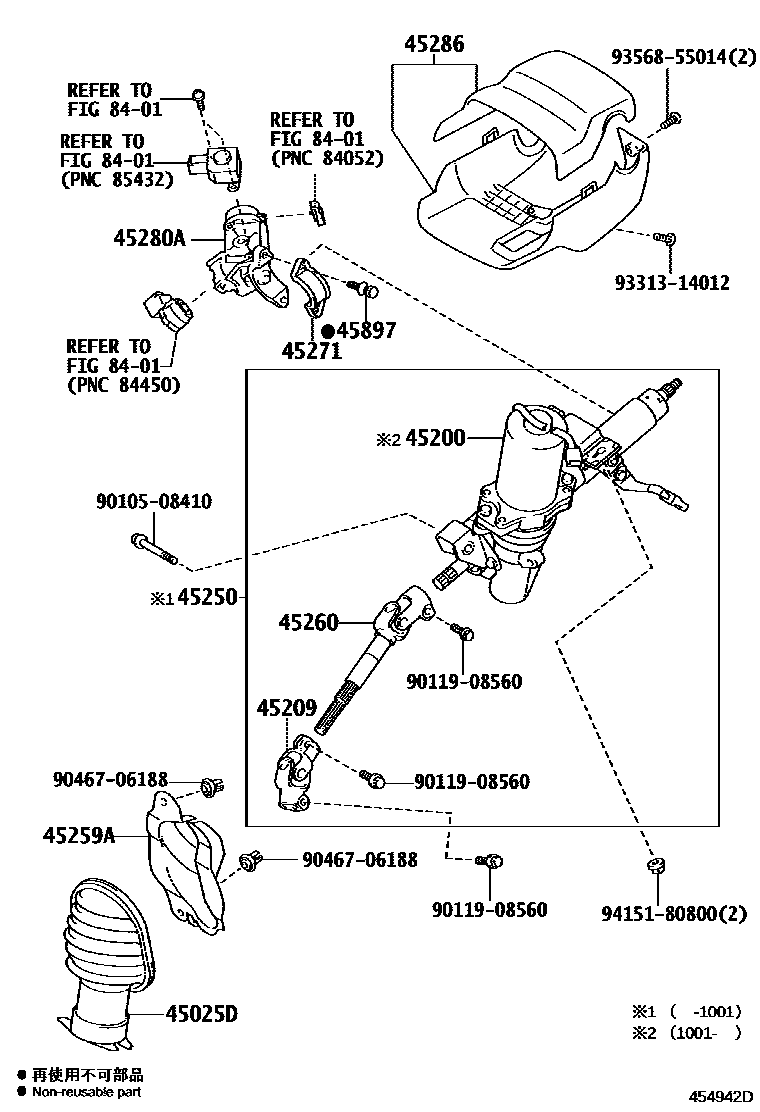

STEERING COLUMN & SHAFT

0001 1 0002 1��(������)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP110,ZSP110..CBU200707-201110

main45025-52160iNCP115..CBU200707

main45025-52170iNCP110..CBU201111

45200POST ASSY, STEERING

main45200-52680supersedes 45200-52690iZSP110201001-201008

main45200-52681supersedes 45200-52692iNCP11#..CBU201108

main45200-52730iNCP11#..X..CBU201001-201107

main45200-52731iNCP11#..X..CBU201108

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52070iNCP11#..CBU200707-201104

45250COLUMN ASSY, STEERING

main45250-52300supersedes 45250-52291iNCP11#..CBU; ZSP110200707-200712

main45250-52301iNCP11#..CBU; ZSP110200801-201001

main45250-52360iNCP11#..X..CBU200707-200712

main45250-52361iNCP11#..X..CBU200801-201001

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNCP11#,ZSP110..CBU200707

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52270iNCP11#..CBU200707-201104

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iNCP11#,ZSP110..CBU200707

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iNCP11#..CBU200707-201108

main45280-22520iNCP11#..CBU201108-201604

45286COVER, STEERING COLUMN

main45286-52930-B0iNCP11#,ZSP110..CBU200707-200812

DK.GRAY,TRIM1#

main45286-52935-B0iNCP11#,ZSP110..CBU200812-201604

DK.GRAY,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020×2iNCP11#,ZSP110..CBU200707

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508410

main90105-08410

9011908560

main90119-08560

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
