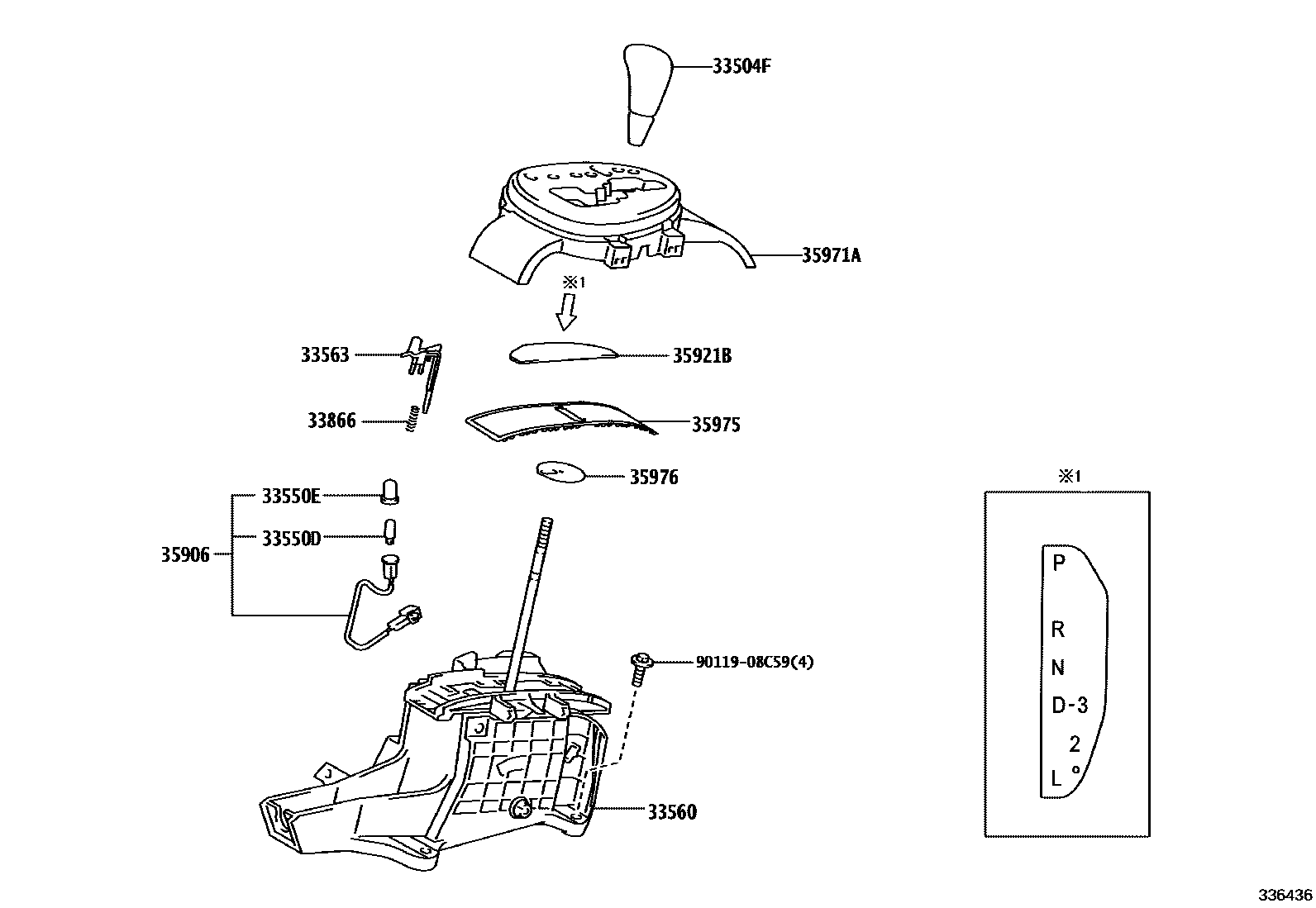

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12430-B0iNCP11#..X..CBU200707-201604

DK.GRAY,TRIM1#

main33504-35060-B0iNCP11#,ZSP110..G..CBU200707-201604

DK.GRAY,TRIM1#

sub33504-35060

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iNCP11#,ZSP110..CBU200707-201604

33550ECAP, POSITION INDICATOR LAMP

main35956-52010iNCP11#,ZSP110..CBU200707-201604

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52180iNCP110..CBU200707

main33560-52310iNCP115..CBU200707

main33560-52330iZSP110200707-201008

33563BUTTON, SHIFT LOCK RELEASE

main33563-52080iNCP11#,ZSP110..CBU200707

33866SPRING, SHIFT LOCK RELEASE

main33866-52010iNCP11#,ZSP110..CBU200707

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52080iNCP11#,ZSP110..CBU200707

35921BPLATE, CONTROL POSITION INDICATOR NO,2

main35921-52070iNCP11#..CBU200707

main35921-52080iZSP110200707-201008

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52340iZSP110200707-201008

main35971-52360iNCP11#..CBU200707-201007

main35971-52370iNCP11#..CBU201008

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52080iNCP11#,ZSP110..CBU200707

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-52080iNCP11#,ZSP110..CBU200707

9011908C59

main90119-08C59

12 parts on this diagram · 3 diagrams in section
