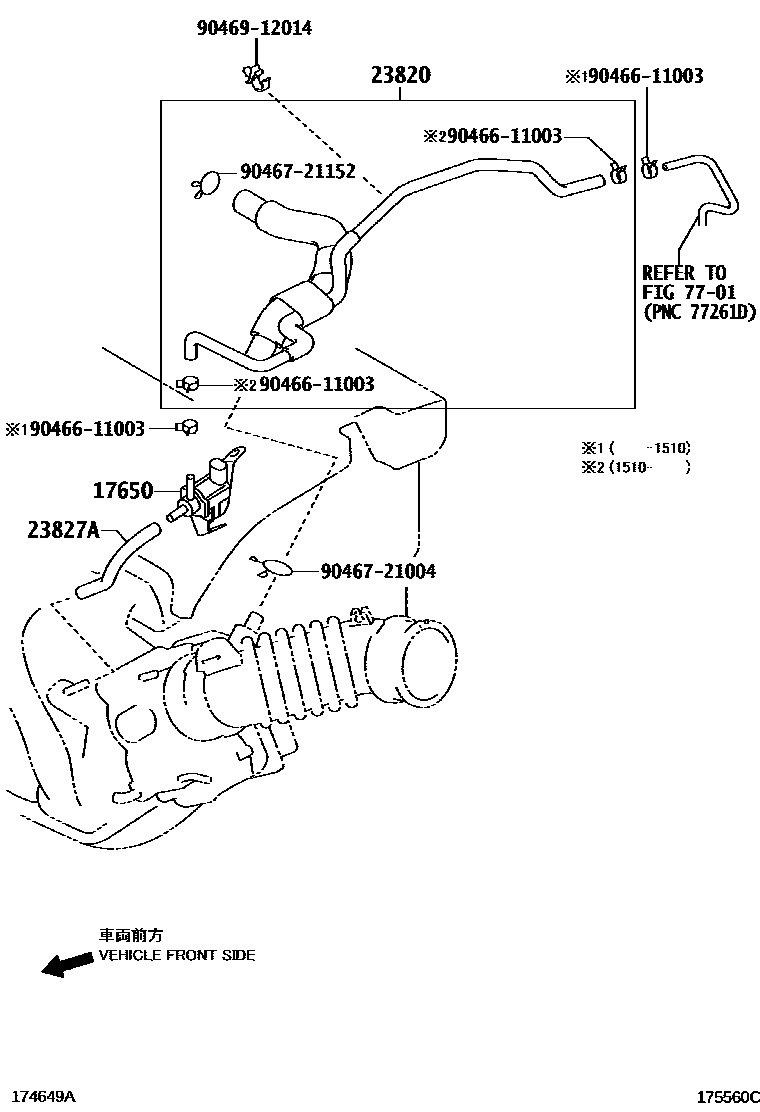

VACUUM PIPING

0001 1 0002 1 0003 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-21070i1NZFE..NCP11#..CBU200707

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21090i1NZFE..NCP11#..CBU200707-201510

main23820-21091i1NZFE..NCP11#..CBU201510

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21150i1NZFE..NCP11#..CBU200707

main23827-37020i2ZRFE..ZSP110200707-201008

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9046611003

main90466-11003

9046721004

main90467-21004

9046721152

main90467-21152

9046912014

main90469-12014

8 parts on this diagram · 3 diagrams in section
