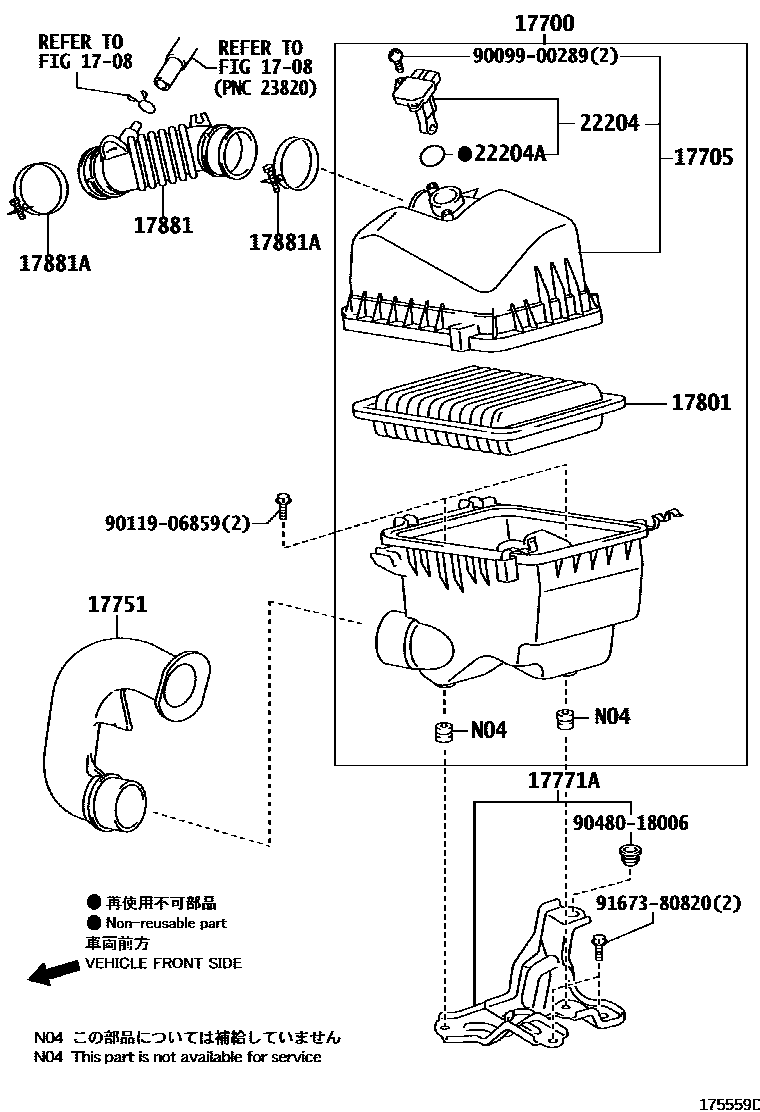

AIR CLEANER

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

17700CLEANER ASSY, AIR

main17700-21120i1NZFE..NCP11#..CBU200707

main17700-37201i2ZRFE..ZSP110200707-201008

17705CAP SUB-ASSY, AIR CLEANER

main17705-21090i1NZFE..NCP11#..CBU200707

main17705-37071i2ZRFE..ZSP110200707-201008

17751INLET, AIR CLEANER, NO.1

main17751-21160i1NZFE..NCP11#..CBU200707

17771ABRACKET, AIR CLEANER

main17771-21050i2ZRFE..ZSP110200707-201008

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i2ZRFE..ZSP110200707-201008

17881HOSE, AIR CLEANER, NO.1

main17880-21091i1NZFE..NCP11#..CBU200707

main17880-37050i2ZRFE..ZSP110200707-201008

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690×2i1NZFE..NCP11#..CBU200707

main96111-10780i2ZRFE..ZSP110200707-201008

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1NZFE..NCP11#..CBU200707

main22204-22010i1NZFE..NCP11#..CBU200707

main22204-31020i2ZRFE..ZSP110200707-201008

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFE..NCP11#..CBU200707

9009900289

main90099-00289

9011906859

main90119-06859

9048018006

main90480-18006

9167380820

main91673-80820

14 parts on this diagram · 2 diagrams in section
