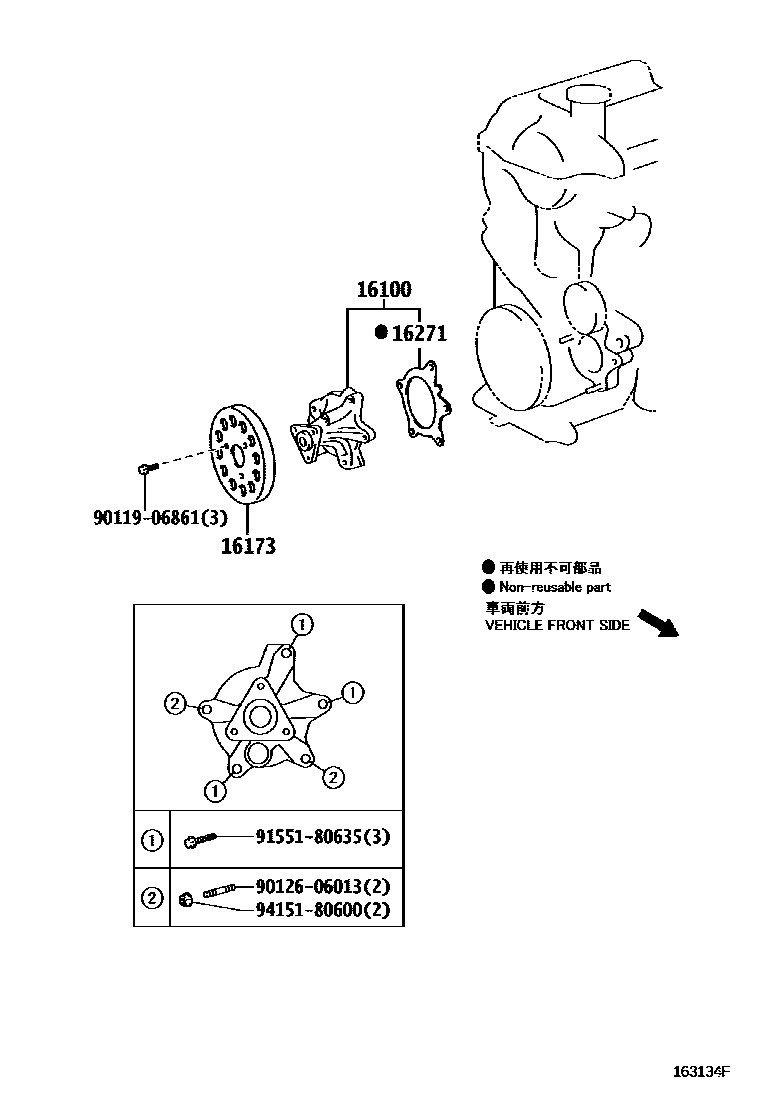

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-29156i1NZFE..NCP11#..CBU200908-201111

main16100-29157i1NZFE..NCP11#..CBU201111

main16100-29206i1NZFE..NCP11#..CBU200707-200907

main16100-39465i2ZRFE..ZSP110200707-200906

main16100-39466i2ZRFE..ZSP110200906-201008

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NCP11#..CBU200707

16271GASKET, WATER PUMP

main16271-21020i1NZFE..NCP11#..CBU200707-201111

main16271-21021i1NZFE..NCP11#..CBU201111

main16271-37010i2ZRFE..ZSP110200707-201008

9011906861

main90119-06861

9012606013

main90126-06013

9155180635

main91551-80635

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
