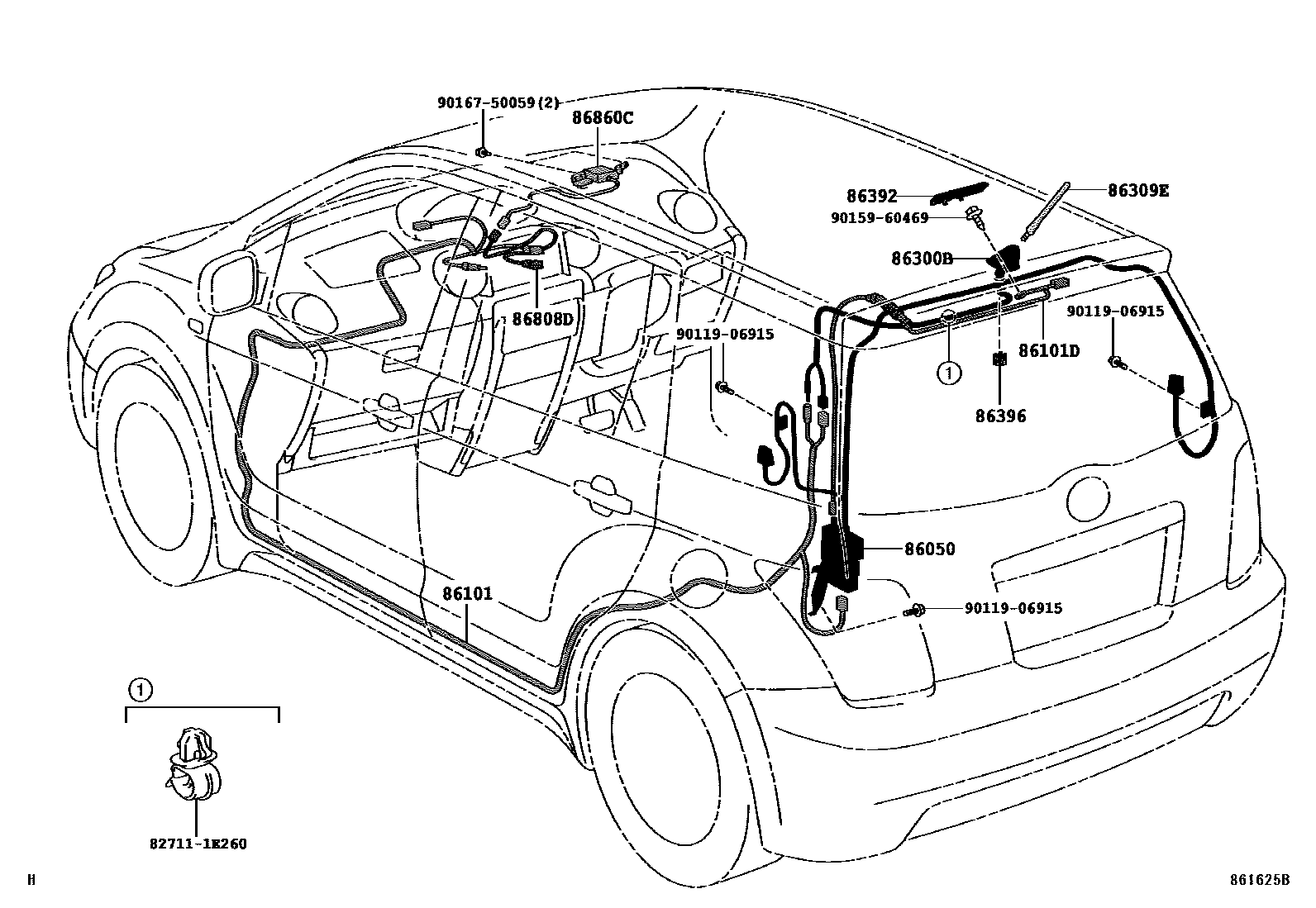

ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-52090iNCP6#; NCP60,65..F200404-200505

86101CORD SUB-ASSY, ANTENNA

main86101-52050iNCP6#200505

main86101-52070iNCP6#..F,S200204-200404

main86101-52370iNCP61,65..AEROS,S200505

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-52080iNCP6#; NCP60,65..F200404-200505

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52070iNCP6#200505

main86300-52270iNCP61,65..AEROS,S200505

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-52030iNCP6#200505

main86309-52070iNCP61,65..AEROS,S200505

86392ORNAMENT, ANTENNA

main86392-52020iNCP60,65..AEROF,F; NCP61,65..AEROS,S200505

86396NUT, ANTENNA

main86396-20040iNCP6#200204-200505

86808DCORD SUB-ASSY, NAVIGATION ANTENNA

main86808-52020iNCP6#..F,S200204-200404

86860CANTENNA ASSY, NAVIGATION

main86860-52050iNCP6#..F,S200204-200404

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9011906915

main90119-06915

9015960469

main90159-60469

9016750059

main90167-50059

13 parts on this diagram · 1 diagram in section
