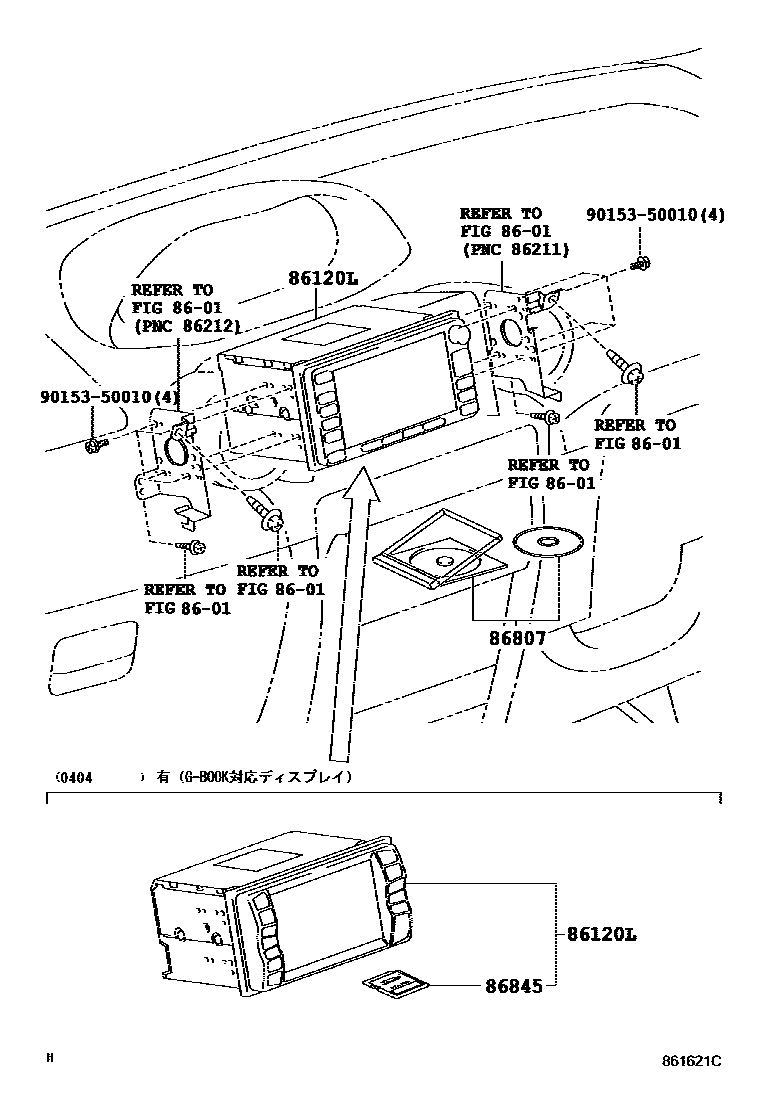

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-52020iNCP61,65..AEROS,S200505-200508

main86100-52021iNCP61,65..AEROS,S200509-200608

main86100-52022iNCP61,65..AEROS,S200609-200707

main86120-52100iNCP60,65..F200306-200307

main86120-52101iNCP60,65..F200307-200404

main86120-52340iNCP6#200204-200404

main86120-52440iNCP6#200404-200505

86807DISC KIT, CD-ROM

main86807-42020iNCP6#..F,S200204-200310

main86807-42021iNCP6#..F,S200310-200404

main86807-52010iNCP60,65..F200306-200404

main86807-52040iNCP6#..F,S200404-200410

main86807-52041iNCP6#200410-200505

main86807-52042iNCP6#..AEROF,F,S200509-200603

main86807-52043iNCP6#..AEROF,F,S200604-200608

main86807-52044iNCP6#..AEROF,F,S200609-200703

main86807-52045iNCP6#..AEROF,F,S200704

86845CARD, NAVIGATION

main86845-52030iNCP6#200404-200505

main86845-52031iNCP61,65..AEROS,S200509-200608

main86845-52032iNCP61,65..AEROS,S200609-200707

9015350010

main90153-50010

5 parts on this diagram · 1 diagram in section
