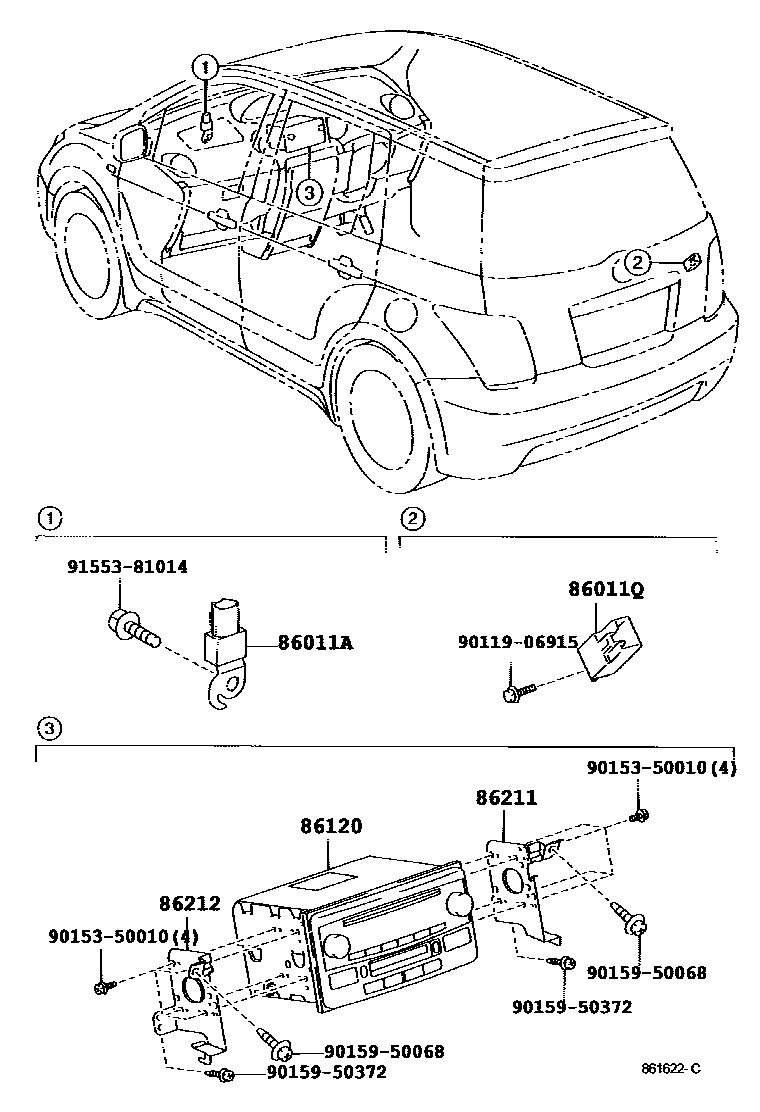

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04141iNCP6#200204-200505

86011QCONDENSER, RADIO SETTING

main90980-04148iNCP6#200505

86120RECEIVER ASSY, RADIO

main86120-52211iNCP6#200505

main86120-52210supersedes 86120-52211iNCP6#200204-200306

86211BRACKET, RADIO, NO.1

main86211-52090iNCP6#200204-200305

main86211-52091iNCP6#200305-200505

86212BRACKET, RADIO, NO.2

main86212-52090iNCP6#200204-200305

main86212-52091iNCP6#200305-200505

9011906915

main90119-06915

9015350010

main90153-50010

9015950068

main90159-50068

9015950372

main90159-50372

9155381014

main91553-81014

10 parts on this diagram · 1 diagram in section
