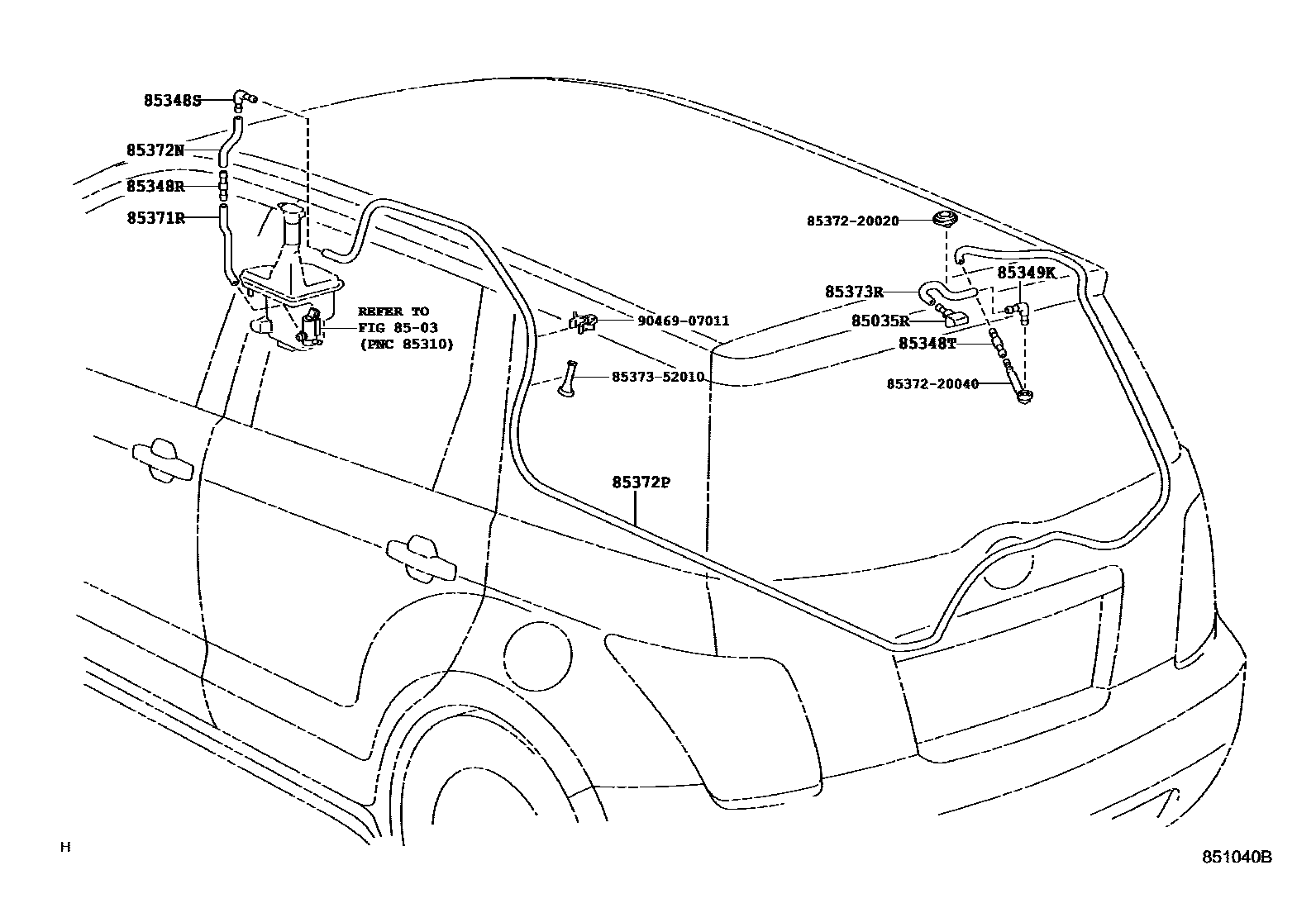

REAR WASHER

0001 1 0002 1

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52010iNCP6#200505-200507

main85391-52120iNCP6#200508

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNCP6#200204-200505

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNCP6#200204-200505

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iNCP6#200204-200505

85349KJOINT, REAR WASHER ELBOW, NO.2

main85377-52210iNCP6#200505

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP6#200204-200505

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iNCP6#200204-200505

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-59065iNCP6#200208-200505

main90099-59245iNCP6#..F,S200204-200208

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNCP6#200505

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-52010

9046907011

main90469-07011

14 parts on this diagram · 2 diagrams in section
