REAR WIPER

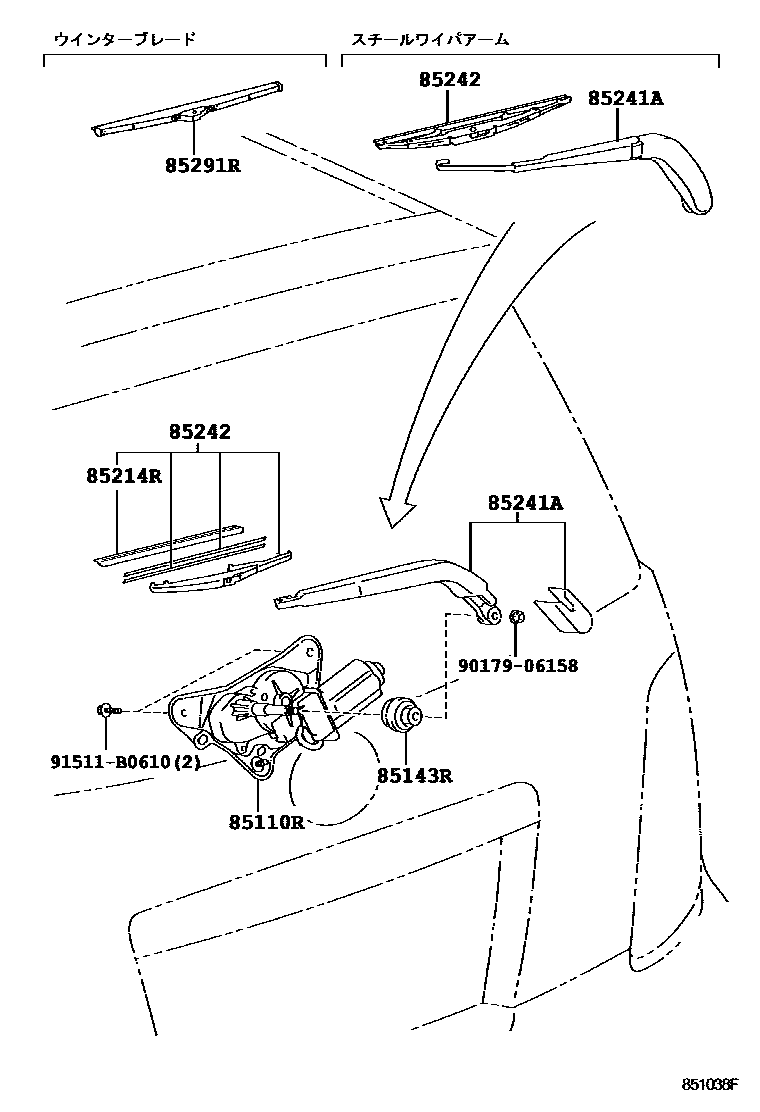

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-52060i200505

85143RGROMMET, REAR WIPER MOTOR

main85143-20700i200204-200505

85214RRUBBER, REAR WIPER

main85214-31010i200204-200505

85241AARM, REAR WIPER

main85241-52050i200204-200304

main85241-52110i200304-200505

main85241-52080i200204-200505

85242BLADE, RR WIPER

main85242-31011supersedes 85242-52040i200505

85291RBLADE,REAR WIPER, WINTER

main85291-33020i200505

main85291-42020i200204-200505

9017906158

main90179-06158

91511B0610

main91511-B0610

8 parts on this diagram · 2 diagrams in section
