AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-0W260supersedes 89170-52580iNCP6#200505

main89170-52260supersedes 89170-52250iNCP6#..F,S200204-200304

89173ASENSOR, AIRBAG, FRONT RH

main89173-59145iNCP6#200204-200505

89174ASENSOR, AIRBAG, FRONT LH

main89174-59085iNCP6#200204-200505

89833SENSOR, AIRBAG, REAR RH

main89831-0W010iNCP6#200505

89834SENSOR, AIRBAG, REAR LH

main89831-0W010iNCP6#200505

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-05010iNCP6#200304-200505

main89860-52040iNCP6#..F,S200204-200209

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-52040iNCP6#..F,S200204-200209

main89831-05010iNCP6#..F,S200209-200304

9014980023

main90149-80023

9155380618

main91553-80618

91553A0810

main91553-A0810

9415080600

main94150-80600

9415180600

main94151-80600

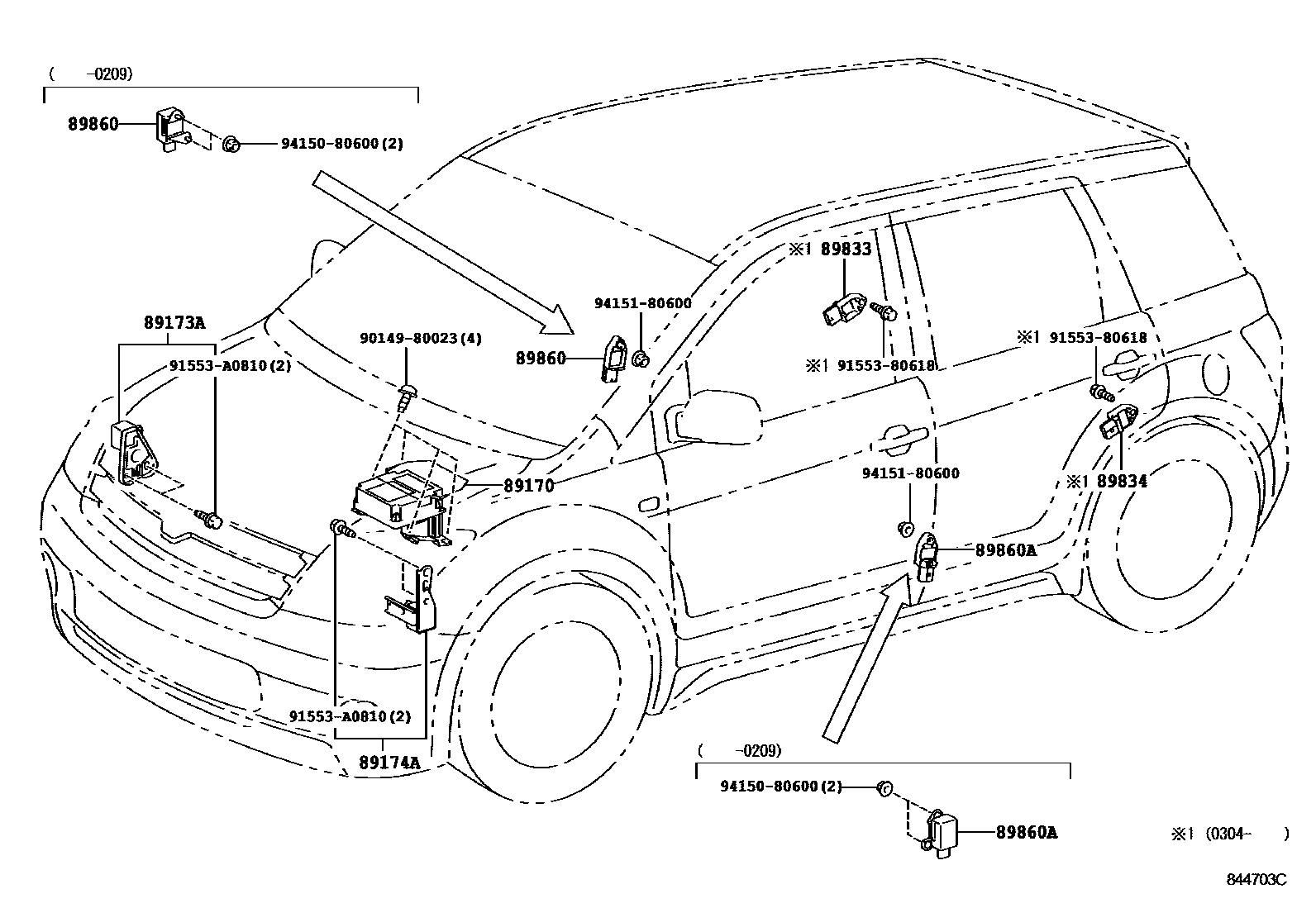

12 parts on this diagram · 1 diagram in section
