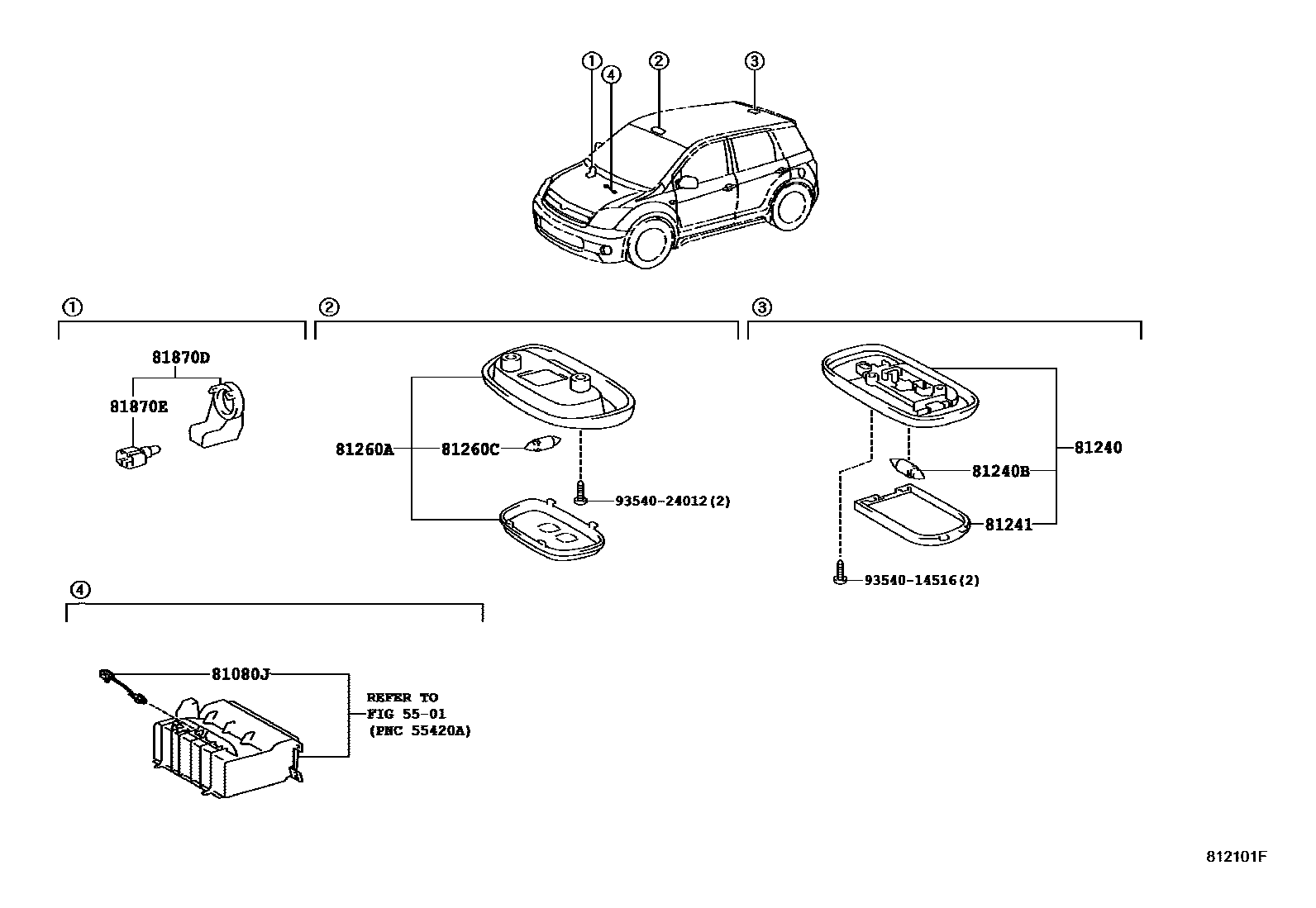

INTERIOR LAMP

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-52020iNCP6#200204-200505

81240LAMP ASSY, ROOM, NO.1

main81240-12060-P0iNCP60,65..F; NCP61,65..S200204-200505

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,9#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP6#200204-200505

81241LENS, ROOM LAMP, NO.1

main81241-12020iNCP6#200204-200505

81260ALAMP ASSY, MAP

main81260-46010-B2iNCP60,65..F; NCP61,65..S200204-200505

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,9#

81260CBULB(FOR MAP LAMP)

main90981-14004iNCP6#200204-200505

81870DLAMP ASSY, KEY CYLINDER

main81870-52020iNCP6#200204-200505

81870EBULB, KEY CYLINDER LAMP

main90010-01030iNCP6#200204-200505

9354014516

main93540-14516

9354024012

main93540-24012

11 parts on this diagram · 1 diagram in section
