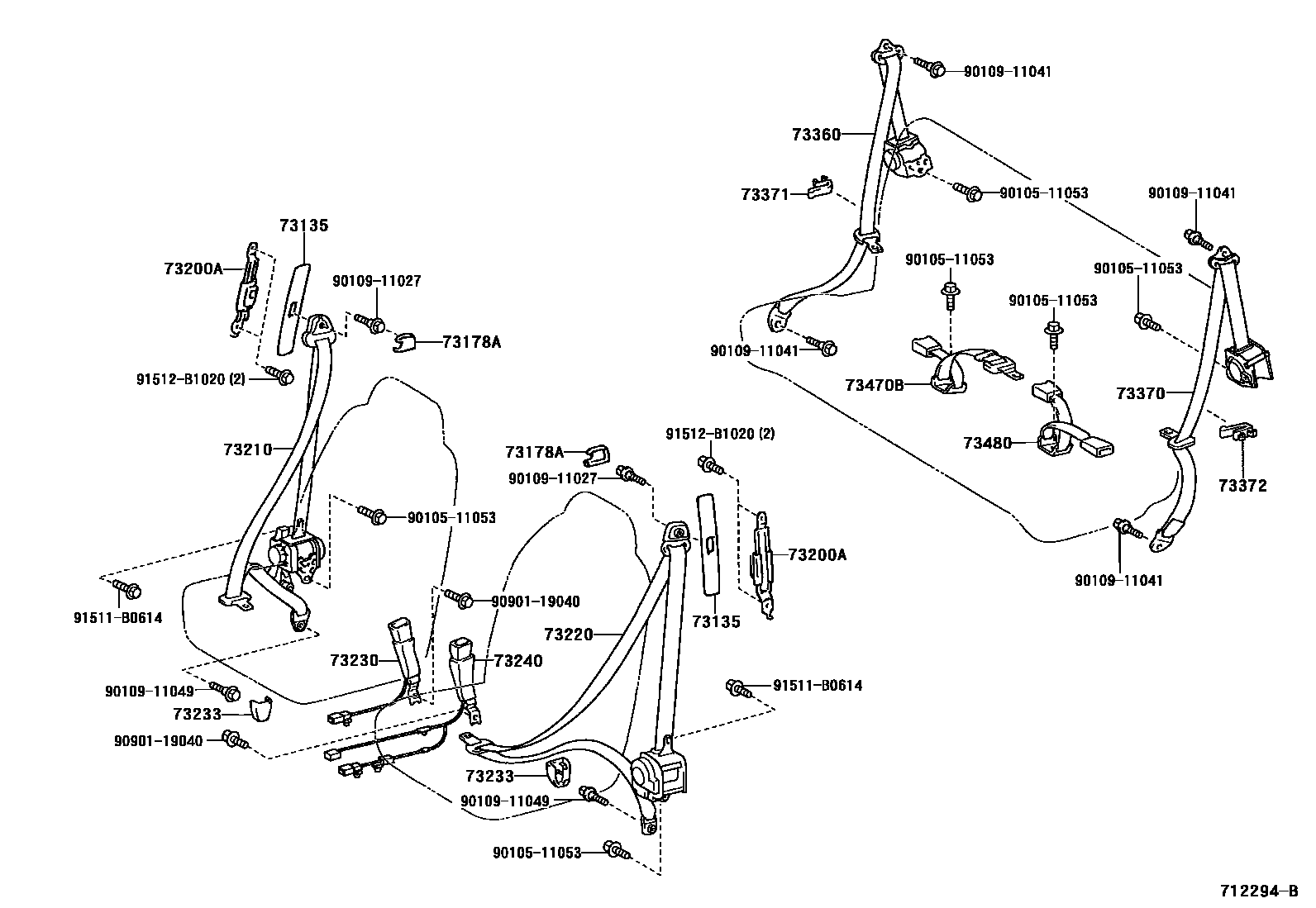

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-12030-B9×2iNCP60,65..F; NCP61,65..S200204-200505

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,9#

main73135-52010-B0×2iNCP60,65..F; NCP61,65..S200304-200505

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-B3×2iNCP60,65..F; NCP61,65..S200204-200304

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,9#

main73178-60020-B1×2iNCP60,65..F; NCP61,65..S200304-200505

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,9#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-60020-B2×2iNCP60,65..F; NCP61,65..S200204-200505

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,9#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52290-C0iNCP60,65..F; NCP61,65..S200204-200304

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73210-52291-C0iNCP60,65..F; NCP61,65..S200304-200505

BLACK,TRIM1#; BLACK,TRIM1#,9#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52330-C0iNCP60,65..F; NCP61,65..S200204-200304

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73220-52331-C0iNCP60,65..F; NCP61,65..S200304-200505

BLACK,TRIM1#; BLACK,TRIM1#,9#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52210-B0iNCP60,65..F; NCP61,65..S200204-200304

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

main73230-52390-B0iNCP60,65..F; NCP61,65..S200304-200505

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-B8×2iNCP60,65..F; NCP61,65..S200204-200505

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-52010-B0iNCP60,65..F; NCP61,65..S200204-200304

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

main73240-52050-B0iNCP60,65..F; NCP61,65..S200304-200505

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-52120-C1iNCP60,65..F; NCP61,65..S200204-200304

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73360-52170-C0iNCP60,65..F; NCP61,65..S200304-200505

BLACK,TRIM1#; BLACK,TRIM1#,9#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-52080-C1iNCP60,65..F; NCP61,65..S200204-200304

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73370-52120-C0iNCP60,65..F; NCP61,65..S200304-200505

BLACK,TRIM1#; BLACK,TRIM1#,9#

73371HANGER, REAR SEAT SHOULDER BELT, RH

main73371-52010-B0iNCP60,65..F200204-200505

LT.GRAY,TRIM9#

main73371-52010-B1iNCP6#200204-200505

DK.GRAY,TRIM1#

73372HANGER, REAR SEAT SHOULDER BELT, LH

main73371-52010-B0iNCP60,65..F200204-200505

LT.GRAY,TRIM9#

main73371-52010-B1iNCP6#200204-200505

DK.GRAY,TRIM1#

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-52030-C1iNCP60; NCP61200204-200304

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73470-52080-C1iNCP65..F; NCP65..S200204-200304

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73470-52150-C1iNCP65..F; NCP65..S200304-200505

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73470-52200-C0iNCP60; NCP61200304-200505

BLACK,TRIM1#; BLACK,TRIM1#,9#

73480BELT ASSY, REAR SEAT INNER W/CENTER, LH

main73480-52030-C1iNCP60; NCP61200204-200304

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73480-52100-C1iNCP65..F; NCP65..S200204-200304

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73480-52160-C1iNCP60; NCP61200304-200505

BLACK,TRIM1#; BLACK,TRIM1#,9#

main73480-52170-C1iNCP65200505-200707

BLACK,TRIM1#

9010511053

main90105-11053

9010911027

main90109-11027

9010911041

main90109-11041

9010911049

main90109-11049

9090119040

main90901-19040

91511B0614

main91511-B0614

91512B1020

main91512-B1020

21 parts on this diagram · 2 diagrams in section
