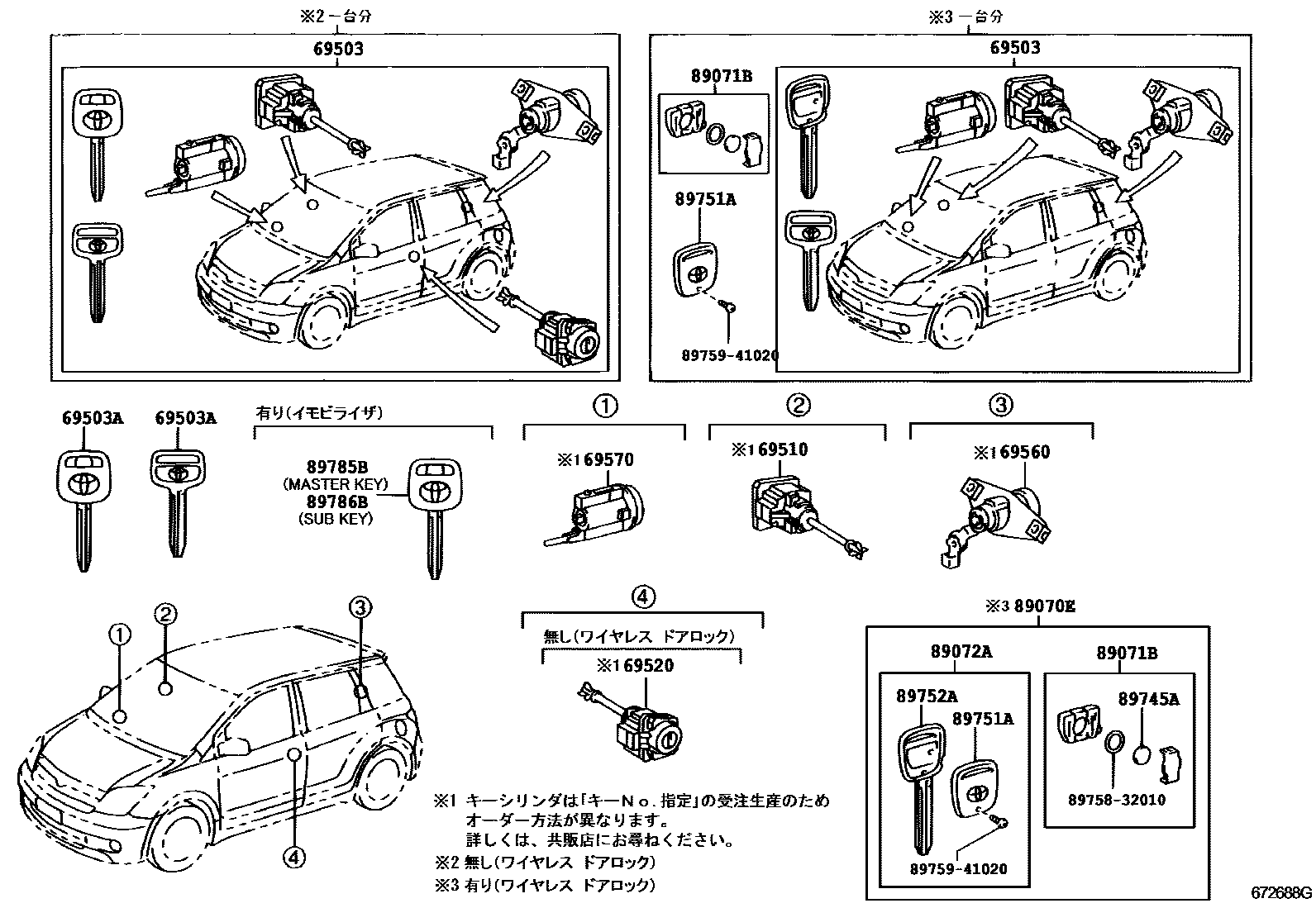

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-52420iNCP6#200505

main69005-52430iNCP60,65..F200204-200505

main69005-52B90iNCP61..S200505

main69005-52D90supersedes 69005-52420iNCP6#..F,S200505

main69005-5C010iNCP60,65..F200408

main69005-5C170iNCP61,65..S200304-200505

69503AKEY, BLANK

main90999-00186iNCP60,65; NCP61200204-200505

main90999-00199iNCP60,65..F200204-200505

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-52130iNCP6#200204-200505

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-52130iNCP60,65..F200204-200505

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-13130iNCP6#200204-200505

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12190iNCP6#200204-200505

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-32080iNCP6#; NCP6#..F,S; NCP61,65..S; NCP61..S200505-200707

main89070-52380iNCP61200505-200707

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32030iNCP6#; NCP6#..F,S; NCP61,65..S; NCP61..S200505-200707

main89071-52060iNCP61200505-200707

main89071-52080iNCP61,65..S200304-200505

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-47020iNCP6#; NCP6#..F,S; NCP61,65..S; NCP61..S200505-200707

89745ABATTERY, TRANSMITTER

main89745-41010iNCP6#; NCP6#..F,S; NCP61,65..S; NCP61..S200505-200707

89751ACOVER, TRANSMITTER HOUSING

main89751-44010iNCP6#; NCP6#..F,S; NCP61,65..S; NCP61..S200505-200707

89752ACASE, TRANSMITTER HOUSING

main89752-46020iNCP6#; NCP6#..F,S; NCP61,65..S; NCP61..S200505-200707

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iNCP61,65..S200304-200505

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iNCP61,65..S200304-200505

8975832010PACKING, DOOR CONTROL TRANSMITTER

main89758-32010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

16 parts on this diagram · 2 diagrams in section
