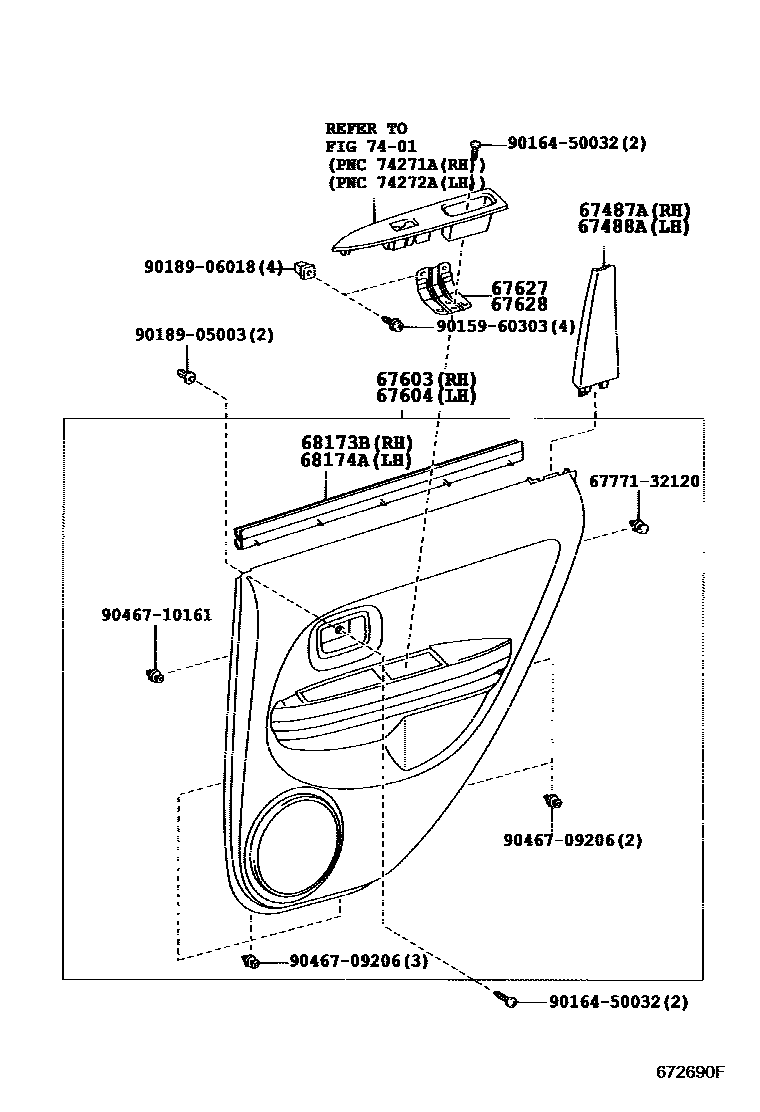

REAR DOOR PANEL & GLASS

0001 1 0002 1

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-52051iNCP6#200505

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-52051iNCP6#200204-200505

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-52450-B0iNCP6#200505-200707

DK. GRAY,TRIM1#

main67630-52450-K0iNCP60,65..F200204-200505

LT. GRAY,TRIM9#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-52460-B0iNCP6#200204-200505

DK. GRAY,TRIM1#

main67640-52460-K0iNCP60,65..F200204-200505

LT. GRAY,TRIM9#

67627BRACKET, REAR DOOR TRIM, RH

main67625-52060iNCP6#200204-200505

67628BRACKET, REAR DOOR TRIM, LH

main67625-52060iNCP6#200204-200505

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-52080iNCP6#200204-200505

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-52080iNCP6#200204-200505

7401ARMREST & VISOR

→ Go to FIG 74-01

6777132120WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32120

9015960303

main90159-60303

9016450032

main90164-50032

9018905003

main90189-05003

9018906018

main90189-06018

9046709206

main90467-09206

9046710161

main90467-10161

16 parts on this diagram · 2 diagrams in section
