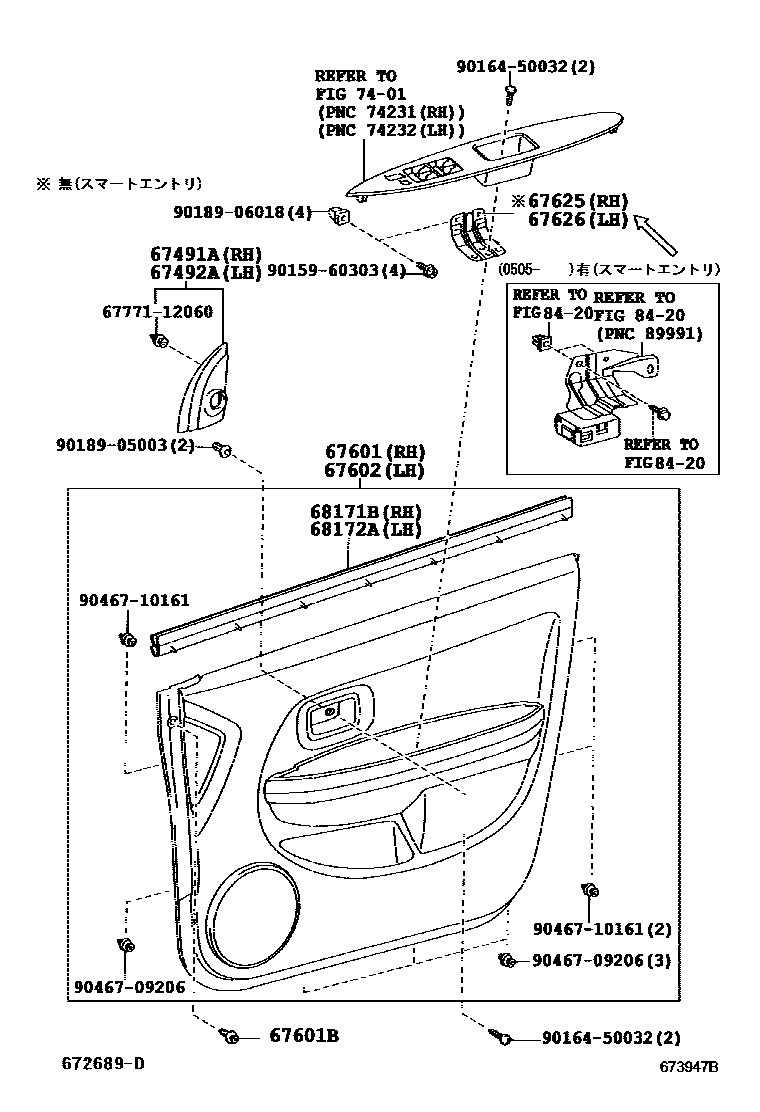

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52080supersedes 67491-52070iNCP6#..AEROF,AEROS; NCP6#..F,S; NCP61,65..S200505

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52080supersedes 67492-52070iNCP6#..AEROF,AEROS; NCP6#..F,S; NCP61,65..S200505

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-5C010-B0iNCP6#200204-200505

DK. GRAY,TRIM1#

main67610-5C010-K0iNCP60,65..F200204-200505

LT. GRAY,TRIM9#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07190-B2×2iNCP6#200204-200505

DK.GRAY,TRIM1#

main90467-07190-B4×2iNCP60,65..F200204-200505

LT.GRAY,TRIM9#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-5C010-B0iNCP6#200505-200707

DK. GRAY,TRIM1#

main67620-5C010-K0iNCP60,65..F200204-200505

LT. GRAY,TRIM9#

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52060iNCP6#200204-200505

67626BRACKET, FRONT DOOR TRIM, LH

main67625-52060iNCP6#200204-200505

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-52110iNCP6#200204-200505

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-52100iNCP6#200204-200505

7401ARMREST & VISOR

→ Go to FIG 74-01

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

6777112060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12060

9015960303

main90159-60303

9016450032

main90164-50032

9018905003

main90189-05003

9018906018

main90189-06018

9046709206

main90467-09206

9046710161

main90467-10161

18 parts on this diagram · 2 diagrams in section
