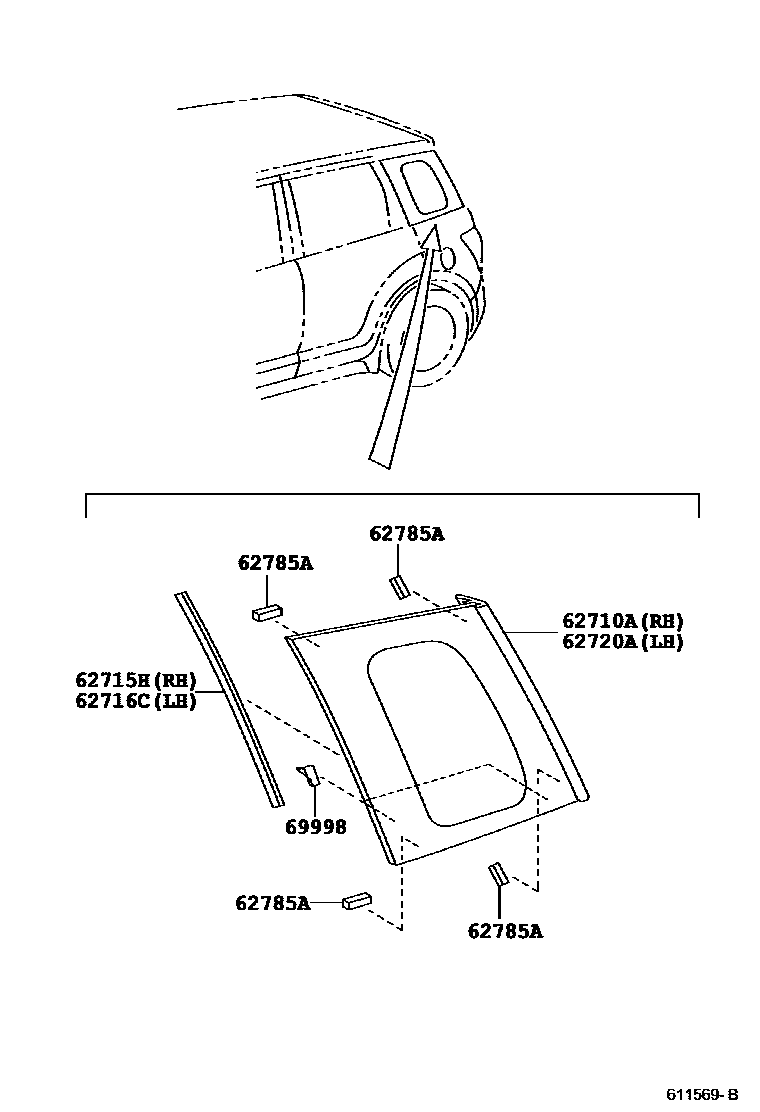

Toyota IST — QUARTER WINDOW
62710AWINDOW ASSY, QUARTER, RH
62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH
62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH
62720AWINDOW ASSY, QUARTER, LH
62785ASPACER, QUARTER WINDOW GLASS
69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1
6 parts on this diagram · 1 diagram in section
QUARTER WINDOW for Toyota IST
This section contains 6 genuine Toyota parts for the QUARTER WINDOW system of the Toyota IST. Key components include: WINDOW ASSY, QUARTER, RH, DAM, QUARTER WINDOW GLASS ADHESIVE, RH, DAM, QUARTER WINDOW GLASS ADHESIVE, LH, WINDOW ASSY, QUARTER, LH, SPACER, QUARTER WINDOW GLASS.
