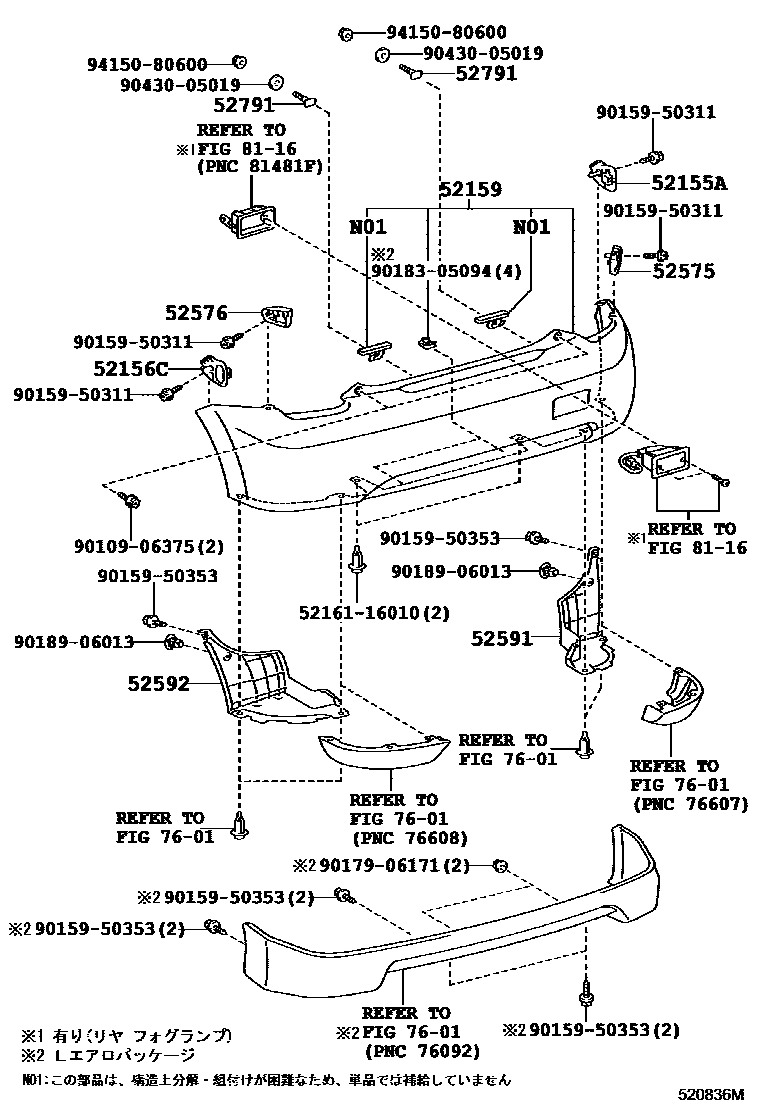

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52040iNCP6#200204-200505

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-52040iNCP6#200204-200505

52159COVER, REAR BUMPER

main52159-52320-B1iNCP6#200304-200505

SILVER M.M.,1E7

main52159-52320-B2iNCP6#200404-200505

GRAY M.M.,1E3

main52159-52320-F0iNCP6#200304-200505

YELLOW PM.,595

main52159-52320-H0iNCP6#200404-200505

LT.AQUA ME.OP.,761

main52159-52570-A2iNCP6#..F,S200605-200707

WHITE PEARL CS.,064

main52159-52570-B1iNCP6#..F,S200505-200707

SILVER M.M.,1E7

main52159-52570-G0iNCP6#..F,S200505-200707

LT.OLIVE ME.,6U4

main52159-52570-J1iNCP6#..F,S200505-200707

LT. BLUE M.M.,8S9

main52159-52580-A1iNCP6#..AEROF,AEROS200505-200707

WHITE,068

main52159-52580-B1iNCP6#..AEROF,AEROS200505-200707

SILVER M.M.,1E7

main52159-52580-C0iNCP6#..AEROF,AEROS200505-200707

BLACK MC.,209

main52159-52580-D0iNCP6#..AEROF,AEROS200505-200707

SUPER RED 5,3P0

main52159-52580-J1iNCP6#..AEROF,AEROS200505-200707

LT. BLUE M.M.,8S9

main52159-52240-A1iNCP61,65..S200404-200505

main52159-52240-B0iNCP61,65..S200404-200505

main52159-52240-B1iNCP61,65..S200404-200505

main52159-52240-C0iNCP61,65..S200404-200505

main52159-52240-D0iNCP61,65..S200404-200505

main52159-52330-A0supersedes 52159-52570-A1iNCP6#200204-200304

main52159-52330-A1supersedes 52159-52570-A0iNCP6#200204-200304

main52159-52330-B0supersedes 52159-52320-B0iNCP6#200204-200304

main52159-52330-C0supersedes 52159-52570-C0iNCP6#200204-200304

main52159-52330-D0supersedes 52159-52570-D0iNCP6#200204-200304

main52159-52330-E0supersedes 52159-52320-E0iNCP6#200204-200304

main52159-52330-H0iNCP6#..F,S200212-200303

main52159-52330-J0supersedes 52159-52570-J0iNCP6#200204-200304

main52159-52330-J1supersedes 52159-52320-J1iNCP6#200204-200304

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52060iNCP6#200204-200409

main52575-52061iNCP6#200410-200505

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52040iNCP6#200204-200409

main52576-52041iNCP6#200410-200505

52591SEAL, REAR BUMPER SIDE, RH

main52591-52090iNCP6#200204-200403

main52591-52091iNCP6#200404-200505

main52591-52210iNCP6#..AEROF,AEROS200505

52592SEAL, REAR BUMPER SIDE, LH

main52592-52080iNCP6#200204-200403

main52592-52081iNCP6#200404-200505

main52592-52200iNCP6#..AEROF,AEROS200505

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040×2iNCP6#200204-200505

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8116REAR FOG LAMP

→ Go to FIG 81-16

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010906375

main90109-06375

9015950311

main90159-50311

9015950353

main90159-50353

9017906171

main90179-06171

9018305094

main90183-05094

9018906013

main90189-06013

9043005019

main90430-05019

9415080600

main94150-80600

19 parts on this diagram · 2 diagrams in section
