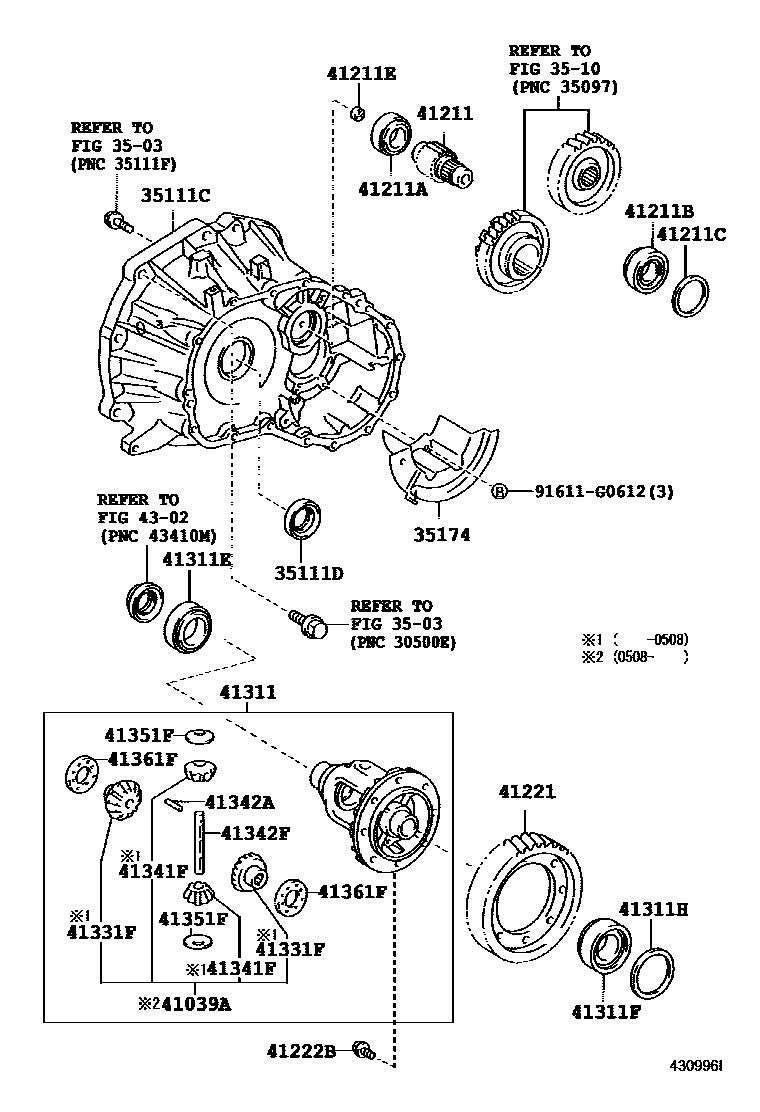

FRONT AXLE HOUSING & DIFFERENTIAL
3503
3510
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
35174SEPARATOR, TRANSAXLE HOUSING OIL
41211PINION, DIFFERENTIAL DRIVE
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
sub90564-42080
sub90564-42081
sub90564-42082
sub90564-42083
sub90564-42084
sub90564-42085
sub90564-42086
sub90564-42087
sub90564-42088
sub90564-42089
sub90564-42090
sub90564-42091
sub90564-42092
sub90564-42093
sub90564-42094
sub90564-42095
sub90564-42096
sub90564-42097
sub90564-42098
sub90564-42099
sub90564-42100
sub90564-42101
sub90564-42102
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
4302
91611G0612
main91611-G0612
25 parts on this diagram · 2 diagrams in section
