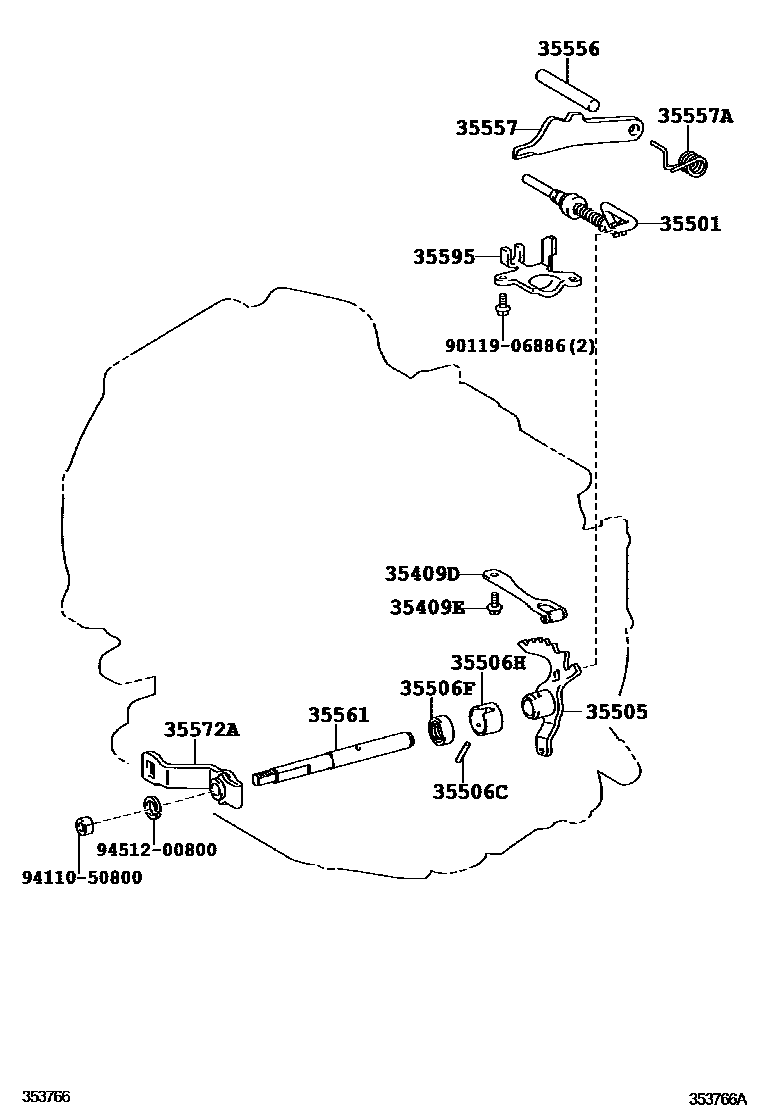

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U441E 0002 1U340E,U340F

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-52010iNCP60200204-200505

main35409-52020iNCP61,65200204-200505

35409EBOLT(FOR MANUAL DETENT SPRING)

main90105-06053iNCP60200204-200505

35501ROD SUB-ASSY, PARKING LOCK

main35501-52010iNCP60200204-200505

main35501-52020iNCP61,65200505

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-52010iNCP60200204-200504

main35505-52020iNCP61,65200505

main35505-52050iNCP60200504-200505

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iNCP6#200204-200505

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iNCP6#200204-200505

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iNCP60200204-200505

35556SHAFT, PARKING LOCK PAWL

main35556-32020iNCP61,65200204-200505

main35556-52010iNCP60200505

35557PAWL, PARKING LOCK

main35557-52010iNCP60200505

main35557-52020iNCP61,65200505

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03084iNCP60200204-200505

main90949-03089iNCP61,65200204-200505

35561SHAFT, MANUAL VALVE LEVER

main35561-52010iNCP60200505

main35561-52020iNCP61,65200204-200505

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-52020iNCP60200204-200505

main35572-52040iNCP61,65200204-200505

35595BRACKET, PARKING LOCK PAWL

main35595-52010iNCP60200204-200505

main35595-52020iNCP61,65200204-200505

9011906886

main90119-06886

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
