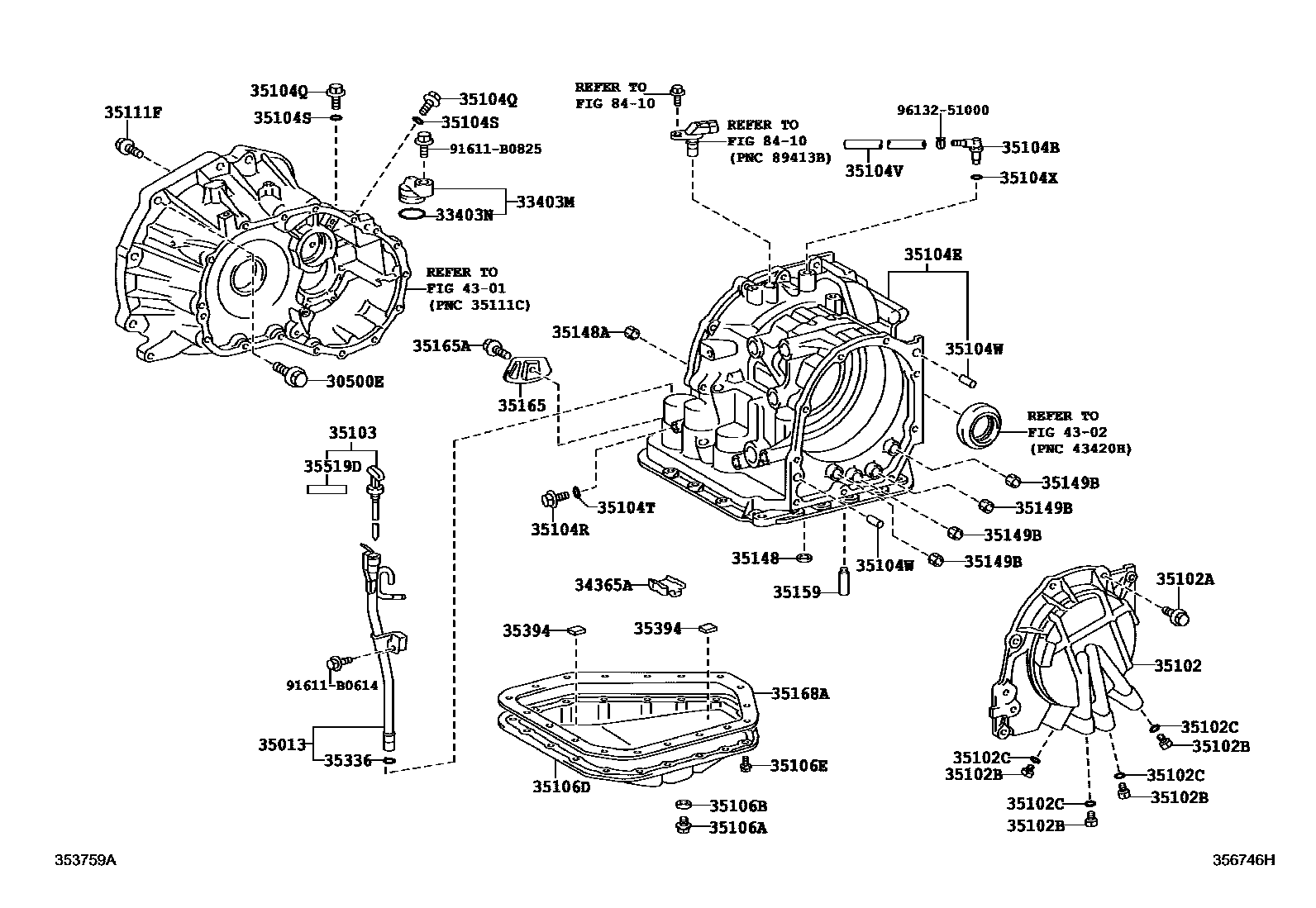

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U441E 0002 1U441E 0003 1U340E,U340F

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91612-61045×7iNCP6#200603-200707

main91612-61050×7iNCP6#200505-200603

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iNCP61200204-200505

main33403-35230iNCP60200505-200707

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iNCP61200505

main96711-24030iNCP60200204-200505

34365ARETAINER, OUTER RACE

main34365-52012iNCP61,65200505

main34365-52020iNCP60200505

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-52020iNCP60200204-200505

main35013-52021iNCP60200507

main35013-52040iNCP61,65200204-200505

main35013-52041iNCP61,65200505

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-52020iNCP61,65200204-200505

main35102-52030iNCP60200204-200505

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08365×11iNCP61,65200204-200505

main90105-08375×9iNCP60200505

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iNCP6#200204-200505

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iNCP6#200204-200505

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-52020iNCP60200204-200505

main35103-52050iNCP61,65200505

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03156iNCP60200505

main90930-03166iNCP61,65200505

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-52020iNCP60200505

main35104-52030iNCP61,65200204-200502

main35104-52031iNCP61,65200502-200505

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×2iNCP6#200204-200505

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001×3iNCP60; NCP61,65200505-200707

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×2iNCP60; NCP61,65200204-200505

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196iNCP60200505-200707

35104VHOSE (FOR BREATHER PLUG)

main90447-11043iNCP61,65200204-200505

main90447-11044iNCP60200204-200505

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2iNCP61,65200204-200505

main90250-10034×4iNCP60200505

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iNCP61,65200505

main90301-08015iNCP60200204-200505

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iNCP60200204-200505

main90341-18016iNCP61,65200505

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iNCP60200204-200505

main90430-18008iNCP61,65200204-200505

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-52010iNCP60200204-200505

main35106-52020iNCP61,65200204-200505

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iNCP60; NCP61,65200505-200707

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08071×14iNCP60; NCP61,65200204-200505

35148GASKET, GOVERNOR APPLY, NO.1

main35145-60020iNCP60200305-200505

main35148-16010iNCP60..F200204-200305

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010iNCP60200505

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-12020×4iNCP60200204-200505

main35149-21010iNCP61,65200204-200505

35159GASKET, BRAKE DRUM

main35159-21010iNCP61,65200204-200505

main35159-52010iNCP60200505

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52010iNCP60200505

main35165-52030iNCP61,65200505

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iNCP60200505

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-52010iNCP60200204-200505

main35168-52020iNCP61,65200204-200505

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iNCP6#200204-200505

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iNCP60..F200204-200407

main35394-48010×2iNCP60200505

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iNCP60200204-200505

main35519-52010iNCP61,65200505

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

91611B0614

main91611-B0614

91611B0825

main91611-B0825

9613251000

main96132-51000

40 parts on this diagram · 3 diagrams in section
