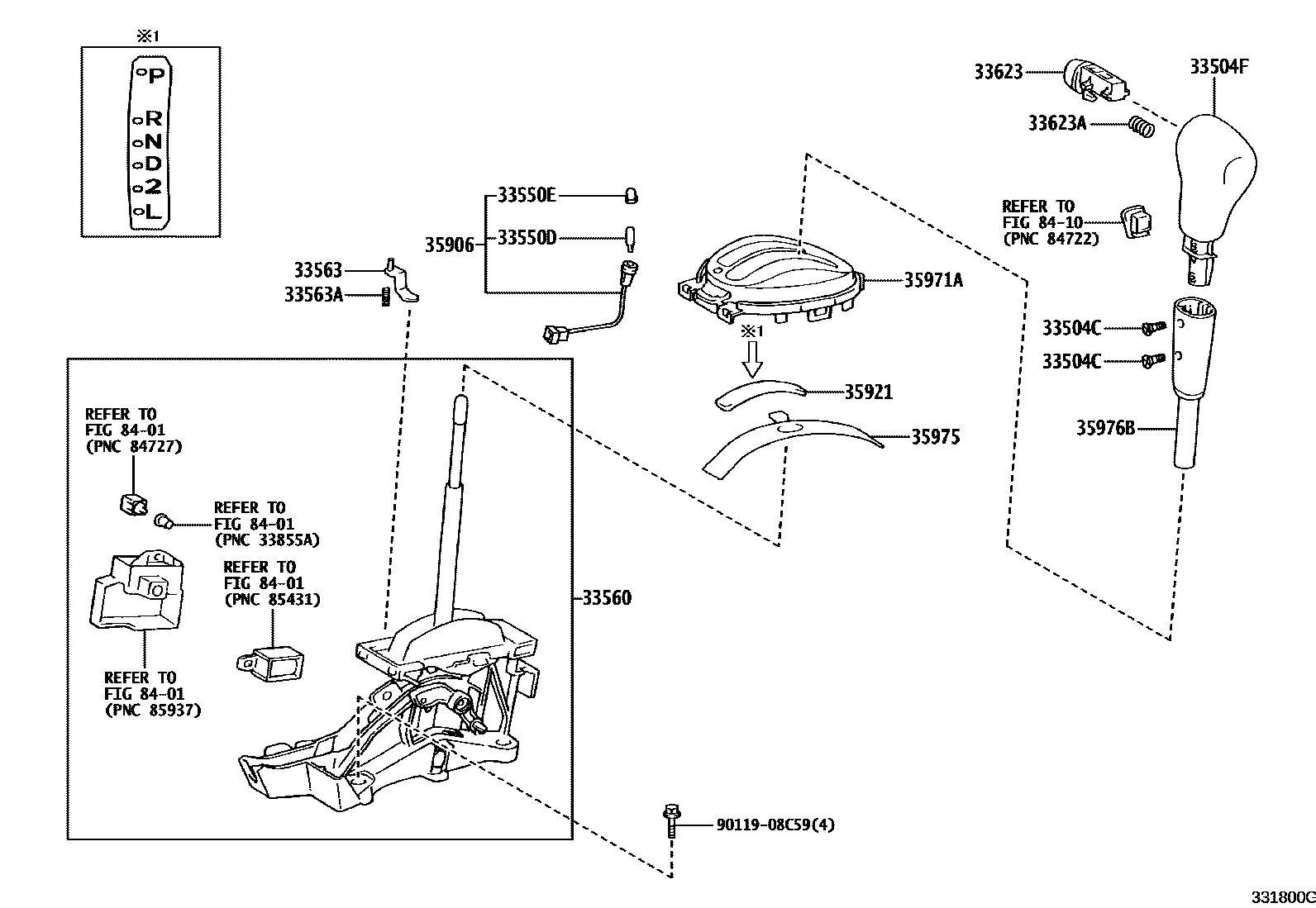

SHIFT LEVER & RETAINER

0001 1 0002 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221×2iNCP6#200505

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-52070-B0iNCP60,65..F; NCP61,65..S200204-200505

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

main33542-52071-B0iNCP6#200505-200707

DK.GRAY,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iNCP6#200204-200505

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iNCP6#200204-200505

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52010iNCP6#200204-200505

33563BUTTON, SHIFT LOCK RELEASE

main33563-52030iNCP6#200204-200505

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iNCP6#200204-200505

33623BUTTON, SHIFT LEVER KNOB

main33623-52060-B0iNCP60,65..F; NCP61,65..S200204-200505

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iNCP6#200505

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52010iNCP6#200204-200505

35921PLATE, CONTROL POSITION INDICATOR

main35921-52010iNCP6#200204-200505

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52110iNCP6#200204-200505

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52030iNCP6#200204-200505

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-52060-B0iNCP60,65..F; NCP61,65..S200204-200505

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011908C59

main90119-08C59

17 parts on this diagram · 2 diagrams in section
