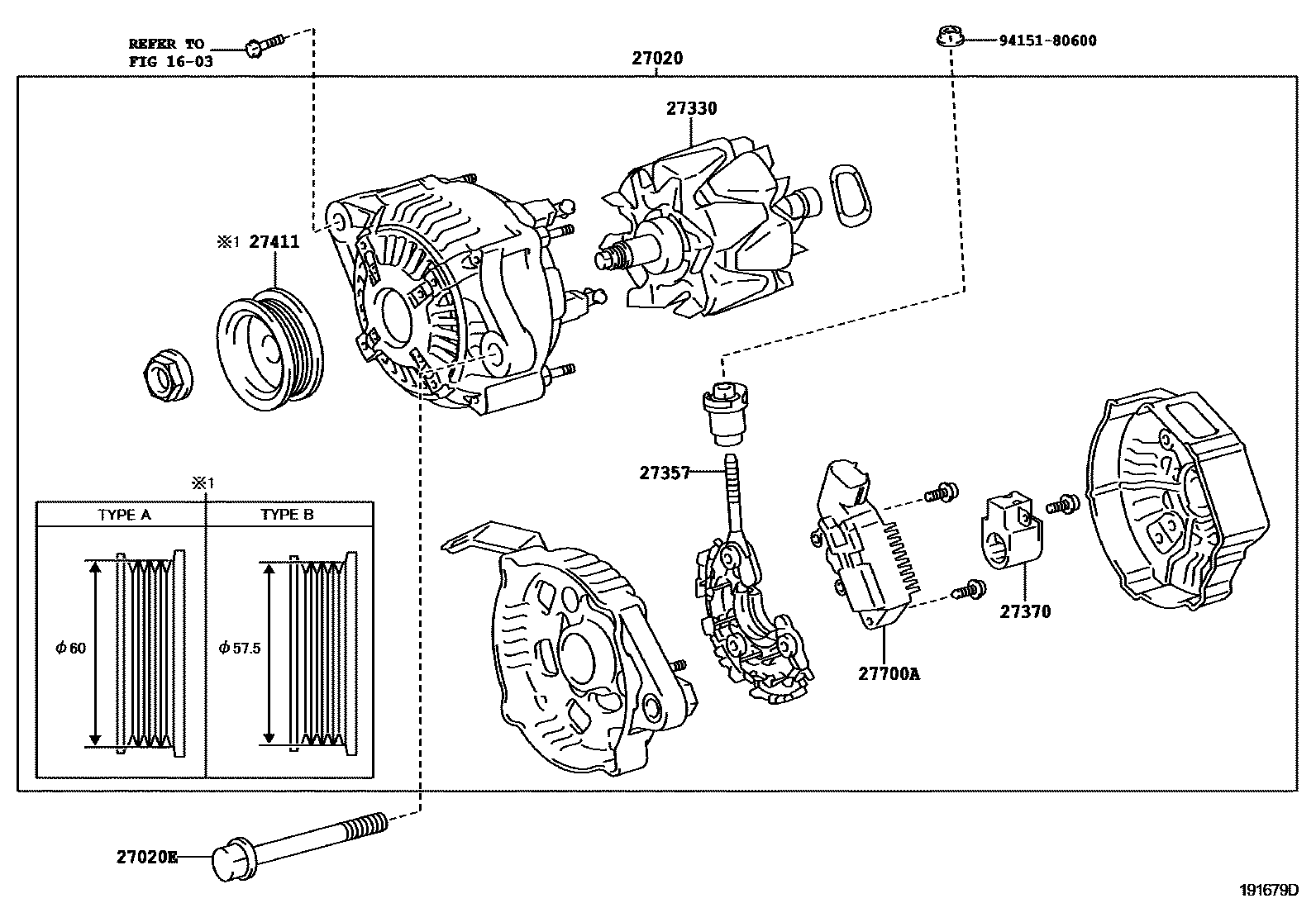

ALTERNATOR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

27020ALTERNATOR ASSY

main27060-21110supersedes 27060-21101i1NZFE,2NZFE..NCP60,65..F; 1NZFE..NCP61,65..S200204-200305

main27060-21111supersedes 27060-21101i1NZFE,2NZFE..NCP60,65..AEROF; 1NZFE,2NZFE..NCP60,65..AEROF,F; 1NZFE,2NZFE..NCP60,65..F; 1NZFE..NCP61,65..AEROS,S200505

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NZFE,2NZFE..NCP6#200505

27330ROTOR ASSY, ALTERNATOR

main27330-16390supersedes 27330-67100i1NZFE,2NZFE..NCP60,65..F; 1NZFE..NCP61,65..S200204-200505

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050supersedes 27357-21060i1NZFE,2NZFE..NCP60,65..F; 1NZFE..NCP61,65..S200204-200505

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060supersedes 27370-35060i1NZFE,2NZFE..NCP60,65..F; 1NZFE..NCP61,65..S200204-200505

27411PULLEY, ALTERNATOR

main27411-11060supersedes 27411-70140i1NZFE,2NZFE..NCP60,65..F; 1NZFE..NCP61,65..S200204-200305

main27411-21030supersedes 27411-70140i1NZFE,2NZFE..NCP60,65..F; 1NZFE..NCP61,65..S200305-200505

27700AREGULATOR ASSY, GENERATOR

main27700-21040i1NZFE,2NZFE..NCP6#200204-200505

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
