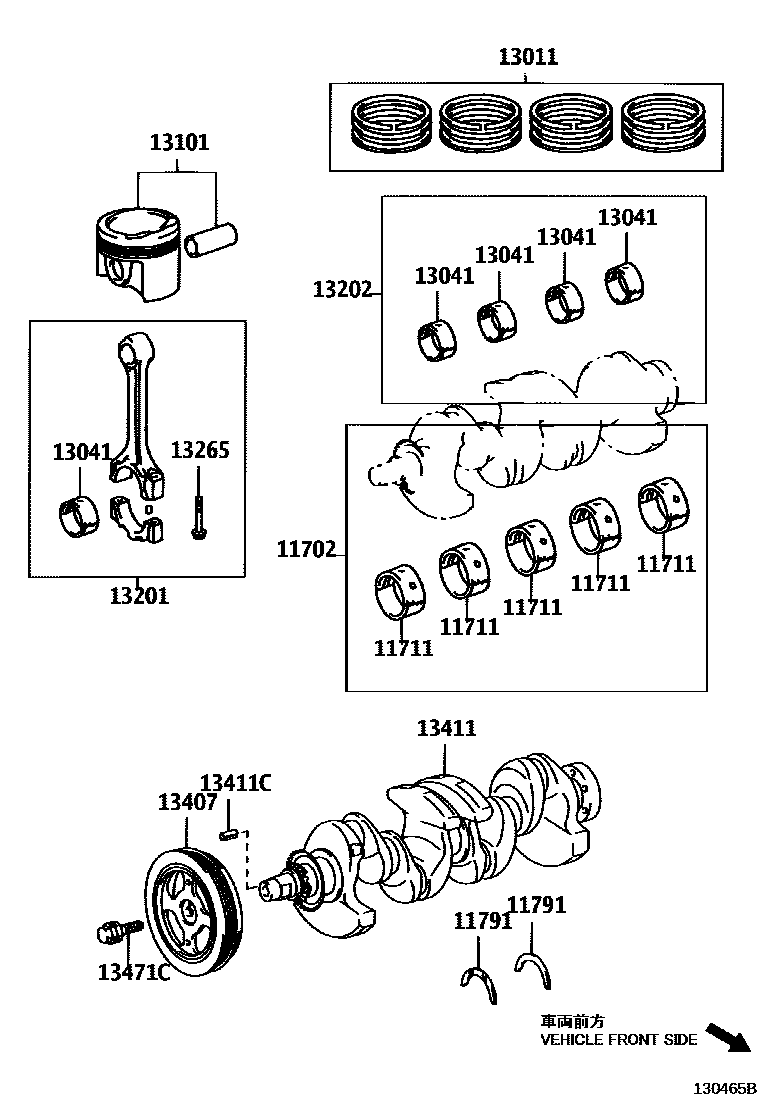

CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-21010i1NZFE,2NZFE..NCP6#200204-200308

main11704-21031i1NZFE,2NZFE..NCP6#200408-200505

main11704-21040i1NZFE,2NZFE..NCP6#200308-200408

11711BEARING, CRANKSHAFT

main11701-21010-01i1NZFE,2NZFE..NCP6#200204-200308

main11701-21010-02i1NZFE,2NZFE..NCP6#200204-200308

main11701-21010-03i1NZFE,2NZFE..NCP6#200204-200308

main11701-21010-04i1NZFE,2NZFE..NCP6#200204-200308

main11701-21031-01i1NZFE,2NZFE..NCP6#200408-200505

main11701-21031-02i1NZFE,2NZFE..NCP6#200408-200505

main11701-21031-03i1NZFE,2NZFE..NCP6#200408-200505

main11701-21031-04i1NZFE,2NZFE..NCP6#200408-200505

main11701-21040-01i1NZFE,2NZFE..NCP6#200308-200408

main11701-21040-02i1NZFE,2NZFE..NCP6#200308-200408

main11701-21040-03i1NZFE,2NZFE..NCP6#200308-200408

main11701-21040-04i1NZFE,2NZFE..NCP6#200308-200408

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020i1NZFE,2NZFE..NCP6#200204-200707

main11791-37010i1NZFE,2NZFE..NCP6#200408-200505

main11792-21010i1NZFE,2NZFE..NCP6#200204-200312

main11792-22020i1NZFE,2NZFE..NCP6#200505-200707

main11792-22020i1NZFE,2NZFE..NCP6#200312-200505

main11793-21010i1NZFE,2NZFE..NCP6#200204-200312

main11793-22020i1NZFE,2NZFE..NCP6#200505-200707

main11793-22020i1NZFE,2NZFE..NCP6#200312-200505

13011RING SET, PISTON

main13011-21041i1NZFE..NCP61,65200204-200505

main13011-21050i2NZFE..NCP60200204-200505

13041BEARING, CONNECTING ROD

main13041-21022-01i1NZFE,2NZFE..NCP6#200408-200505

main13041-21022-01i1NZFE,2NZFE..NCP6#200505

main13041-21022-02i1NZFE,2NZFE..NCP6#200505

main13041-21022-02i1NZFE,2NZFE..NCP6#200408-200505

main13041-21022-03i1NZFE,2NZFE..NCP6#200505

main13041-21022-03i1NZFE,2NZFE..NCP6#200408-200505

main13041-21030-01i1NZFE,2NZFE..NCP6#200204-200309

main13041-21030-02i1NZFE,2NZFE..NCP6#200204-200309

main13041-21030-03i1NZFE,2NZFE..NCP6#200204-200309

main13041-21031-01i1NZFE,2NZFE..NCP6#200309-200408

main13041-21031-02i1NZFE,2NZFE..NCP6#200309-200408

main13041-21031-03i1NZFE,2NZFE..NCP6#200309-200408

13101PISTON SUB-ASSY, W/PIN

main13101-21070i1NZFE..NCP61,65200204-200505

main13101-21080i2NZFE..NCP60200204-200505

13201ROD SUB-ASSY, CONNECTING

main13201-29095i1NZFE..NCP61,65200204-200312

main13201-29115i2NZFE..NCP60200204-200312

main13201-29425i1NZFE..NCP61,65200312-200408

main13201-29715i2NZFE..NCP60200312-200505

main13201-29735i1NZFE..NCP61,65200408-200505

13202BEARING SET, CONNECTING ROD

main13204-21022i1NZFE,2NZFE..NCP6#200408-200505

main13204-21030i1NZFE,2NZFE..NCP6#200204-200309

main13204-21031i1NZFE,2NZFE..NCP6#200312-200408

13265BOLT, CONNECTING ROD

main13265-21020i1NZFE,2NZFE..NCP6#200204-200505

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21020i1NZFE,2NZFE..NCP6#200204-200505

13411CRANKSHAFT

main13401-21020i1NZFE..NCP61,65200204-200505

main13401-21030i2NZFE..NCP60200204-200505

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i1NZFE,2NZFE..NCP6#200204-200505

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NZFE,2NZFE..NCP6#200204-200505

13 parts on this diagram · 1 diagram in section
